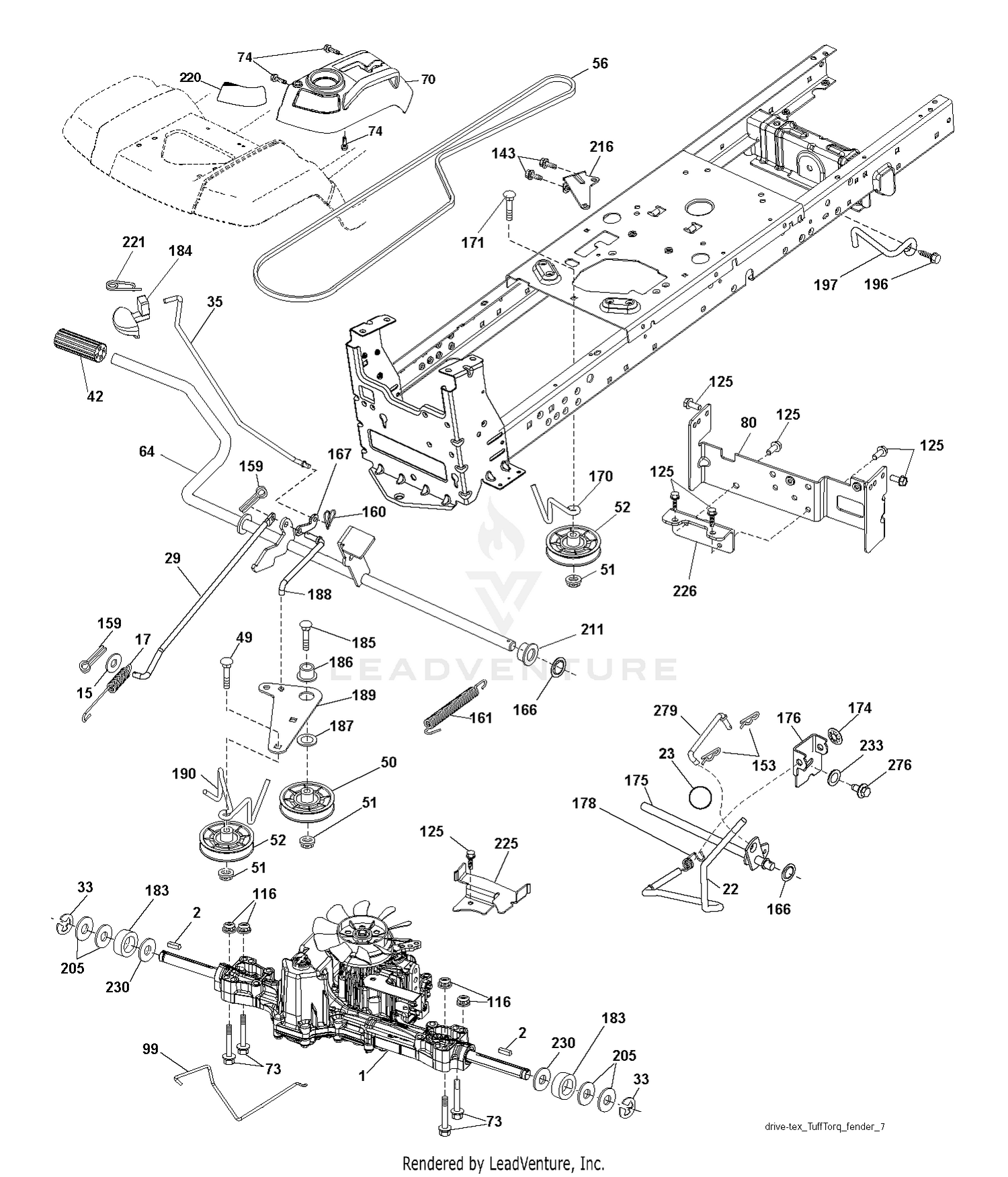

| Ref | Part Number | Description |
|---|
| 1 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 3 |
79-2000 |
KEY-SQUARE Price: $3.69 |
| 4 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
32128-49 |
NUT-HHF Price: $1.04 |
| 13 |
325-20 |
SCREW-HH Price: $6.29 |
| 14 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 17 |
3219-3 |
NUT-HEX Price: $0.34 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 19 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 20 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 21 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 93-4440. Price: $337.37 |
| 22 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
532197329 |
ROD.SHIFT.FENDER.STGT. Price: $74.99 |
| 23 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 24 |
56-6210 |
BEARING Price: $90.04 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 26 |
3217-8 |
NUT-HEX Price: $1.34 |
| 27 |
13-2680 |
BUSHING Price: $217.68 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
322-7 |
SCREW-HH Price: $0.89 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 32 |
13-0600 |
IDLER ASM Price: $783.75 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 33 |
93-7706 |
TUBE-SPACER Price: $30.07 |
| 34 |
3218-5 |
NUT-JAM Price: $0.27 |
| 35 |
3244-21 |
SCREW-SQH Price: $10.59 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 36 |
250-5 |
TIE-CABLE Price: $5.19 |
| 37 |
3339-175 |
STRAPPING-WEB This part replaces 94-1445. Price: $18.99 |
| 38 |
106-5190 |
BATTERY This part replaces 55-7290. Price: $170.85 |
| 39 |
93-7595 |
BATTERY BOX ASM Price: $83.58 |
| 40 |
119-6807 |
DECAL-WARNING This part replaces 61-5950. Price: $7.37 |
| 41 |
13-0480 |
SPRING Price: $30.51 |
| 42 |
13-3990-01 |
HANDLE-TRIP Price: $189.07 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 44 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 45 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 46 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 47 |
13-6790 |
BATTERY CABLE Price: $115.82 |
| 48 |
112-6808 |
CABLE-BATTERY, POSITIVE Price: $70.12 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 53 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 55 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 56 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 57 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 58 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 61 |
93-4409-01 |
TONGUE WA This part replaces 93-4409. Price: $481.19 |
| 62 |
327-6 |
SCREW-HH Price: $12.99 |
| 63 |
322-7 |
SCREW-HH Price: $0.89 |
| 64 |
13-2670-01 |
SHEAVE Price: $1,182.76 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 65 |
108-0891-01 |
MOUNT-GUARD Price: $156.48 |
| 66 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 67 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033-01. Price: $163.75 |
| 68 |
13-3710 |
WASHER Price: $3.05 |
| 70 |
532439660 |
SUBASM.CONSOLE.HUSQ.GT.HYDRO This part replaces 532400298. Price: $79.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532428305. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532406208 |
SHAFT ASM SHIFT Price: $22.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 233 |
596135201 |
Washers This part replaces 532405296. Price: $2.99 |
| 276 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 279 |
532406207 |
LINK.SHIFT.T/A.K46.FEND.TX Price: $9.99 |
