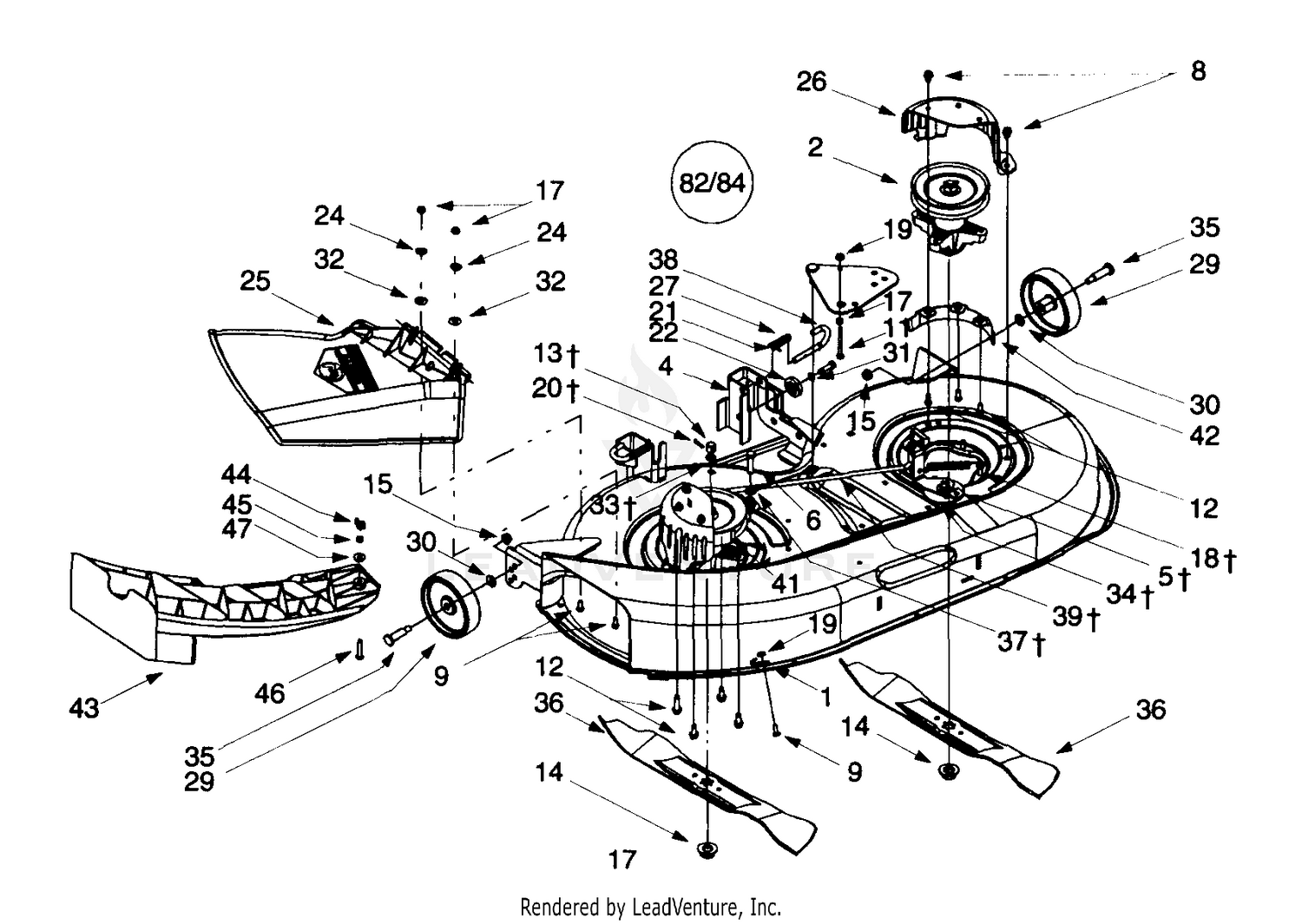

| Ref | Part Number | Description |
|---|
| 1 |
96606 |
Retainer Hook Bracket This part replaces 16606. Price: $6.71 |
| 2 |
918-04197B |
PULLEY & SPINDLE ASSEMBLY 5.75" W/O FTG This part replaces 618-0324. Price: $138.69 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254. Price: |
| 6 |
710-0520 |
Hex Cap Screw, 3/8-16 x 1.5 Price: $3.93 |
| 8 |
710-0604A |
Self-tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 9 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 11 |
710-1122 |
Hex Cap Screw, 1/4-20 x 2.5 Price: $6.32 |
| 12 |
710-1260A |
Self-tapping Screw, 5/16-18 x .75 Price: $3.34 |
| 13 |
911-0677 |
Ferrule This part replaces 711-0677. Price: $15.59 |
| 14 |
712-0417A |
HEX NUT Price: $6.50 |
| 15 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 17 |
712-3006 |
HEX NUT Price: $4.05 |
| 18 |
712-3009 |
Hex Lock Nut, 5/16-18 Price: $5.99 |
| 19 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 21 |
714-0111 |
Cotter Pin, 3/32 x 1.0 Price: $4.20 |
| 22 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-1553A. Price: $11.45 |
| 24 |
726-0233 |
Push Nut. .25 x.5 Price: $3.93 |
| 25 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 26 |
731-2231B |
Belt Cover This part replaces 731-2231A. Price: $40.56 |
| 27 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 29 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 30 |
736-0105 |
Bell Washer, .401 x .87 x .063 Price: $3.96 |
| 31 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 32 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 34 |
736-0416 |
FLAT WASHER .323 ID x 3 x .125 Not Available Price: |
| 35 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 36 |
942-0616A |
Blades This part replaces 7420616. Price: $29.15 |
| 38 |
747-1116 |
Deck Release Pin Price: $11.17 |
| 41 |
783-1026 |
BELT GUARD BRACKET (RH) Not Available Price: |
| 42 |
783-1027A-0637 |
BELT GUARD BRACKET (LH) Not Available This part replaces 783-1027. Price: |
| 43 |
OEM-190-116 |
Mulch Kit This part replaces 7311643A. Price: $89.03 |
| 44 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 45 |
712-3006 |
HEX NUT Price: $4.05 |
| 46 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 47 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
