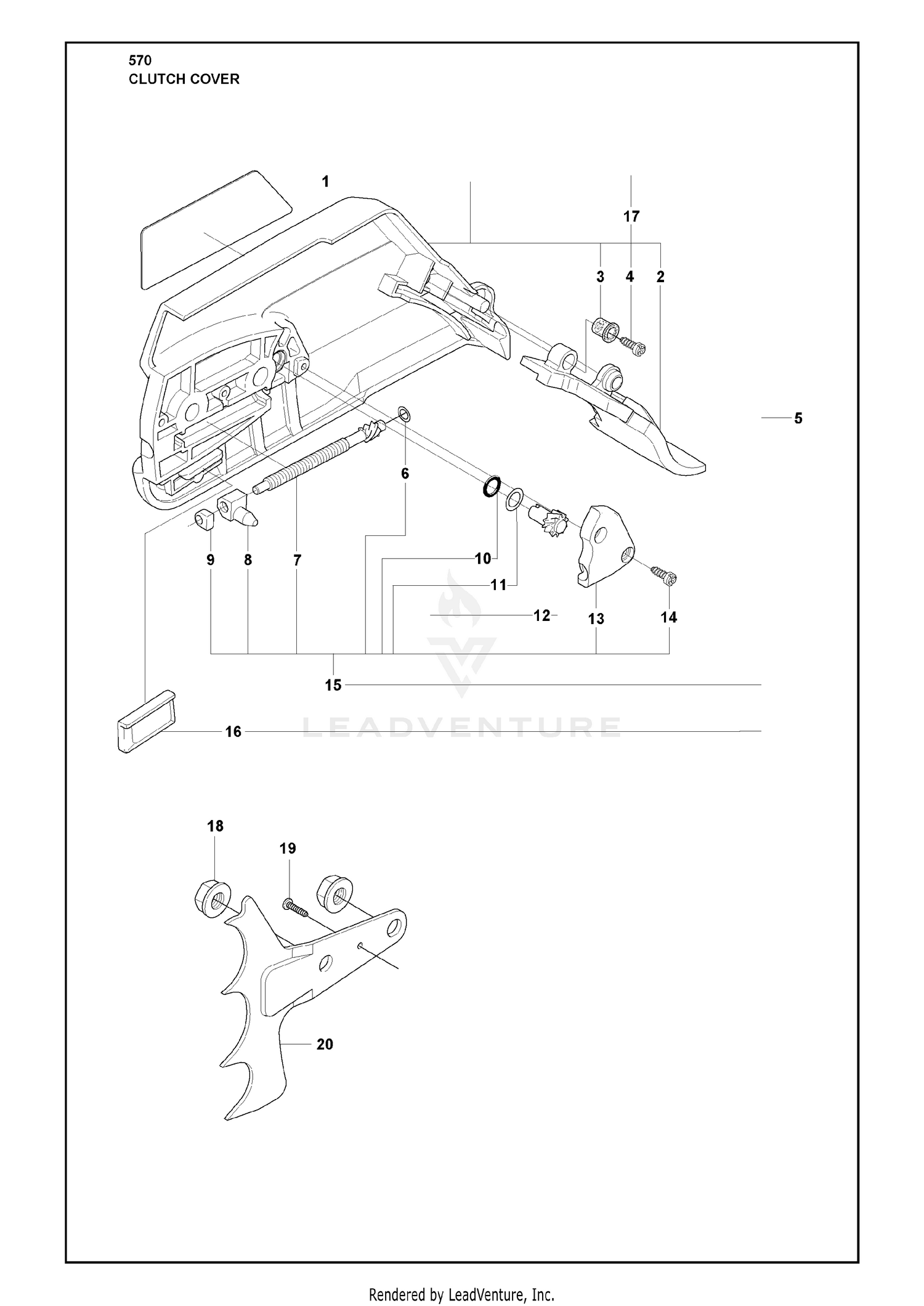

Clutch Cover
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8601 | DISCONTINUED Price: Call Us |
| 1 | 537033803 | DECAL Price: $4.99 |
| 2 | 104-8600 | DISCONTINUED Price: Call Us |
| 2 | 503762902 | PROTECTOR Price: $9.99 |
| 3 | 503897001 | WASHER Price: $4.99 |
| 4 | 503212810 | SCREW Price: $2.99 |
| 5 | 104-0028 | GUIDE-HOSE Price: $46.21 |
| 6 | 503230066 | WASHER Price: $2.99 |
| 6 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 | 537079502 | WORM SCREW / ADJUSTER This part replaces 537079501. Price: $17.99 |
| 8 | 323-11 | SCREW-HH Price: $1.08 |
| 8 | 503998301 | PAWL Price: $7.99 |
| 9 | 537017401 | SLEEVE Price: $4.99 |
| 9 | 84-8320 | INSERT-HINGE Price: $29.68 |
| 10 | 104-8602 | CENTER LIFT ARM ASM Price: $649.23 |
| 10 | 740480702 | O-RING Price: $3.99 |
| 11 | 328-12 | SCREW-HH Price: $9.77 |
| 11 | 503230063 | WASHER Price: $3.99 |
| 12 | 256-115 | WASHER-THRUST Price: $1.90 |
| 12 | 537079402 | WORM WHEEL This part replaces 537079401. Price: $9.99 |
| 13 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 13 | 537016801 | COVER Price: $5.99 |
| 14 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 14 | 503212810 | SCREW Price: $2.99 |
| 15 | 325-4 | SCREW-HH Price: $0.95 |
| 15 | 537044102 | KIT-CHAIN TENSIONER Price: $39.99 |
| 16 | 501517201 | CHAIN GUIDE Price: $4.99 |
| 16 | 92-8754 | DISCONTINUED Price: Call Us |
| 17 | 32121-27 | PIN-ROLL Price: $1.56 |
| 17 | 537033571 | CHAIN BRAKE COVER Price: $49.99 |
| 18 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 18 | 503220001 | NUT M8 FLANGE Price: $2.99 |
| 19 | 110-0009 | JOINT ARM ASM This part replaces 75-3010-03. Price: $199.32 |
| 19 | 503212810 | SCREW Price: $2.99 |
| 20 | 32121-122 | PIN-ROLL Price: $2.93 |
| 21 | 323-12 | SCREW-HH Price: $1.14 |
| 22 | 75-5410 | BRACKET-ARM Price: $12.57 |
| 23 | 3296-44 | NUT-LOCK, NI Price: $2.46 |
| 24 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 25 | 3290-378 | TIE-CABLE Price: $0.79 |
| 26 | 92-9097 | SCREW-HS Price: $1.56 |
| 27 | 75-4550-03 | SHAFT-LIFT, CENTER Price: $259.44 |
