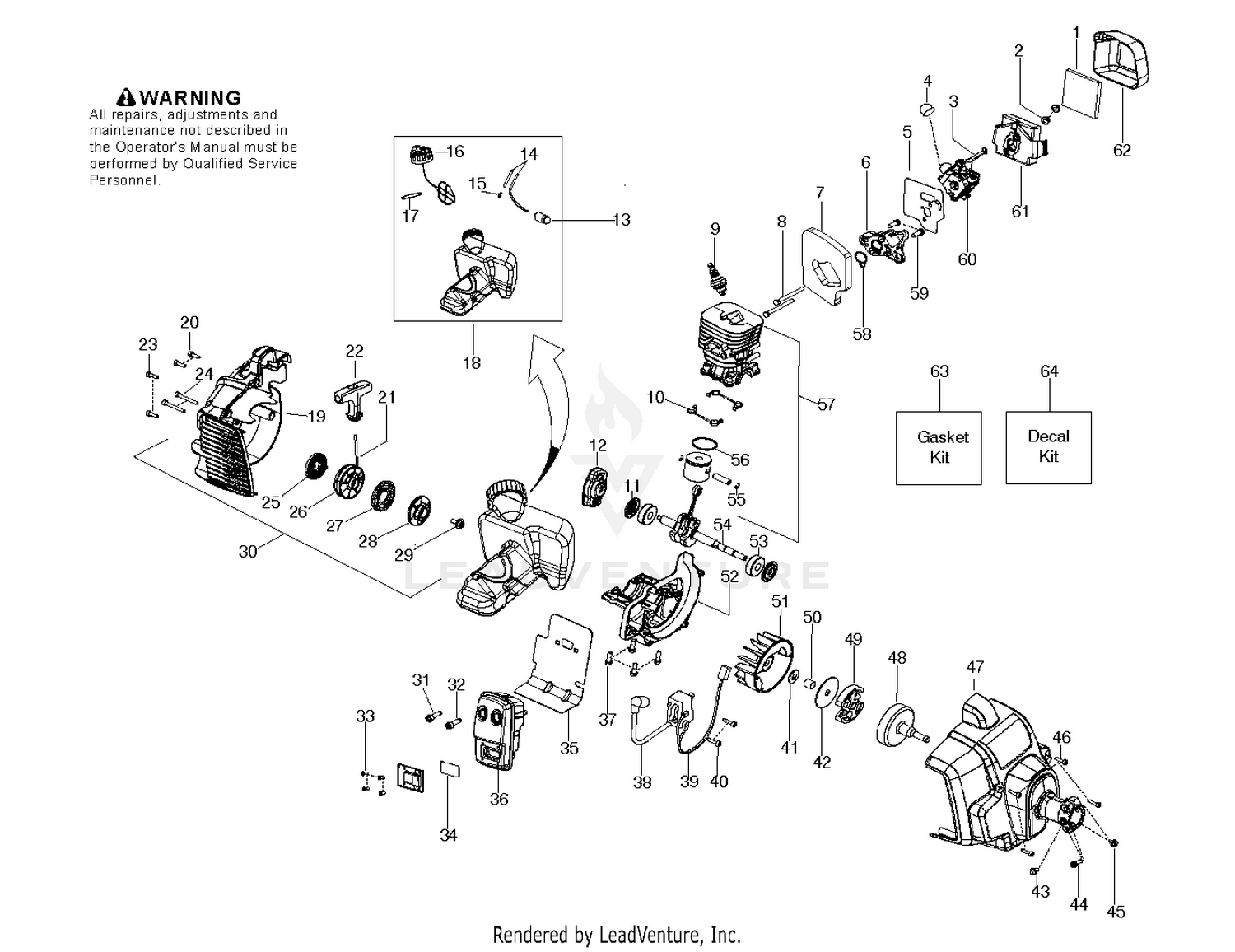

| Ref | Part Number | Description |
|---|
| 1 |
581976201 |
FILTER FOAM Price: $1.99 |
| 2 |
530016101 |
Nut - Carb. Screw Price: $1.99 |
| 3 |
585165801 |
LEVER CHOKE Price: $2.99 |
| 4 |
530058709 |
Bulb - Purge, Zama Price: $4.99 |
| 6 |
530035596 |
CARB ADAPTOR Price: $6.99 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $1.99 |
| 9 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 10 |
545083301 |
SEAL CYLINDER Price: $2.99 |
| 12 |
503873305 |
STARTER PAWL BRIDGE Price: $17.99 |
| 14 |
530069599 |
Kit - Fuel line Price: $4.99 |
| 15 |
581411001 |
FUEL LINE FITTING DBL BARB Price: $1.99 |
| 16 |
578931002 |
ASSY FUEL CAP Price: $4.99 |
| 19 |
585867401 |
HOUSING STARTER Price: $9.99 |
| 20 |
545003511 |
SCREW Price: $2.99 |
| 21 |
545008079 |
KIT ROPE Price: $6.99 |
| 22 |
545208401 |
Handle - Starter Price: $4.99 |
| 23 |
545003511 |
SCREW Price: $2.99 |
| 24 |
530016426 |
SCREW M5-0.8X30MM Price: $1.99 |
| 25 |
545008087 |
KIT STARTER SPRING Price: $4.99 |
| 27 |
578465101 |
DRIVER SPRING Price: $1.99 |
| 28 |
579366201 |
PULLEY STARTER DRIVE Price: $1.99 |
| 29 |
530016468 |
SCREW Price: $1.99 |
| 30 |
585345909 |
KIT HOUSING STARTER Price: $32.99 |
| 31 |
530058982 |
Bolt - Muffler Price: $1.99 |
| 32 |
530058982 |
Bolt - Muffler Price: $1.99 |
| 33 |
530015241 |
Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve Price: $1.99 |
| 34 |
545030501 |
KIT SPARK ARRESTOR SCREEN Price: $4.99 |
| 36 |
585345903 |
KIT MUFFLER W/CATALYST Price: $27.99 |
| 37 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $1.99 |
| 38 |
545046701 |
IGNITION MODULE MBU-7 Price: $37.99 |
| 39 |
585696001 |
ASSY MOD LEADWIRE Price: $3.99 |
| 40 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $1.99 |
| 41 |
530016463 |
Washer-Clutch Flat Price: $1.99 |
| 42 |
530094189 |
Clutch Washer-Models HP22T, HP30SB Price: $2.99 |
| 43 |
530015805 |
Screw - Alignment (10-14 x 1/2") Price: $1.99 |
| 44 |
530015774 |
Screw - Phil. Hd. - 5 x 25mm.- Throttle Control Price: $1.99 |
| 45 |
530015768 |
Nut Type 1 Model XT125K,XT125KT Price: $1.99 |
| 46 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $1.99 |
| 47 |
583974803 |
ASSY FAN HSG BLK Price: $12.99 |
| 49 |
585578701 |
ASSEMBLY CLUTCH Price: $3.99 |
| 50 |
530057852 |
Spacer - Flywheel Price: $2.99 |
| 51 |
530039242 |
FLYWHEEL Price: $27.99 |
| 52 |
577929502 |
CRANKCASE CAST 128 Price: $22.99 |
| 53 |
545013401 |
Bearing - Crankshaft Price: $6.99 |
| 54 |
585415402 |
CRANKSHAFT Price: $27.99 |
| 55 |
530015162 |
Retainer - Wrist Pin (PRO150 Only) Price: $1.99 |
| 56 |
575227901 |
RING PISTON Price: $3.99 |
| 57 |
545008082 |
KIT PISTON & CYLINDER This part replaces 585345910. Price: $27.99 |
| 59 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $1.99 |
| 60 |
585345913 |
CARB FE Price: $34.99 |
| 61 |
581866401 |
HOUSING AIR FILTER BLACK Price: $1.99 |
| 62 |
585165701 |
COVER FILTER HSG Price: $1.99 |
