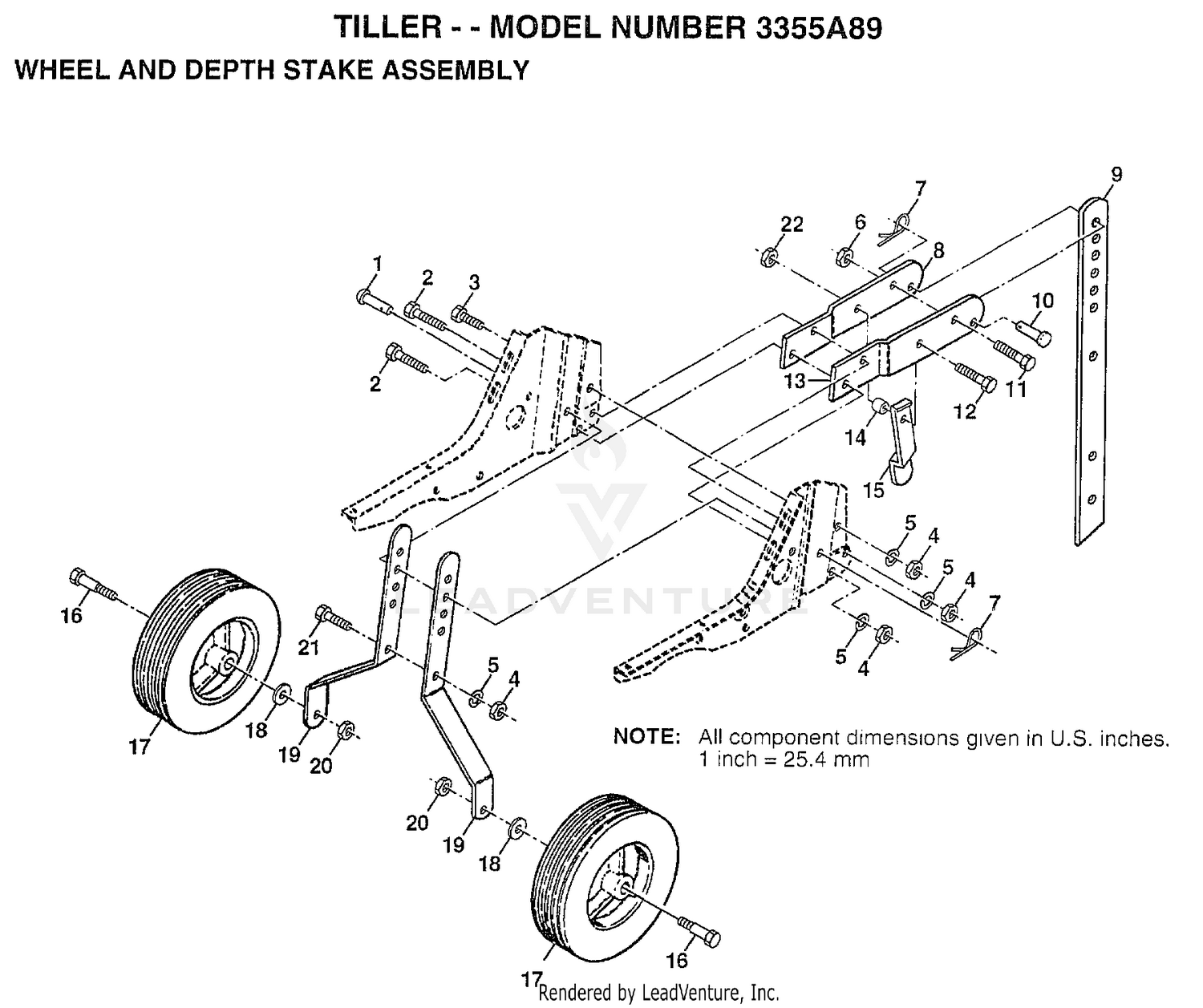

| Ref | Part Number | Description |
|---|
| 1 |
9194R |
DRILLED RIVET RT Price: Call Us |
| 1 |
94-7074 |
FLARE-FENDER, RH Price: $111.01 |
| 2 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 2 |
74760520 |
BOLT Price: Call Us |
| 3 |
74760512 |
BOLT Price: Call Us |
| 3 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 4 |
356303 |
WASHER Price: $13.44 |
| 4 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 5 |
94-8532 |
RH FENDER ASM Price: $511.87 |
| 6 |
73800600 |
NUT Price: Call Us |
| 7 |
92-0479 |
DECAL-TRACTION Price: $4.70 |
| 8 |
1952J |
SUB= 1952J500 Price: Call Us |
| 8 |
94-7132 |
DECAL-BRAKE LOCK Price: $2.97 |
| 9 |
104-8863 |
TREAD-FLOOR Price: $54.94 |
| 9 |
122233X |
SUB= 2582J Price: Call Us |
| 10 |
326J |
SUB= 4929H Price: Call Us |
| 11 |
74780628 |
BOLT Price: Call Us |
| 12 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 12 |
87-0430 |
DECAL-WARNING, SAFETY START Price: $31.22 |
| 13 |
1951J |
SUB= 1951J500 Price: Call Us |
| 13 |
94-8531 |
LH FENDER ASM Price: $534.90 |
| 14 |
120958X |
WASHER Price: Call Us |
| 14 |
94-7075 |
FLARE-FENDER, LH Price: $124.14 |
| 15 |
5388J |
STAKE SPRING TI Price: Call Us |
| 15 |
94-7071 |
GUARD-SPLASH Price: $76.78 |
| 16 |
121117X |
BOLT SHOULDER Price: Call Us |
| 16 |
92-3911 |
SCREW-HSBH Price: $6.00 |
| 17 |
42617 |
CABLE-GROUND Price: $25.41 |
| 17 |
9188R |
SUB= 107644X Price: Call Us |
| 18 |
19131311 |
WASHER Price: Call Us |
| 18 |
32128-20 |
NUT-HF Price: $0.99 |
| 19 |
9190R |
SUB= 9190R500 Price: Call Us |
| 19 |
94-7127 |
SPLASH GUARD ASM Price: $161.83 |
| 20 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 20 |
73680600 |
SUB= 73690600 Price: Call Us |
| 21 |
74760516 |
SUB= 77394 Price: Call Us |
| 21 |
93-6528-03 |
STRAP-MOUNT, FENDER Price: $37.52 |
| 22 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 23 |
93-6498 |
FENDER-REAR Price: $312.87 |
| 24 |
99060 |
CABLE-GROUND Price: $41.19 |
| 25 |
322-9 |
SCREW-HH Price: $3.09 |
| 26 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 27 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 28 |
41792 |
DISCONTINUED Price: Call Us |
| 29 |
106-5190 |
BATTERY This part replaces 55-7290. Price: $170.85 |
| 30 |
3290-148 |
NUT-HF Price: $0.25 |
| 32 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 33 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
32128-33 |
NUT-HF Price: $0.25 |
