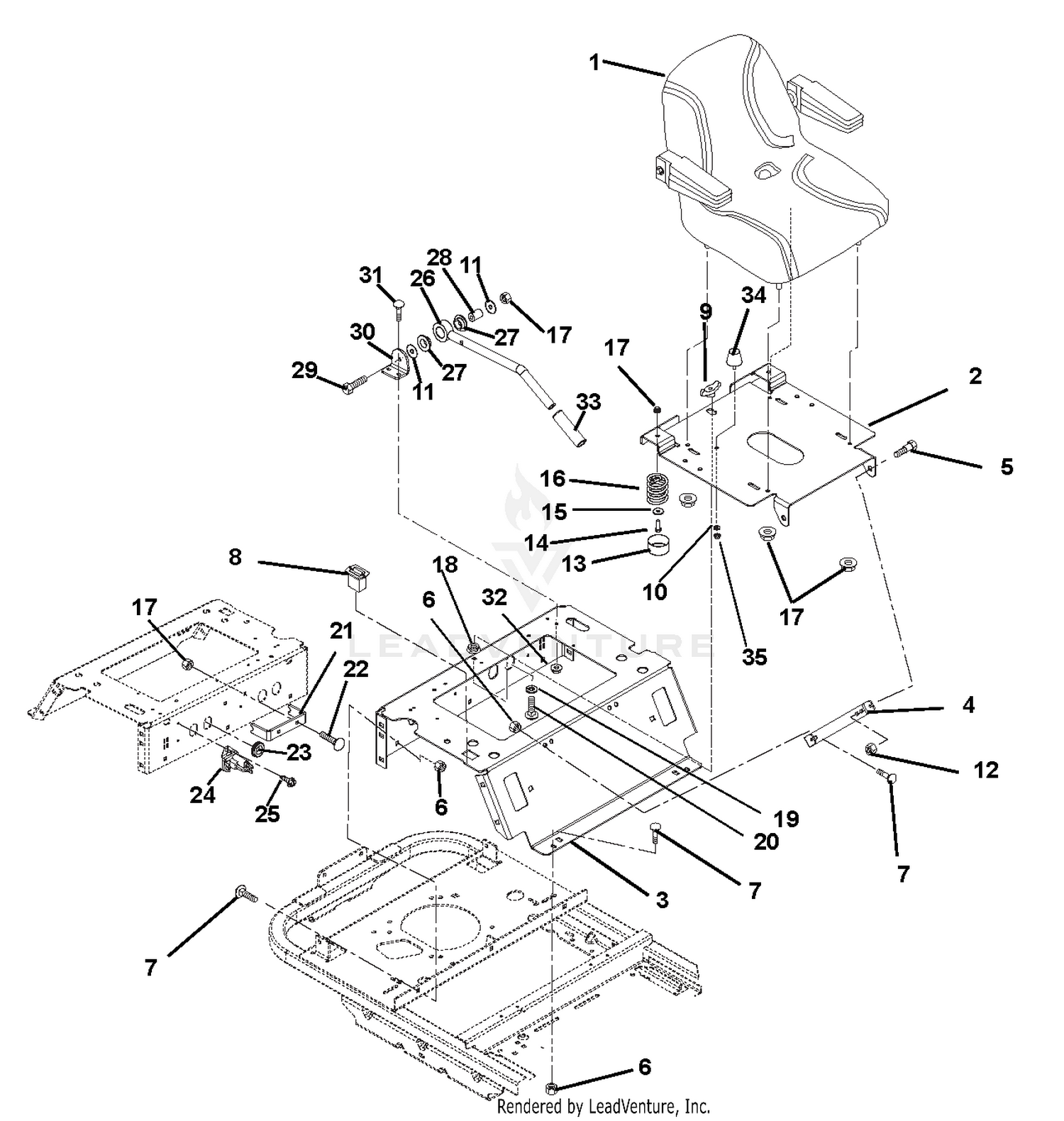

| Ref | Part Number | Description |
|---|
| 1 |
00367800 |
ASSM, SEAT W/REPLA ARMRESTS Price: $399.95 |
| 2 |
00440663 |
BRACKET, SEAT PLATE Price: Call Us |
| 3 |
00360151 |
SEAT SUPPORT Price: $126.45 |
| 4 |
00174163 |
BRACKET, SEAT PLATE Price: Call Us |
| 5 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 6 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 7 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 8 |
09497400 |
HOUR METER This part replaces 00456600. Price: $22.45 |
| 9 |
07534800 |
KNOB-CLAMPING, .312-18 NYLOC This part replaces 07531700. Price: $3.45 |
| 10 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 11 |
06401105 |
WSHR, FLT .347X1.254X.048 ZCC This part replaces 06446900. Price: $2.45 |
| 12 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 13 |
00337700 |
HUB CAP Price: $2.45 |
| 14 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 15 |
06401027 |
WSHR,FLT .328X1.00X.094 ZCC This part replaces 06437500. Price: $3.45 |
| 16 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 17 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 18 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 19 |
06401112 |
WSHR, FLT .505X1.00X.062 ZCC This part replaces 06439200. Price: $0.95 |
| 20 |
06212300 |
BLT-RDHDSQSHNK.31-18X2.75G2YWZ Price: $2.95 |
| 21 |
00362151 |
BRAKE ROD SUPPORT Price: $6.55 |
| 22 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 23 |
07506500 |
GROMMET 1.0ID X 1.38 OD Price: $3.45 |
| 24 |
59223400 |
KIT, SEALED SOLENOID ADAPTER This part replaces 03679000. Price: $55.45 |
| 25 |
07400125 |
SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95 |
| 26 |
00379700 |
WMT, PARK BRAKE Price: $19.25 |
| 27 |
05501517 |
BSHG, FLANGED .762 X 1.48 X .44 IGLIDER This part replaces 05525200. Price: $2.45 |
| 28 |
09235400 |
SPACER .328 X .76 X 1.01 Price: $18.45 |
| 29 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 30 |
00379400 |
BRKT, BRAKE HANDLE PIVOT Price: $5.45 |
| 31 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 06219900. Price: $0.95 |
| 32 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 33 |
00380800 |
GRIP Price: $4.10 |
| 34 |
07533000 |
BUMPER, RUBBER CONE,STUD MOUNT Price: $13.45 |
