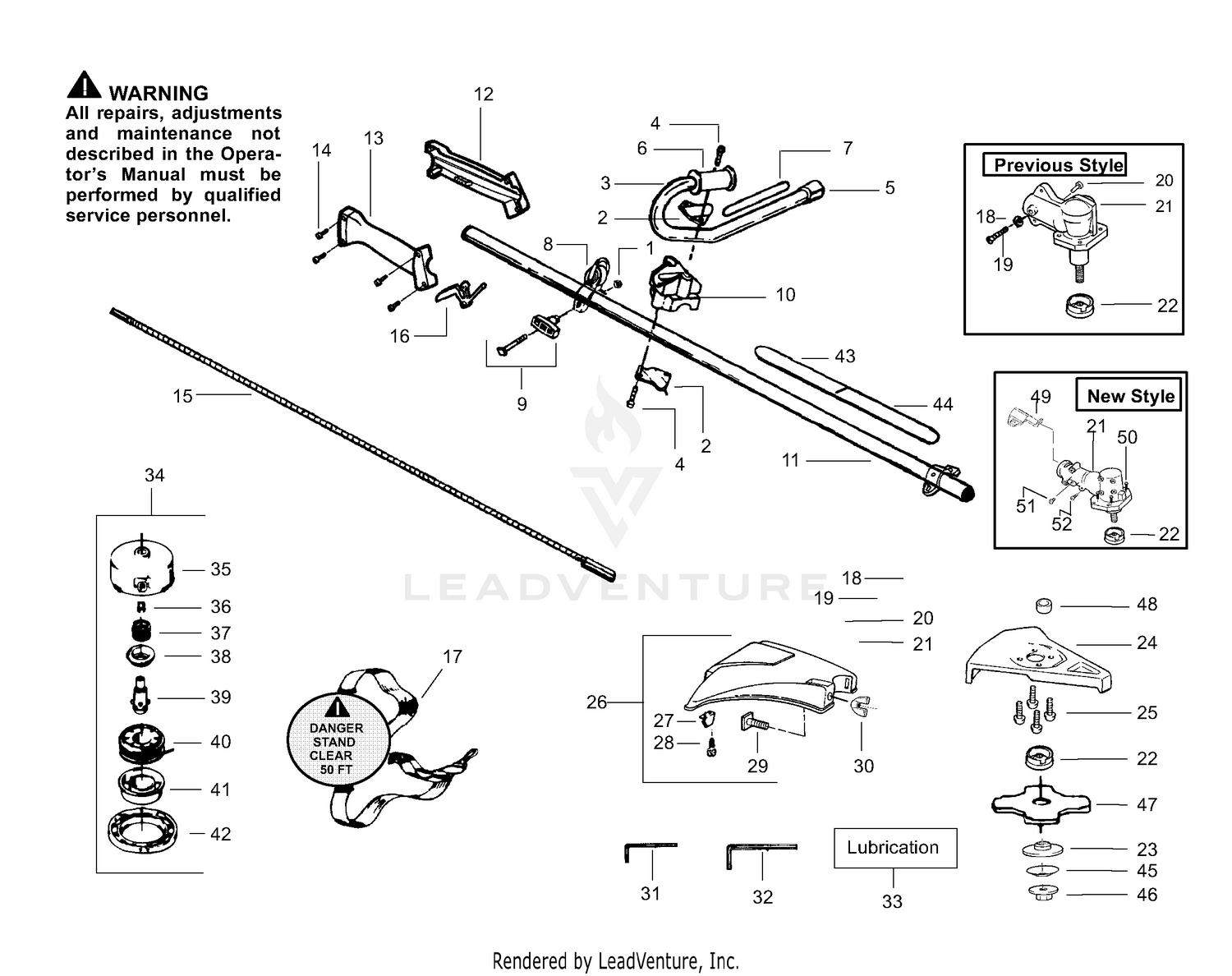

Handle, Driveshaft & Cutting Head
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38-4270 | DISCONTINUED Price: Call Us |
| 1 | 530015768 | Nut Price: $1.99 |
| 2 | 351-52 | DISCONTINUED Price: Call Us |
| 2 | 530094572 | Handlebar Bracket Price: $1.99 |
| 3 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 3 | 530010723 | Handlebar Price: $6.68 |
| 4 | 249-21 | CLAMP-SLOTTED Price: $18.93 |
| 4 | 530015791 | Screw Price: $1.99 |
| 5 | 322-3 | SCREW-HH Price: $0.79 |
| 5 | 530092192 | Handlebar Cap Price: $0.99 |
| 6 | 32140-43 | DISCONTINUED Price: Call Us |
| 6 | 530092086 | Handlebar Grip Price: $4.99 |
| 7 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 7 | 530027884 | Handlebar Warning Decal Price: Call Us |
| 8 | 29-8760 | DISCONTINUED Price: Call Us |
| 8 | 530094686 | Harness Clamp Ass'y. Price: $4.99 |
| 9 | 29-2310 | DISCONTINUED Price: Call Us |
| 9 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 10 | 18-2970 | CLIP-FUEL LINE Price: $8.67 |
| 10 | 530012207 | Handlebar Clamp Price: $8.99 |
| 11 | 351-36 | LOWER SLIDE Price: $137.29 |
| 12 | 3218-1 | NUT-JAM Price: $1.29 |
| 12 | 530036514 | Throttle Hsg. Left Price: $1.99 |
| 13 | 321-2 | SCREW-HH Price: $2.79 |
| 13 | 530036515 | Throttle Hsg. Right Price: $1.99 |
| 14 | 351-35 | DISCONTINUED This part replaces 351-53. Price: Call Us |
| 14 | 530015957 | Screw This part replaces 530015966. Price: $1.99 |
| 15 | 38-1420 | SWITCH-SEAT Price: Call Us |
| 16 | 530036556 | Throttle Lever Price: $1.99 |
| 17 | 530094417 | Shoulder Strap Price: $20.65 |
| 18 | 530015328 | Lockwasher Price: $1.99 |
| 19 | 530016140 | Screw Price: $1.99 |
| 20 | 530015650 | Screw-Pinch Clamp Price: $1.99 |
| 24 | 530069780 | Metal Shield Kit Price: $19.99 |
| 25 | 530016141 | Screw Price: $1.99 |
| 27 | 530095387 | Line Limiter Price: $1.99 |
| 28 | 530015805 | Screw Price: $1.99 |
| 29 | 530015820 | Bolt Price: $1.99 |
| 30 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 31 | 530031159 | Hex Wrench (5/32) Price: $1.99 |
| 32 | 530031098 | Hex Wrench (3/16) Price: $0.99 |
| 33 | 952030139 | Shaft Lubrication This part replaces 952701570. Price: $2.99 |
| 35 | 530071295 | Hub Price: $14.99 |
| 36 | 530093898 | Line Saver Price: $3.99 |
| 37 | 530340007 | Spring Price: $1.99 |
| 38 | 530328929 | Spring Adaptor Price: $1.99 |
| 39 | 530071295 | Hub This part replaces 530095121. Price: $14.99 |
| 40 | 952701589 | Spool w/Line Price: $5.95 |
| 41 | 530401183 | Release Button Price: $2.99 |
| 42 | 530092133 | Cover Price: $5.99 |
| 43 | 530029162 | Decal-Warn.-Upper Price: $3.33 |
| 44 | 530038906 | Decal-Warn.-Lower Price: $0.12 |
| 45 | 530016240 | Washer-Belleville Price: $1.99 |
| 46 | 530015793 | Nut Price: $1.99 |
| 48 | 530019235 | Seal Sleeve Price: $1.99 |
| 49 | 530095812 | Bracket-Shield Price: $1.99 |
| 50 | 530016312 | Screw Price: $1.99 |
| 51 | 530016301 | Screw Price: $1.99 |
| 52 | 530016309 | Screw Price: $1.99 |
