Home / OPE / *MTD Legacy 1985-2005 / Ranch King / 13-Lawn Tractors / 2004 Models / 13AD668G705 (2004) / Engine Accessories

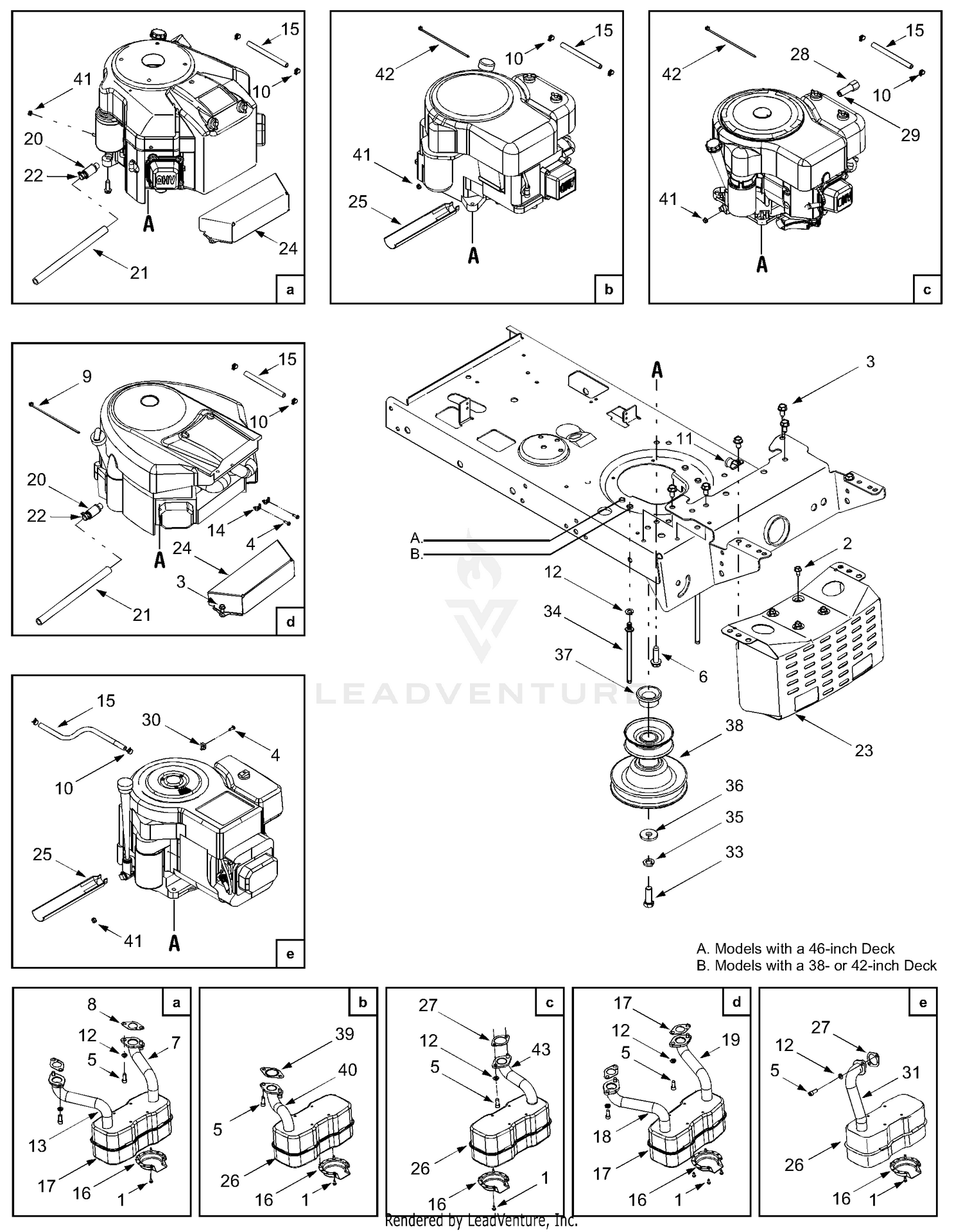

Engine Accessories

Engine Accessories

Parts (42)

RefPart NumberDescription
1 710-0148 Screw, #8-32 x .375 Price: $3.90
2 710-0599 Self-tapping Screw, 1/4-20 x .5 Price: $3.86
3 710-0726 Self-tapping Screw, 5/16-12 x .75 Price: $3.82
4 710-1237 Screw, #10-32 x .625 Price: $3.89
5 710-1314A Socket Cap Screw, 5/16-18 x .625 Price: $4.05
6 710-1315 Self-tapping Screw, 3/8-16 x 1.25 Price: $3.90
7 751-0813A EXHAUST PIPE (LH) Not Available This part replaces 751-0813. Price:
8 721P0460 MUFFLER GASKET This part replaces 721-0460. Price: $6.17
9 926-0154 Push Mount Cable Tie This part replaces 726-0154. Price: $5.50
10 726-0205 Hose Clamp, .490 Price: $3.71
11 726-0272 Clamp, 9/16 Price: $6.24
12 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
13 751-0814A EXHAUST PIPE (RH) Not Available This part replaces 751-0814. Price:
14 751B221535 Casing Clamp Price: $8.93
15 751-0535 Fuel Line Hose Price: Call Us
16 751-0564B Muffler Deflector This part replaces 751-0564A. Price: $12.14
17 951-0616B MUFFLER (DUAL INLET) This part replaces 751-0616A. Price: $143.87
18 751-0650B RH Exhaust Pipe Not Available This part replaces 751-0650A. Price:
19 751-0651B LH Exhaust Pipe Not Available This part replaces 751-0651A. Price:
20 951-10517A Oil Drain Valve This part replaces 751-3140. Price: $22.67
21 751-3141-14 Oil Drain Hose This part replaces 751-3141. Price: $10.40
22 751-3142 Oil Drain Cap Price: $3.81
23 783-0615E-0637 Muffler Heat Shield This part replaces 783-0615C. Price: $56.32
24 783-0625C HEAT SHIELD Not Available Price:
25 731-1682A Oil Drain Sleeve Price: $6.79
26 951-0617C Single Inlet Muffler This part replaces 751-0617A. Price: $138.70
27 BS-692236 Gasket-Exhaust This part replaces 721-0208. Price: $4.66
28 737-0143 CAP - OIL DRAIN Not Available Price:
29 937-0199 PIPE NIPPLE Not Available This part replaces 737-0199. Price:
30 BS-690798 Cable Clamp (B&S) This part replaces 751B213146. Price: $4.88
31 751-0619B EXHAUST PIPE Not Available This part replaces 751-0619A. Price:
32 710-0227 Screw, #8-18 x .50 Price: $3.90
33 710-3029 Hex Screw, 7/16-20 x 1.25 Price: $3.82
34 711-1044A Belt Guard Pin This part replaces 711-1044. Price: $7.61
35 736-0171 Lock Washer, 7/16 Price: $3.86
36 736-0322 Flat Washer, .450 x 1.25 x .164 Price: $8.42
37 750-0956 Spacer, 1.0 x 1.4 x .825 Price: $17.79
38 956-04023 Engine Pulley, 3.39 X 5.56 This part replaces 756-04023. Price: $112.24
39 TC-36365 EXHAUST GASKET Not Available This part replaces 721-0348. Price:
40 751-0620A Exhaust Pipe This part replaces 751-0620. Price: $75.40
41 712-0271 Hex Sems Nut, 1/4-20 Price: $3.78
42 725-0157 Cable Tie, 7.4" Price: $3.46
