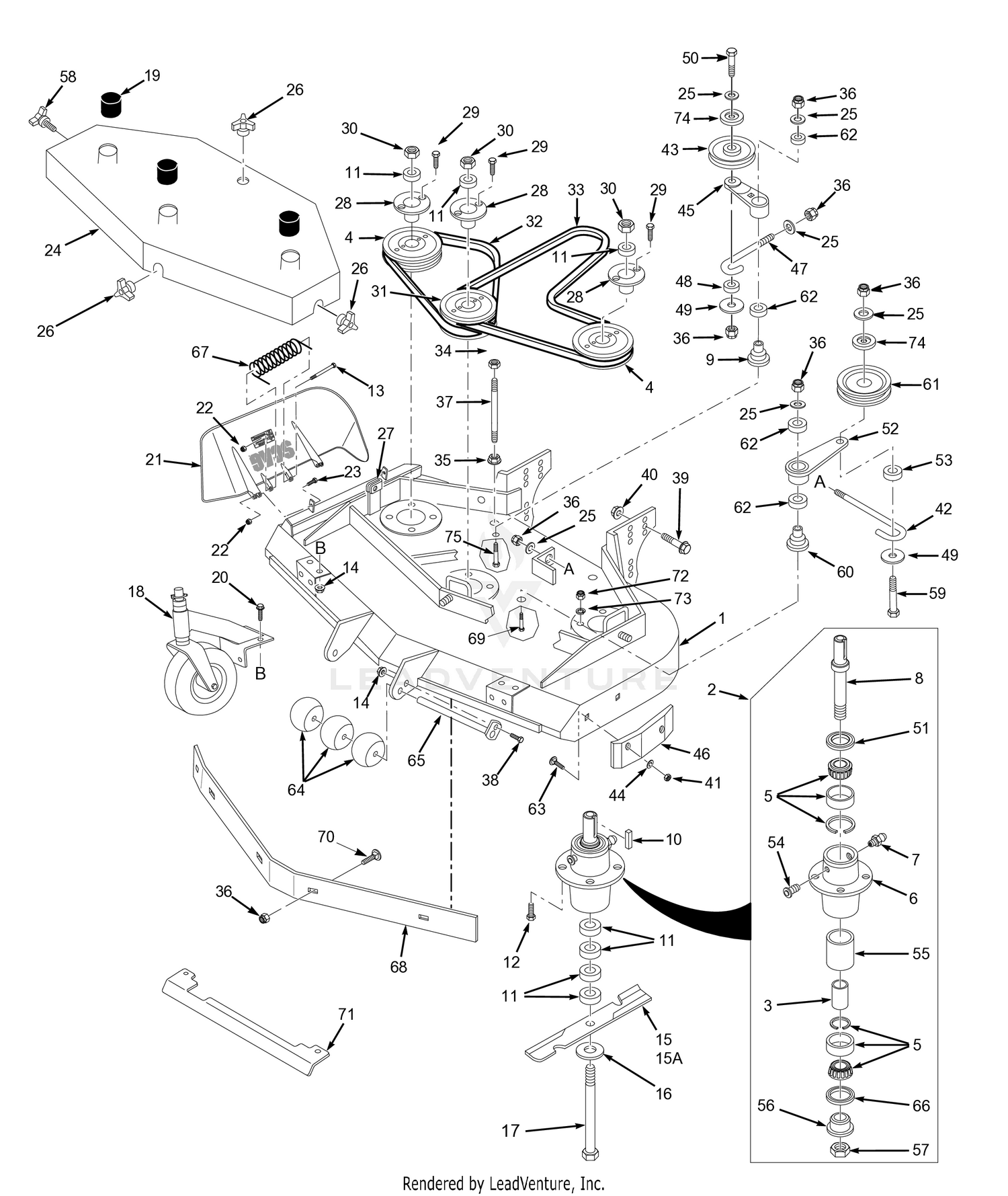

| Ref | Part Number | Description |
|---|
| 1 |
40-6230 |
SPRING Price: $37.99 |
| 1 |
461860 |
Cutter Deck w/Decals Price: Call Us |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
461663 |
Cutter Spindle Assembly Price: Call Us |
| 3 |
3217-6 |
NUT-HEX Price: $1.19 |
| 3 |
43296 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 4 |
3296-5 |
NUT-HEX Price: $3.09 |
| 4 |
482745 |
Pulley, 6.35 O.D. (Diesel Engine) Price: Call Us |
| 5 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 5 |
66-1340 |
DECAL-DANGER, THROWN OBJECT This part replaces 40-5730. Price: $9.07 |
| 6 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 6 |
43644 |
Housing, Spindle Price: Call Us |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 8 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
43589 |
Spindle Shaft, Tapered Brng Price: Call Us |
| 9 |
3218-3 |
NUT-JAM Price: $0.25 |
| 9 |
43682 |
Idler Pivot Price: Call Us |
| 10 |
04063-08 |
Key, 1/4 x 1/4 x 2.0" Price: Call Us |
| 10 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 11 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 11 |
43592 |
Spacer, Cutter Blade - Small Price: Call Us |
| 12 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8 Price: Call Us |
| 12 |
28-9060 |
PLATE-IDLER Price: $137.75 |
| 13 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 13 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 14 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 14 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 15 |
27-1080 |
DISCONTINUED X-REF Price: Call Us |
| 15 |
481708 |
Cutter Blade, 21" Standard Price: Call Us |
| 15A |
481712 |
Cutter Blade, High Lift (61" Deck) Price: Call Us |
| 16 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 16 |
3211-6 |
SCREW-HH Price: $3.87 |
| 17 |
04001-41 |
BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5 Price: Call Us |
| 17 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 18 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 18 |
461023 |
Caster Assembly Price: Call Us |
| 19 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 19 |
484368 |
Cap, Spindle 61" Only Price: Call Us |
| 20 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 20 |
27-1160 |
V-BELT Price: $51.80 |
| 21 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 21 |
461846 |
Discharge Chute Advantage - Large Price: Call Us |
| 22 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 22 |
32146-20 |
NUT-HEX Price: $3.23 |
| 23 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 23 |
7-4150 |
WASHER Price: $1.19 |
| 24 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 24 |
491879 |
BELT COVER ASSY, SWM-61V This part replaces 461868. Price: Call Us |
| 25 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 25 |
253-139 |
SEAL-OIL Price: $12.45 |
| 26 |
04029-03 |
WINGNUT, PLASTIC 3/8-16 X .875 Price: Call Us |
| 26 |
46-8530 |
BEARING ASM Price: $93.99 |
| 27 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 27 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 28 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 28 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 29 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 29 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 30 |
04020-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 30 |
61-4160 |
HOUSING-SPINDLE This part replaces 27-0880. Price: $131.00 |
| 31 |
32128-21 |
NUT-HF Price: $0.39 |
| 31 |
48940 |
Pulley, Double Groove, 6.35/5.75 O.D. Price: Call Us |
| 32 |
27-0920 |
SHAFT Price: $158.07 |
| 32 |
48265 |
BELT, RH BLADE DRIVE 61" DECK Price: Call Us |
| 33 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 33 |
48088 |
BELT, BLADE DRIVE SLM 48 Price: Call Us |
| 34 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 34 |
72-9361 |
CUP-SCALP, ANTI This part replaces 27-1000. Price: $39.78 |
| 35 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 35 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 36 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 36 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 37 |
04004-02 |
Bolt, 5/16-18 x 1" Hex Head Price: Call Us |
| 37 |
27-0950 |
SPACER Price: $29.99 |
| 38 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 38 |
40-0020 |
DISCONTINUED Price: Call Us |
| 39 |
04017-37 |
Serr. Fl. Hex Head Capscrew, 1/2-13 x 1-3/4 Price: Call Us |
| 39 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 40 |
04117-04 |
Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52) Price: Call Us |
| 40 |
29-4820 |
ROLLER Price: $14.88 |
| 41 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 41 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 42 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 42 |
44078 |
J-Hook, Idler Pulley Price: Call Us |
| 43 |
3211-15 |
SCREW-HH Price: $7.99 |
| 43 |
48181 |
IDLER PULLEY, "V" GROOVE Price: Call Us |
| 44 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
| 44 |
13-3949 |
DEFLECTOR ASM This part replaces 40-6200. Price: $214.07 |
| 45 |
461091 |
Idler Arm Assembly Price: Call Us |
| 46 |
483176 |
Pad, Deck Wear Price: Call Us |
| 47 |
43028 |
J-HOOK, IDLER PULLEY Price: Call Us |
| 48 |
43077 |
SPACER, J PULL ROD Price: Call Us |
| 49 |
04041-12 |
Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.) Price: Call Us |
| 50 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 51 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 52 |
461841 |
Idler Arm Assy. Price: Call Us |
| 53 |
43277 |
SPACER, J-PULL ROD Price: Call Us |
| 54 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 55 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 56 |
43297 |
SPINDLE BUSHING, BOTTOM Price: Call Us |
| 57 |
481035 |
Nut , Spec ial 1 -1/ 1 6 - 1 8 Price: Call Us |
| 58 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 59 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 60 |
43681 |
Pivot, Idler - Short Price: Call Us |
| 61 |
483215 |
Idler Pulley, Belt Clutch Price: Call Us |
| 62 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 63 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 64 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 65 |
45944 |
Shaft Weldment, Guide Roller Price: Call Us |
| 66 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 67 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 68 |
424841 |
Baffle Custom-Cut, 61V (7-Position) Price: Call Us |
| 69 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 70 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 71 |
424730 |
Heatshield, 20" Large Frame Price: Call Us |
| 72 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 73 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 74 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
