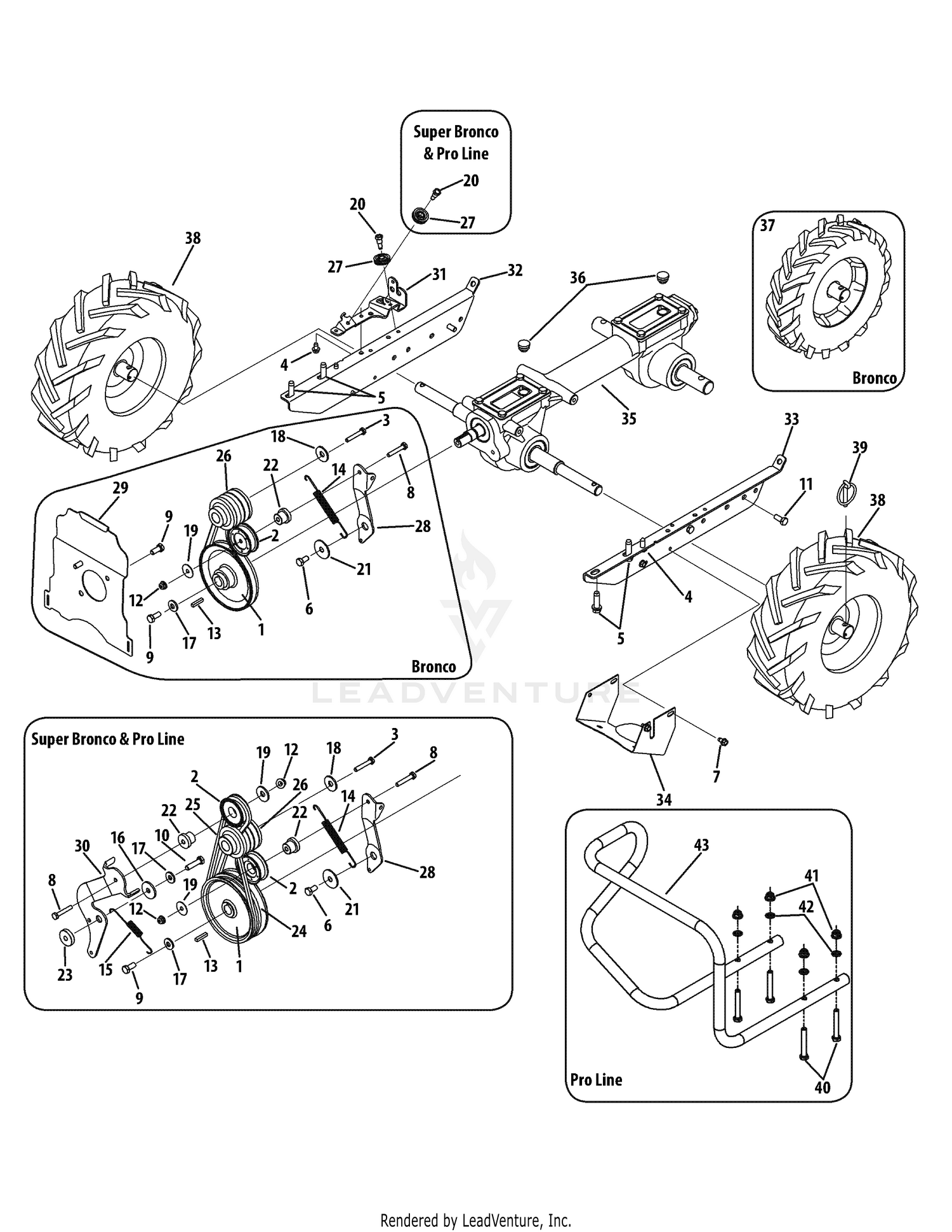

| Ref | Part Number | Description |
|---|
| 2 |
684-04168 |
Idler Pulley Assembly Price: $34.09 |
| 3 |
710-0151 |
Hex Screw,3/8 -24 x 2 Price: $6.55 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0538 |
Hex Screw, 5/16-18 x .625 Price: $4.02 |
| 7 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 8 |
710-0606 |
Hex Screw, 1/4-20 x 1.50 Price: $4.67 |
| 9 |
710-0627 |
Hex Screw,5/16-24 x .750 Price: $3.68 |
| 10 |
710-0672 |
Hex Screw, 5/16-24 x 1.250 Price: $3.85 |
| 11 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 12 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 13 |
914-0105 |
Square Key, 3/16 x 1.00 This part replaces 714-0105. Price: $3.22 |
| 14 |
732-04085 |
Extension Spring, .480 x 5.00 Price: $12.40 |
| 15 |
732-04276A |
Extension Spring Price: $8.55 |
| 16 |
736-0343 |
Flat Washer, .330 x 1.25 x .120 Price: $3.90 |
| 17 |
736-04193 |
Belleville Washer, .827 x .331 x .098 Price: $5.94 |
| 18 |
736-0452 |
Belleville Washer, .396 x 1.140 x .095 Price: $4.05 |
| 19 |
736-3092 |
Flat Washer, .265 x 1.0 x .030 Price: $3.68 |
| 20 |
738-0924A |
Shoulder Screw, 1/4-28 x .340 x .335 Price: $5.94 |
| 21 |
748-04087A |
Pivot Spacer Price: $5.66 |
| 22 |
750-04571 |
Shoulder Spacer, .260 x .785 x .538 Price: $6.01 |
| 23 |
750-04907 |
Pivot Spacer Price: $5.32 |
| 24 |
954-04090 |
V Belt, 4L x 25375 LG This part replaces 754-04090. Price: $18.60 |
| 25 |
954-04091 |
V Belt, 3L x 29125 LG This part replaces 754-04091. Price: $17.63 |
| 26 |
756-04334 |
ENGINE PULLEY .75 ID x 2.378 Not Available Price: |
| 27 |
756-0625 |
Cable Roller Price: $8.52 |
| 28 |
786-04312 |
Forward Idler Bracket Price: $11.96 |
| 29 |
786-04343 |
Motor Cover Plate Price: $14.08 |
| 30 |
786-04346 |
Reverse Idler Bracket Price: $9.16 |
| 31 |
786-04357A |
CABLE BRACKET ROLLER This part replaces 786-04357. Price: $7.81 |
| 32 |
786-04367 |
FRAME-MOUNT (LH) Not Available Price: |
| 33 |
786-04368 |
Frame, Right Price: $13.01 |
| 34 |
786-04371 |
Pulley Shield Price: $14.34 |
| 35 |
753-06042A |
Transmission Assembly This part replaces 618-04597. Price: $874.03 |
| 36 |
721-04235 |
RUBBER OIL PLUG Not Available Price: |
| 39 |
714-0143A |
Klik Pin, 25 DIA x 156 This part replaces 714-0143. Price: $5.67 |
| 40 |
710-0395 |
Hex Screw, 5/16-18 x 2.25 Price: $4.08 |
| 41 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 42 |
726-0201 |
Speed Nut, .3125 Price: $6.01 |
