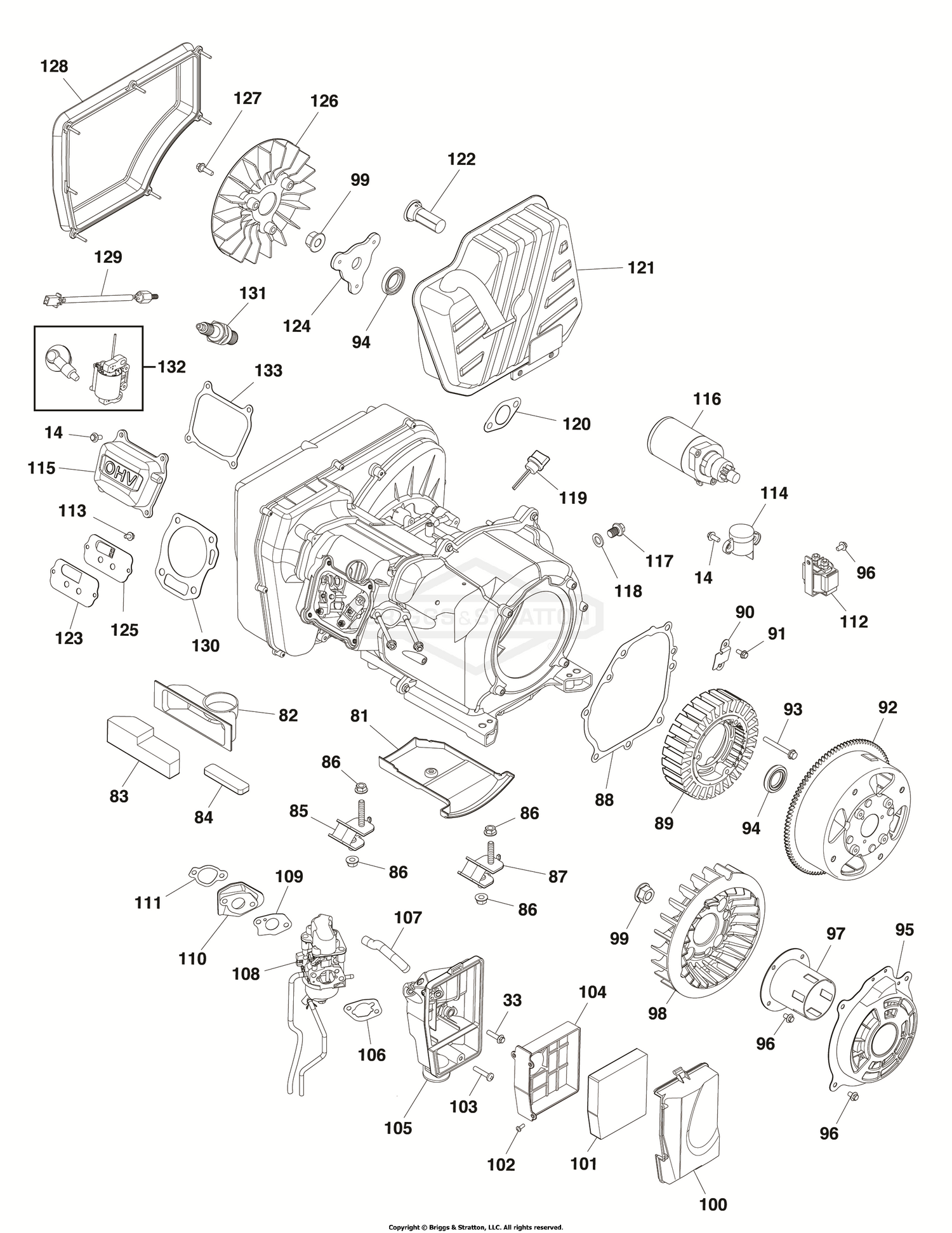

| Ref | Part Number | Description |
|---|
| 14 |
807084 |
SCREW This part replaces 706865. Price: $2.92 |
| 33 |
590644 |
SCREW This part replaces 706866. Price: $3.36 |
| 81 |
84002487 |
COVER-SEAL BASE Price: $8.26 |
| 82 |
84002914 |
BASE-AIR CLEANER Price: $7.20 |
| 83 |
84001981 |
AIR FILTER Price: $5.69 |
| 84 |
84002915 |
SPONGE-RETENTION Price: $7.02 |
| 85 |
84002932 |
MOUNT-VIBRATION Price: $10.80 |
| 86 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 87 |
84002931 |
MOUNT-VIBRATION Price: $10.17 |
| 88 |
84002476 |
GASKET Price: $14.51 |
| 89 |
84002477 |
STATOR Price: $333.89 |
| 90 |
84002924 |
PLATE-PROTECTOR Price: $3.28 |
| 91 |
207824GS |
BOLT, M5 - 6 x 12 Price: $3.73 |
| 92 |
84002478 |
ROTOR Price: $158.99 |
| 93 |
84002506 |
BOLT Price: $2.64 |
| 94 |
84002505 |
SEAL Price: $8.27 |
| 95 |
84002488 |
RECOIL Price: $40.80 |
| 96 |
771769 |
SCREW Price: $5.93 |
| 97 |
84002495 |
CUP-RECOIL Price: $15.68 |
| 98 |
84002479 |
FAN-COOLING Price: $19.18 |
| 99 |
84002502 |
NUT Price: $3.28 |
| 100 |
84002510 |
COVER-AIR CLEANER Price: $21.72 |
| 101 |
84001978 |
ELEMENT Price: $5.69 |
| 102 |
75475GS |
SCREW Price: $3.29 |
| 103 |
21496GS |
PPHMS, M6-1.0 X 30, ZP Price: $4.87 |
| 104 |
84002511 |
FRAME-ELEMENT Price: $8.58 |
| 105 |
84002509 |
BASE-AIR CLEANER Price: $34.97 |
| 106 |
84002486 |
GASKET Price: $3.05 |
| 107 |
84002493 |
HOSE-BREATHER Price: $8.68 |
| 108 |
84006619 |
CARBURETOR Price: $50.46 |
| 109 |
84002485 |
GASKET Price: $3.05 |
| 110 |
84002480 |
INSULATOR Price: $4.97 |
| 111 |
84002481 |
GASKET Price: $2.71 |
| 112 |
84002499 |
RELAY Price: $21.08 |
| 113 |
84002508 |
BOLT Price: $2.32 |
| 114 |
84002492 |
SENSOR-LOW OIL Price: $11.21 |
| 115 |
84002498 |
COVER-CYLINDER HEAD Price: $29.67 |
| 116 |
84002489 |
STARTER MOTOR Price: $89.03 |
| 117 |
84002504 |
BOLT-OIL DRAIN Price: $3.17 |
| 118 |
84002503 |
WASHER Price: $2.43 |
| 119 |
84002491 |
DIPSTICK-OIL Price: $3.28 |
| 120 |
84002484 |
GASKET-EXHAUST Price: $2.75 |
| 122 |
703189 |
ARRESTOR-SPARK Price: $22.22 |
| 123 |
84002515 |
GASKET Price: $4.53 |
| 124 |
84002482 |
BRACKET Price: $11.01 |
| 125 |
84002516 |
PLATE-VALVE Price: $8.79 |
| 126 |
84002483 |
FAN-COOLING Price: $20.52 |
| 127 |
84002514 |
BOLT Price: $3.17 |
| 128 |
84002501 |
HOUSING Price: $40.25 |
| 129 |
84002513 |
SENSOR-TEMPERATURE Price: $19.95 |
| 130 |
84002507 |
GASKET-CYLINDER HEAD Price: $6.99 |
| 131 |
84001980 |
SPARKPLUG Price: $6.57 |
| 132 |
84002490 |
ASSY, COIL IGNITION Price: $39.11 |
