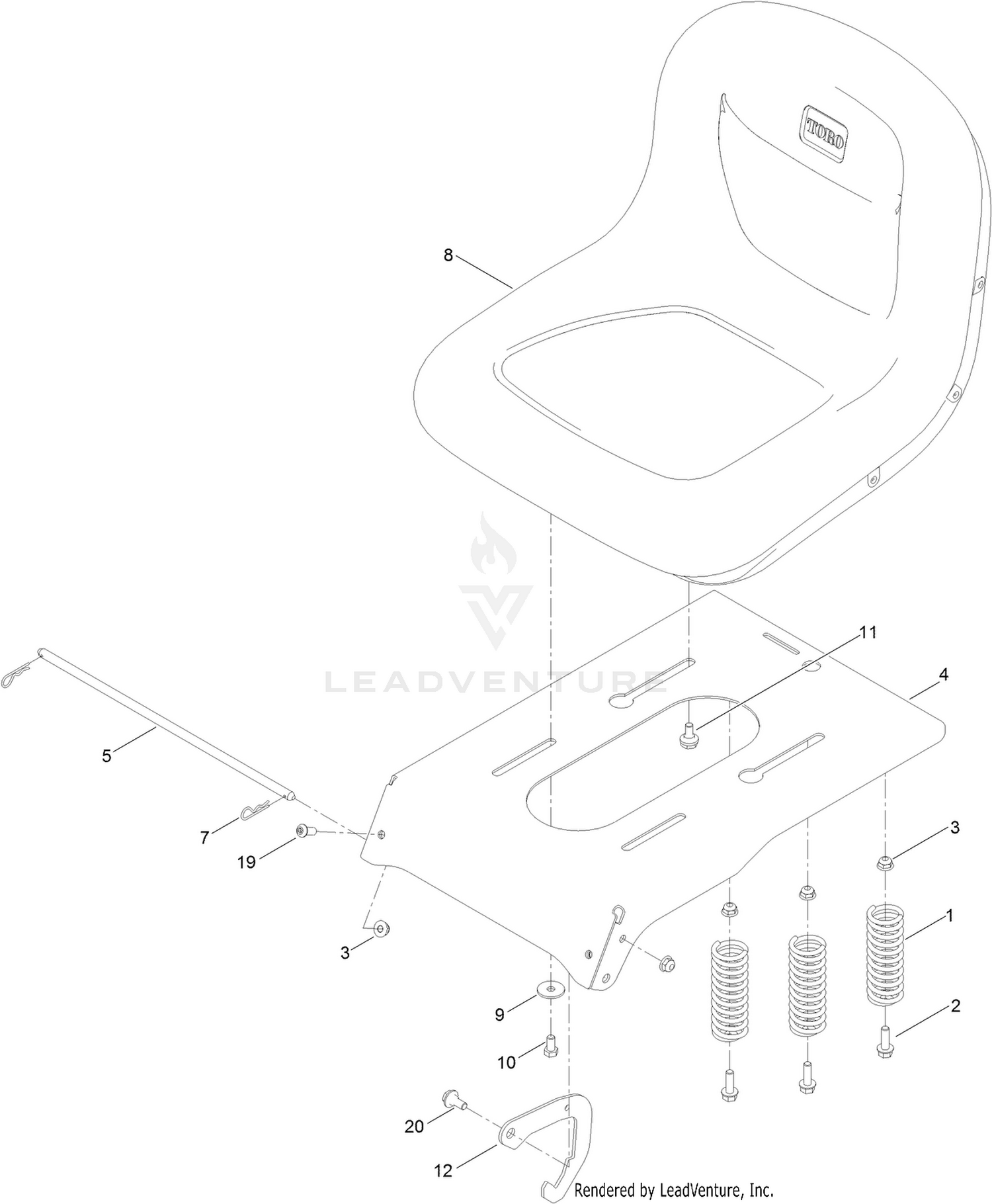

Seat Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-7054 | SPRING-COMPRESSION Price: $13.32 |
| 2 | 139-2596 | SCREW-HHF Price: $0.78 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 131-4037-01 | PAN-SEAT Price: $51.78 |
| 5 | 138-7213 | ROD-PIVOT, NARROW Price: $11.24 |
| 7 | 3290-250 | PIN-COTTER Price: $5.59 |
| 8 | 119-8828 | SEAT-15 INCH Price: $200.82 |
| 9 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 10 | 139-2585 | SCREW-HH Price: $0.33 |
| 11 | 37-8771 | BOLT-SHOULDER,HFH Price: $3.59 |
| 12 | 138-7250 | SEAT LATCH Price: $5.44 |
| 19 | 3274-55 | SCREW-HSBH Price: $3.19 |
