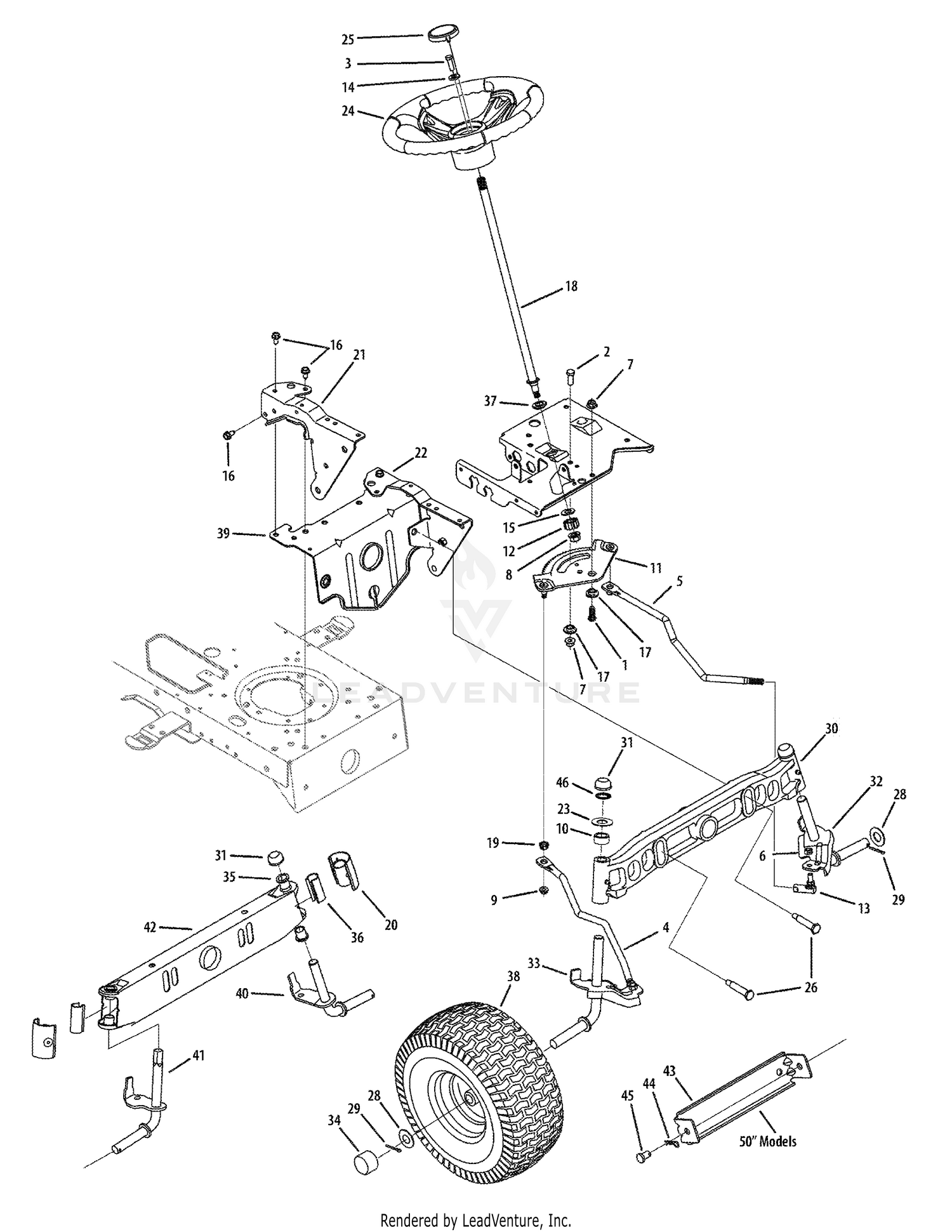

| Ref | Part Number | Description |
|---|
| 1 |
710-04095 |
Hex Screw, 3/8-16, 1.00, Gr5 Price: $4.39 |
| 2 |
710-0514 |
Hex Screw, 3/8-16, 1.00, Gr5 Price: $3.78 |
| 3 |
710-0643 |
Hex Screw, 5/16-18, 1.00, Gr5 Price: $5.99 |
| 4 |
711-1408 |
DRAG LINK (RH) Not Available Price: |
| 5 |
711-1409A |
DRAG LINK (LH) Not Available Price: |
| 6 |
712-0214 |
Nut, Hex Lock, 3/8-24 Price: $5.94 |
| 7 |
712-04065 |
Nut, Flange Lock, 3/8-16, Grf Price: $3.68 |
| 8 |
712-0459 |
Nut, Flange Lock, 7/16-20 Price: $4.39 |
| 9 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 10 |
748-04068 |
Spacer, .71 x .125 x .56 Price: $3.56 |
| 11 |
717-1550F |
Steering Gear This part replaces 717-1550E. Price: $61.81 |
| 12 |
717-1554 |
Gear, Pinion, Steering Price: $9.44 |
| 13 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 14 |
736-3004 |
Washer, Flat, .406 x .875 x .105 Price: $4.08 |
| 15 |
736-3084 |
Washer, Flat, .51 x 1.12 x .06 Price: $4.39 |
| 16 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 17 |
738-04154 |
Spacer, Shoulder, .38 x 1.00 x .31 Price: $5.08 |
| 18 |
738-04263 |
Shaft, Steering, .625 OD x 24.25 Price: $60.18 |
| 19 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 20 |
931-1291A |
Pivot Bar End Cap w/ fitting This part replaces 731-1291A. Price: $13.96 |
| 23 |
736-0316 |
Washer, Flat, .78 x 1.59 x .060 Price: $4.02 |
| 24 |
631-04008B |
Steering Wheel Assembly This part replaces 631-04008A. Price: $87.97 |
| 24 |
631-04028 |
Steering Wheel Price: $64.50 |
| 25 |
731-04039 |
Steering Wheel Cap Price: $7.17 |
| 25 |
731-04040 |
Steering Wheel Cap, Sprig Logo Price: $8.69 |
| 25 |
731-04681 |
Steering Wheel Cap, Tine Logo Price: $12.40 |
| 26 |
738-04128 |
Shoulder Bolt, .5 x 2.38, 3/8-16 Price: $6.67 |
| 28 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 34 |
731-05674 |
Push Cap, 3/4 Price: $4.40 |
| 35 |
741-0660A |
Flange Bearing Price: $2.92 |
| 36 |
731-04057A |
Axle End Cap, Standard Price: $4.59 |
| 37 |
741-04237B |
Hex Flange Bearing 5/8 PM This part replaces 741-04237. Price: $5.87 |
| 38 |
634-05067-0911 |
Wheel Assembly Complete, 15x6 Price: $163.07 |
| 38 |
734-1731-0901 |
Tire Only 15 x 6 x 6 Price: $46.14 |
| 39 |
783-05326D-0637 |
PIVOT BAR BRACKET (POWDER BLACK) This part replaces 783-05326. Price: $29.27 |
| 44 |
714-04023 |
Hairpin Clip Price: $3.90 |
| 45 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
