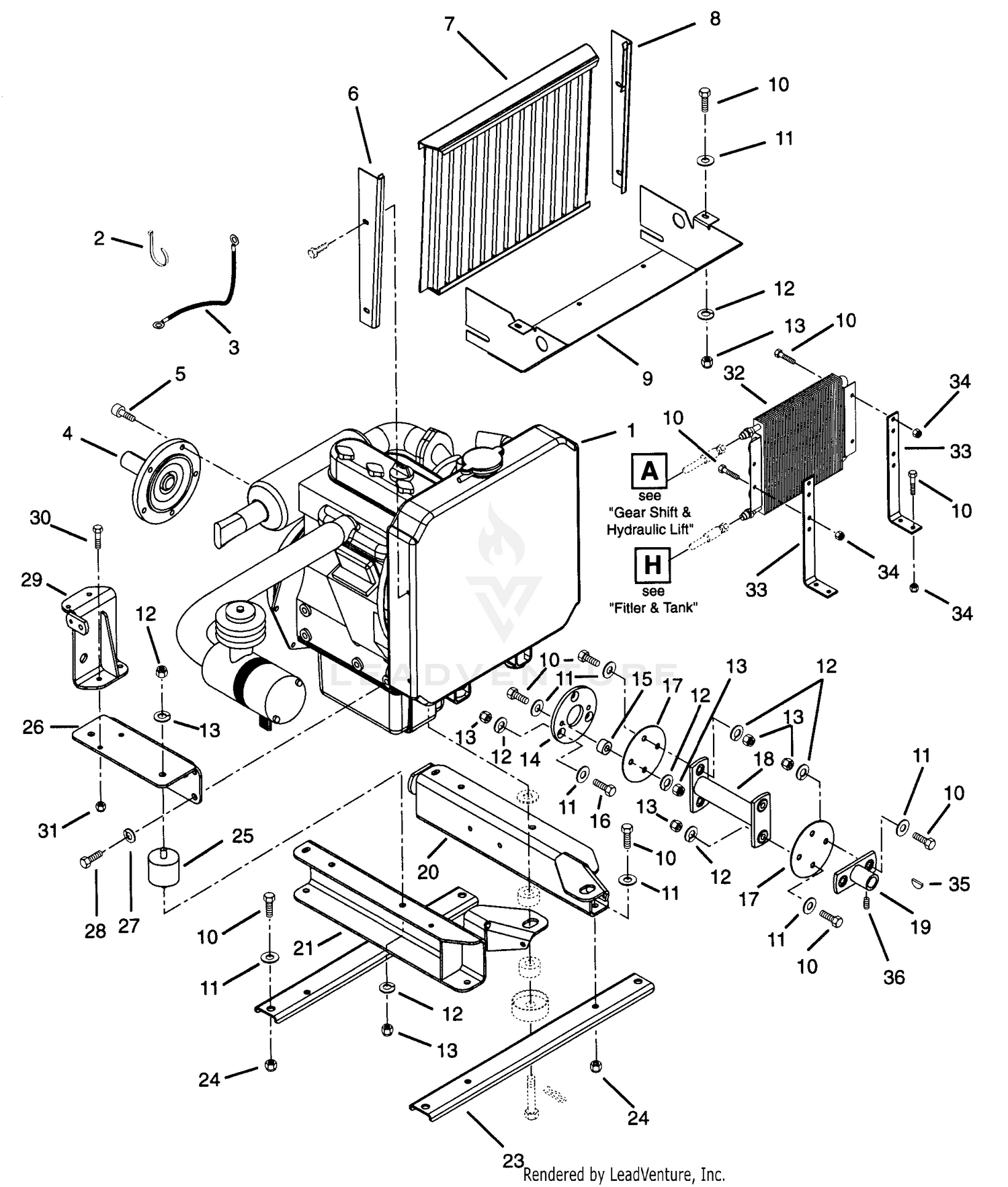

| Ref | Part Number | Description |
|---|
| 1 |
00505500 |
ENGINE - 21HP KUBOTA DIESEL Price: Call Us |
| 2 |
07519900 |
TIE WRAP, BLACK LG 7.31 This part replaces 041634. Price: $3.45 |
| 3 |
09047700 |
GROUND STRAP Price: $7.35 |
| 4 |
00551200 |
STUB SHAFT WELDMENT, CLUTCH Price: $161.65 |
| 5 |
05932500 |
SCR-SKH M8 X 1.25X20 Price: $0.85 |
| 6 |
09060300 |
WLDMT, SCREEN SUPPORT, R.H. Price: $15.00 |
| 7 |
09422600 |
GRILLE, KUBOTA RADIATOR-BLACK This part replaces 00520600. Price: $117.50 |
| 8 |
09060400 |
WLDMT, SCREEN SUPPORT, L.H. Price: $15.00 |
| 9 |
59001600 |
RADIATOR BRACE KIT This part replaces 09061000. Price: $81.80 |
| 10 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 180122. Price: $1.45 |
| 11 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06400200. Price: $1.45 |
| 12 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 120382. Price: $0.95 |
| 13 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 120377. Price: $0.95 |
| 14 |
09050200 |
PLATE, ADAPTER Price: $11.55 |
| 15 |
00518000 |
SPACER .406X.88X.38 Price: $9.45 |
| 16 |
00590700 |
BLT-HEX .38-16X1.00 HEX PN HD Price: $1.60 |
| 17 |
00517800 |
FLEX COUPLING DISC Price: $29.95 |
| 18 |
09050300 |
WLDMT, TRANS DRIVE SHAFT Price: $38.35 |
| 19 |
09050000 |
WLDMT, TRANS COUPLING Price: $41.60 |
| 20 |
00519000 |
WELD'T, LOWER LH ENGINE MOUNT Price: $65.50 |
| 21 |
00518700 |
WELD'T, LOWER RH ENGINE MOUNT Price: $47.80 |
| 22 |
09049600 |
BRACKET, ENGINE MOUNT Price: $19.10 |
| 23 |
09050400 |
BRACKET, ENGINE MOUNT Price: $19.65 |
| 24 |
06500831 |
NUT-NYL .38-16 G5 ZCC This part replaces 456004. Price: $2.95 |
| 25 |
00518600 |
VIBRATION ISOLATOR, KUBOTA Price: Call Us |
| 26 |
00518500 |
WELD'T, UPPER RH ENGINE MOUNT Price: $51.10 |
| 27 |
06304600 |
WSHR-LK M 10MM YZ Price: $1.95 |
| 28 |
05960500 |
BLT-HEX M10-1.25X20 G8.8 ZCC This part replaces 00598700. Price: $3.45 |
| 29 |
00578200 |
WLDMT. FUEL SOLENOID MOUNT This part replaces 00518800. Price: $76.90 |
| 30 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 180079. Price: $1.45 |
| 31 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 413447. Price: $1.45 |
| 32 |
08856200 |
COOLER,OIL This part replaces 053101. Price: $173.45 |
| 33 |
09062300 |
BRKT, OIL COOLER MOUNT (KAW) Price: $4.95 |
| 34 |
06500832 |
NUT-NYL .25-20 G5 ZCC This part replaces 419454. Price: $4.45 |
| 35 |
06601500 |
KEY-WDRF .125X.625X.250 SAE5 Price: $2.45 |
