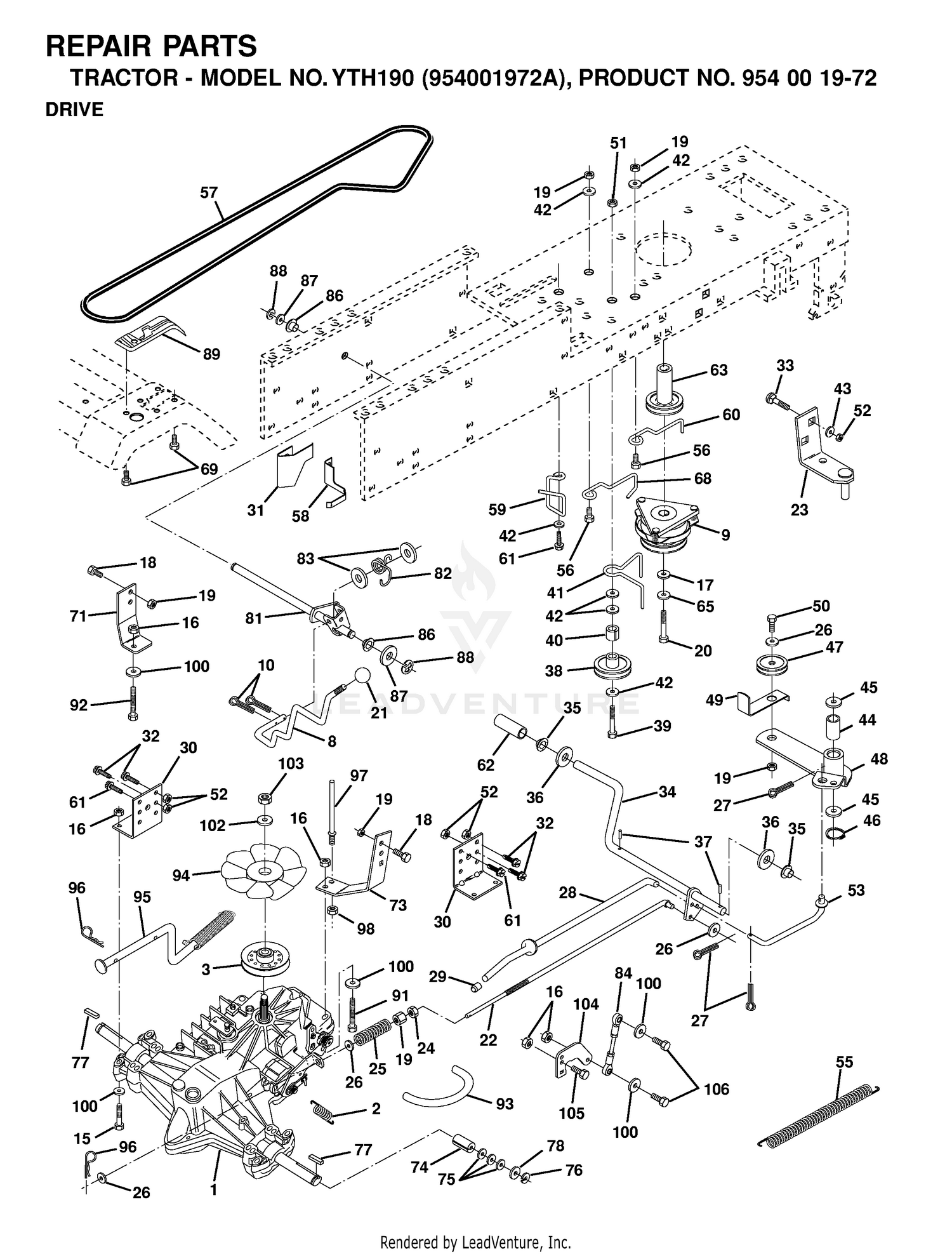

| Ref | Part Number | Description |
|---|
| 1 |
120-8056 |
TUBE ASM Price: $144.29 |
| 1 |
532150071 |
TRANSAXLE ASSEMBLY This part replaces 532144436. Price: $974.57 |
| 2 |
120-8055 |
TUBE ASM Price: $137.84 |
| 2 |
532142431 |
SPRING BRAKE Price: $4.99 |
| 3 |
115-4412 |
TUBE ASM Price: $132.35 |
| 3 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 4 |
115-4408 |
TUBE ASM Price: $126.40 |
| 5 |
115-4406 |
TUBE ASM Price: $119.83 |
| 6 |
115-4409 |
TUBE ASM Price: $115.75 |
| 7 |
115-4405 |
TUBE ASM Price: $119.61 |
| 8 |
136-3414 |
HYDRAULIC TUBE ASM This part replaces 125-4581. Price: $81.81 |
| 8 |
532141002 |
SHIFT ROD Price: $16.58 |
| 9 |
532137140 |
CLUTCH.ELECT.CVX.105 FT/LB. Price: $299.99 |
| 9 |
92-7606-03 |
BRACKET-BULKHEAD Price: $13.64 |
| 10 |
125-4560 |
HOSE ASM Price: $96.58 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
92-7539 |
HOSE-HYD Price: $134.23 |
| 12 |
105-3873-03 |
BRACKET-MOUNT, CLAMP Price: $33.52 |
| 13 |
120-8057 |
TUBE ASM Price: $94.49 |
| 14 |
340-70 |
NUT-LOCK Price: $2.10 |
| 15 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 15 |
596218601 |
Bolts This part replaces 874780544. Price: $3.99 |
| 16 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 17 |
532126197 |
WASHER Price: $6.99 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
105-3993-0P |
BRACKET-TUBE SUPPORT This part replaces 105-3993-03. Price: $40.13 |
| 19 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 20 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170768. Price: $2.99 |
| 21 |
2412-81 |
CLAMP-R Price: $3.39 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
119-4036 |
SCREW-HHF Price: $0.53 |
| 23 |
125-4570 |
TUBE ASM Price: $80.61 |
| 23 |
532137141 |
BRACKET ASM MTG Price: $3.99 |
| 24 |
121-3064 |
TUBE ASM Price: $100.05 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
121-3063 |
TUBE ASM Price: $64.29 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 31 |
532127275 |
KEEPER BELT LH Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 32 |
69-9761 |
PLATE-COVER Price: $6.26 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 33 |
94-8105 |
CLAMP-TUBE Price: $3.17 |
| 34 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 34 |
532149001 |
SHAFT PEDAL FOOT Price: $27.99 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
532109070 |
BELT KEEPER LT NLA Price: $6.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 44 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 45 |
532110812 |
WASHER LT Price: $3.10 |
| 46 |
812000039 |
KLIP RING Price: $4.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532123789 |
ARM IDLER Price: $13.07 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 58 |
532140470 |
KEEPER BELT LH Price: $6.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 60 |
532121218 |
KEEPER BELT ENGLH Price: $2.86 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532140189 |
PULLEY CLU ELEC Price: $34.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 68 |
532105730 |
KEEPER,BLT ENG LT Price: $3.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 71 |
532140158 |
STRAP LH TORQUE Price: $5.99 |
| 73 |
532140157 |
STRAP RH TORQUE Price: $2.42 |
| 74 |
532121199 |
SPACER SPLIT Price: $3.12 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532156046 |
SHAFT ASSY This part replaces 532140154. Price: $15.23 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532140548 |
ROD.TIE.BALL.4.75 Price: $32.99 |
| 86 |
532071208 |
BUSHING.STEERING.ROD LTB-WSL Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532153762 |
KIT CONS HYD ADJ YT GT This part replaces 532139989. Price: $21.02 |
| 91 |
596434801 |
Bolts This part replaces 874780536. Price: $2.99 |
| 92 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 93 |
532142564 |
LINE FUEL HYD 4" Price: $3.99 |
| 94 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 95 |
532167696 |
CONTROL.ASM.BYPASS.HYDRO.99 This part replaces 532144643. Price: $9.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 97 |
532140469 |
KEEPER BELT RH Price: $2.99 |
| 98 |
873510600 |
NUT Price: $4.99 |
| 100 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 102 |
532141322 |
WASHER Price: $3.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 104 |
532140156 |
CONTROL ARM Price: $4.99 |
| 105 |
871070516 |
SCREW Price: $3.99 |
| 106 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
