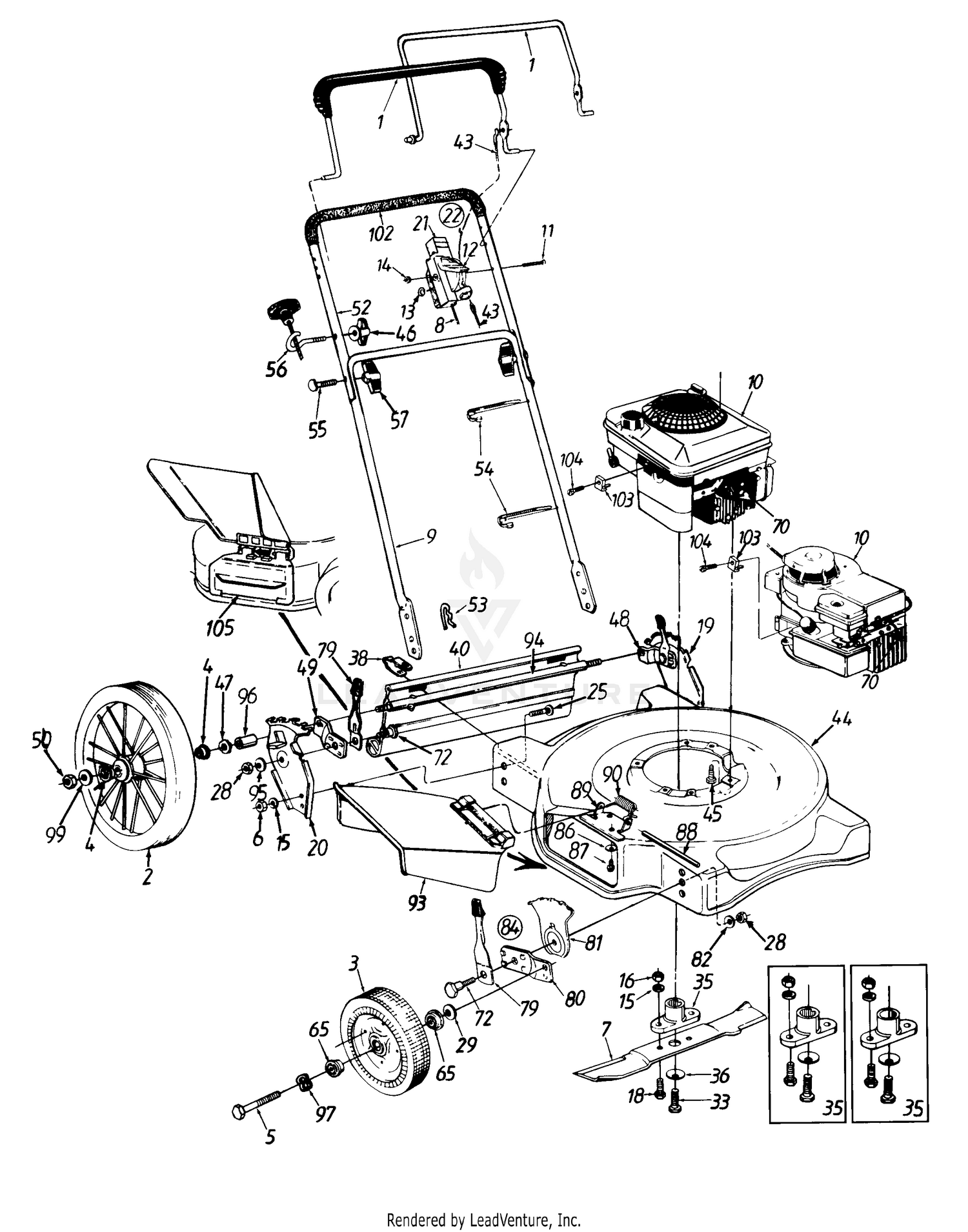

| Ref | Part Number | Description |
|---|
| 2 |
734-1661 |
WHEEL ASSEMBLY W/TIRE STEEL SPOKE Not Available Price: |
| 3 |
N/A |
Front Wheel Ass'y. |
| 4 |
941-0484 |
BALL BEARING This part replaces 741-0484. Price: $6.87 |
| 5 |
738-0102 |
Front Axle Bolt Price: $9.22 |
| 6 |
712-0241 |
Hex Nut 3/8-24 Thd. This part replaces 712-0328. Price: $3.86 |
| 8 |
946-0671A |
Throttle Wire 55" Lg. This part replaces 746-0842. Price: $13.09 |
| 9 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 10 |
N/A |
Engine |
| 11 |
710-0605 |
Oval C-Sunk Mach. Scr. Price: $3.85 |
| 12 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 13 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 14 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 16 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 18 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 19 |
682-0517-0637 |
HANDLE BRACKET ASSEMBLY (LH) (POWDER BLACK) Not Available This part replaces 682-0517. Price: |
| 20 |
682-0518 |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 21 |
946-0875 |
Throttle Body This part replaces 646-0875. Price: $8.64 |
| 25 |
710-0793 |
SCREW 3/8-24 x .80 Not Available Price: |
| 29 |
736-0105 |
Bell-Wash..400" I.D. x .88" Price: $3.96 |
| 33 |
710-1044 |
Hex Bolt 3/8-24 x 1.5" Lg. Price: $3.48 |
| 35 |
753-0484 |
Blade Adapter Kit Price: $21.69 |
| 36 |
736-0452 |
Bell-Wash..39" I.D. Price: $4.05 |
| 38 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 40 |
731-1026 |
TRAILSHED Not Available Price: |
| 44 |
682-0221 |
DECK ASSEMBLY-22IN Not Available Price: |
| 45 |
710-0654A |
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. Price: $3.75 |
| 46 |
720-0279 |
Handle Knob 1/4-20 Thd. Price: $3.93 |
| 47 |
936-0504 |
Wave Washer.510 ID x.750 OD This part replaces 736-0504. Price: $3.90 |
| 48 |
782-0519A |
PIVOT BAR Not Available This part replaces 782-0519. Price: |
| 49 |
782-0520 |
PIVOT BAR Not Available Price: |
| 50 |
912-3020 |
Top Lock Jam Nut 3/8-16 This part replaces 712-3020. Price: $5.50 |
| 52 |
749-0538C |
UPPER HANDLE Not Available Price: |
| 53 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 54 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 55 |
710-1174 |
Curved Hd. Bolt 5/16-18 x 2" Lg. Price: $6.28 |
| 56 |
710-1205 |
Rope Guide Price: $3.53 |
| 57 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 65 |
N/A |
Bearing |
| 72 |
738-0507B |
Shoulder Bolt .50" Dia. Price: $3.86 |
| 79 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 80 |
15262B |
Pivot Bar Price: $13.59 |
| 81 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 82 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 86 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 87 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 88 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 89 |
17032A |
PLATE-ADAPTER Not Available This part replaces 17032. Price: |
| 90 |
932-0593 |
Torsion Spring This part replaces 732-0593. Price: $4.24 |
| 93 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
| 94 |
738-0878 |
AXLE-RR Not Available Price: |
| 95 |
736-0331 |
Bell-Wash. 39" I.D. x 1.13" Price: $3.50 |
| 96 |
950-0151 |
Spacer .550 ID x .750 OD This part replaces 750-0151. Price: $9.70 |
| 99 |
736-3050 |
Fl-Wash. 406" I.D. x .81" Price: $3.90 |
