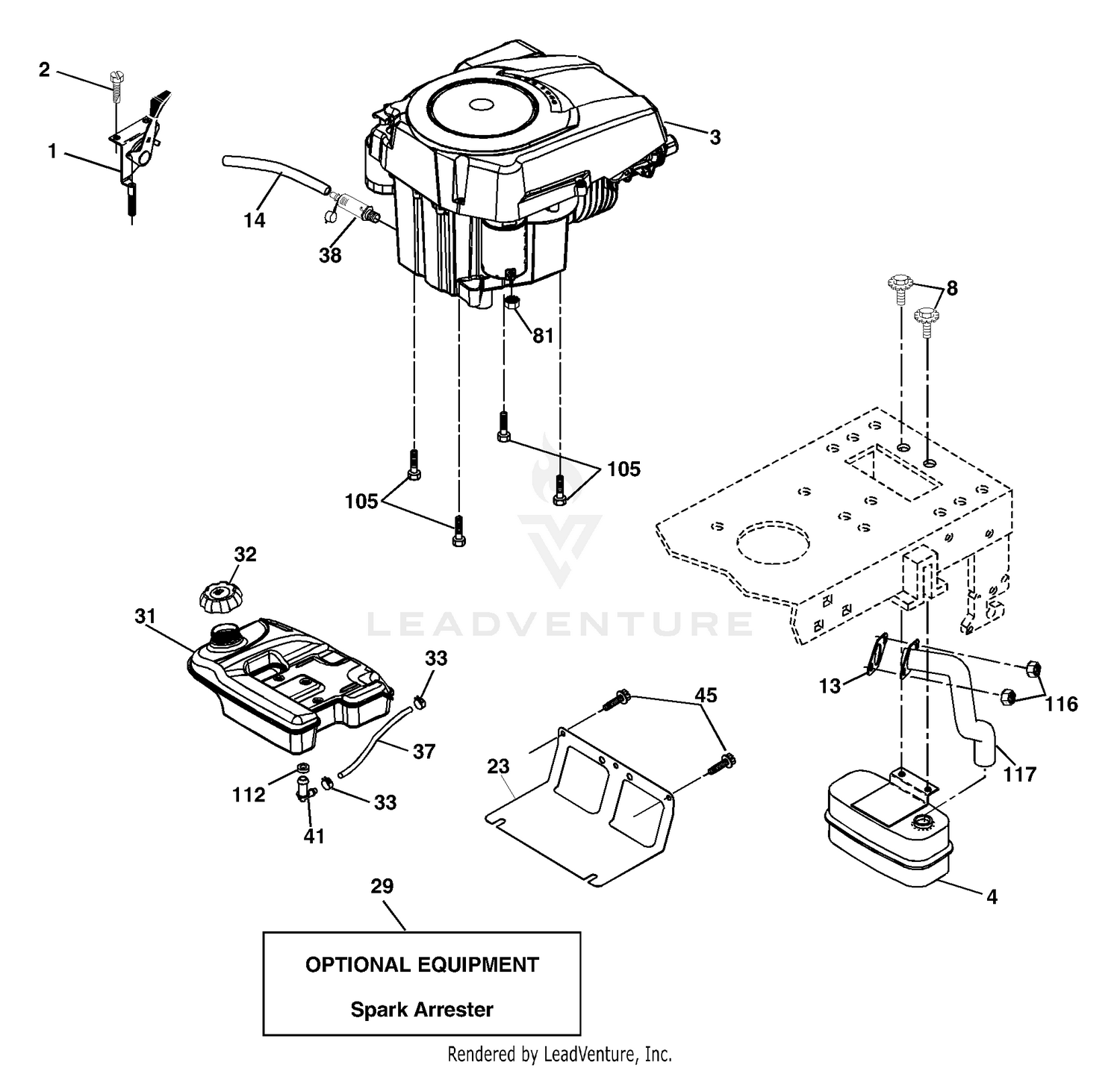

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 13 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
