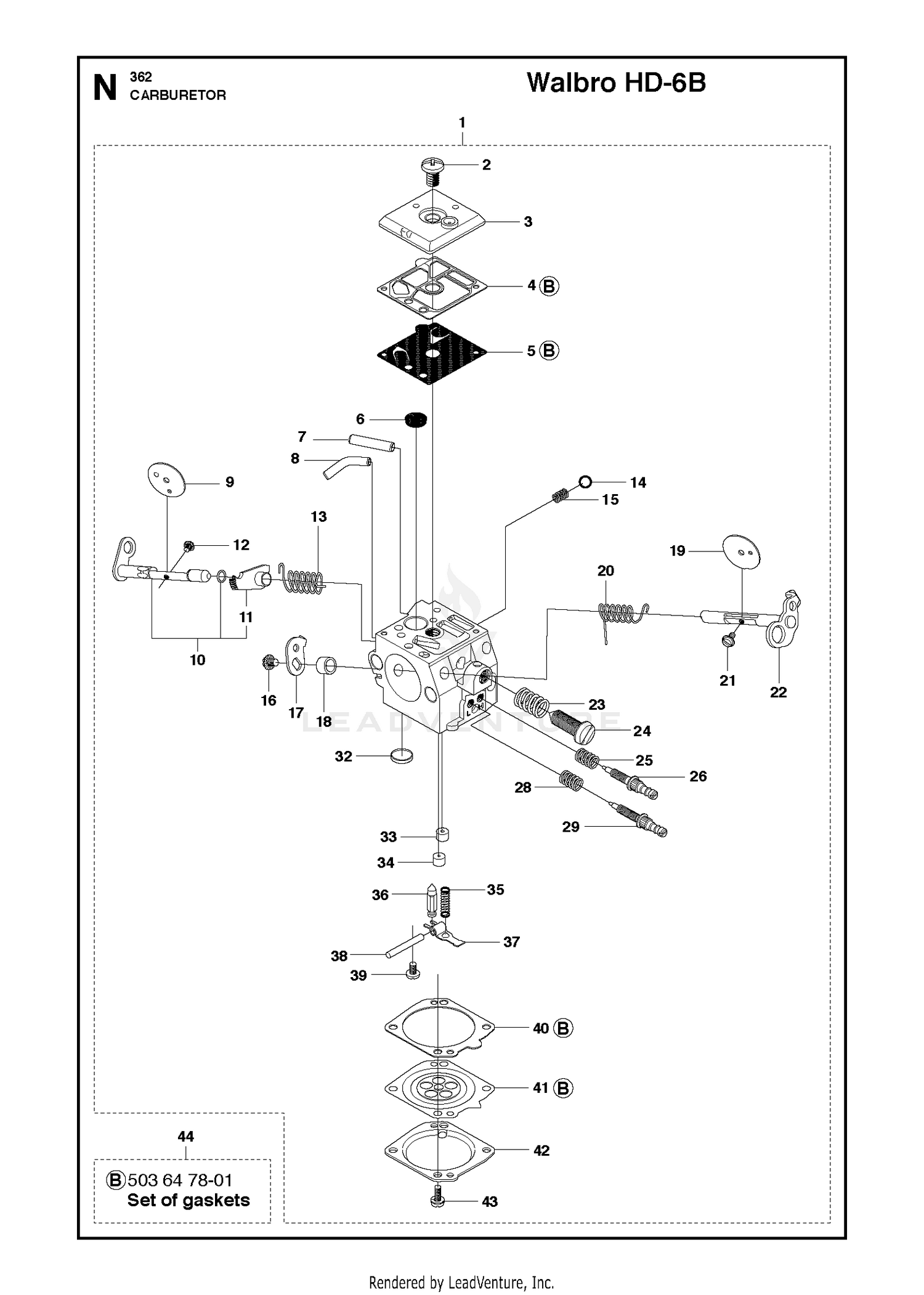

CARBURETOR 4
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 536033701 | CARBRETOR HD-12C H372 This part replaces 503281804. Price: $99.99 |
| 2 | 501466901 | SCREW Price: $7.99 |
| 3 | 503799801 | COVER Price: $5.99 |
| 4 | 501666901 | GASKET, PUMP SIDE Price: $14.99 |
| 5 | 502254701 | PUMP DIAPHRAGM Price: $19.99 |
| 6 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 7 | 503855901 | RP NIPPLE Price: $17.99 |
| 8 | 503801401 | TUBE Price: $3.99 |
| 9 | 503855801 | CHOKE FLAP Price: $3.99 |
| 10 | 537019101 | CHOKE SHAFT Price: $14.99 |
| 11 | 537018901 | LEVER Price: $3.99 |
| 12 | 501468701 | SCREW Price: $6.99 |
| 13 | 537019001 | SPRING Price: $8.99 |
| 14 | 501468501 | BALL Price: $6.99 |
| 15 | 501468401 | SPRING Price: $6.99 |
| 16 | 501468701 | SCREW Price: $6.99 |
| 17 | 503799601 | LEVER Price: $3.99 |
| 18 | 503801501 | BUSHING Price: $11.99 |
| 19 | 503800001 | THROTTLE FLAP Price: $4.99 |
| 20 | 503800901 | SPRING Price: $8.99 |
| 21 | 530035015 | SCREW SHUTTERS Price: $2.99 |
| 22 | 503799901 | SHAFT Price: $11.99 |
| 23 | 530035121 | IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 24 | 503800801 | SCREW Price: $19.99 |
| 25 | 501667701 | SPRING Price: $7.99 |
| 26 | 503801101 | SCREW Price: $4.99 |
| 28 | 501667701 | SPRING Price: $7.99 |
| 29 | 504027213 | IDLING SCREW Price: $5.99 |
| 32 | 503574201 | WELCH PLUG Price: $6.99 |
| 33 | 503800401 | NOZZLE Price: $3.99 |
| 34 | 503688201 | JET Price: $5.99 |
| 36 | 503563401 | INLET NEEDLE Price: $14.99 |
| 37 | 501668301 | LEVER Price: $14.99 |
| 38 | 505520125 | FULCRUM PIN Price: $6.99 |
| 39 | 505316717 | SCREW Price: $6.99 |
| 40 | 504130905 | GASKET Price: $2.99 |
| 41 | 503800701 | GASKET Price: $64.99 |
| 42 | 537077601 | IMPULSE COVER Price: $4.99 |
| 43 | 503584601 | SCREW This part replaces 503108701. Price: $2.99 |
