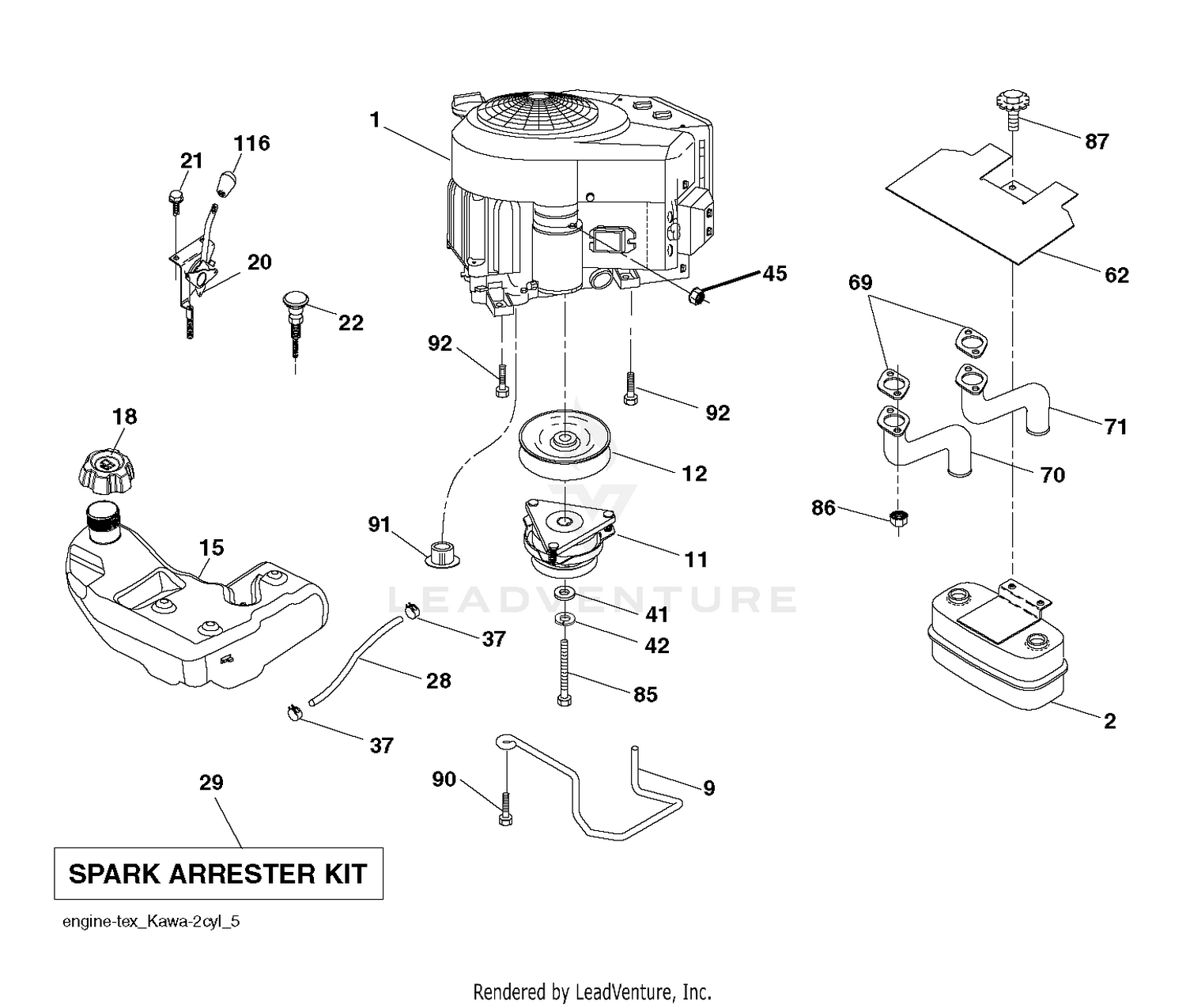

| Ref | Part Number | Description |
|---|
| 1 |
77-3300 |
STUD Price: $2.76 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
77-3310 |
GASKET Price: $10.76 |
| 3 |
94-3215 |
MANIFOLD-INTAKE Price: $495.94 |
| 4 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 5 |
77-3320 |
NUT-HEX Price: $1.36 |
| 6 |
77-3340 |
MANIFOLD-EXHAUST Price: $492.44 |
| 7 |
94-3164 |
WASHER-SPRING Price: $1.20 |
| 8 |
94-3216 |
CAPSCREW Price: $9.71 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
94-3217 |
CAPSCREW Price: $4.97 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
532400021 |
TANK.FUEL.SIDE-FILL.3.NON-EPA Price: $99.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532430217. Price: $14.99 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
