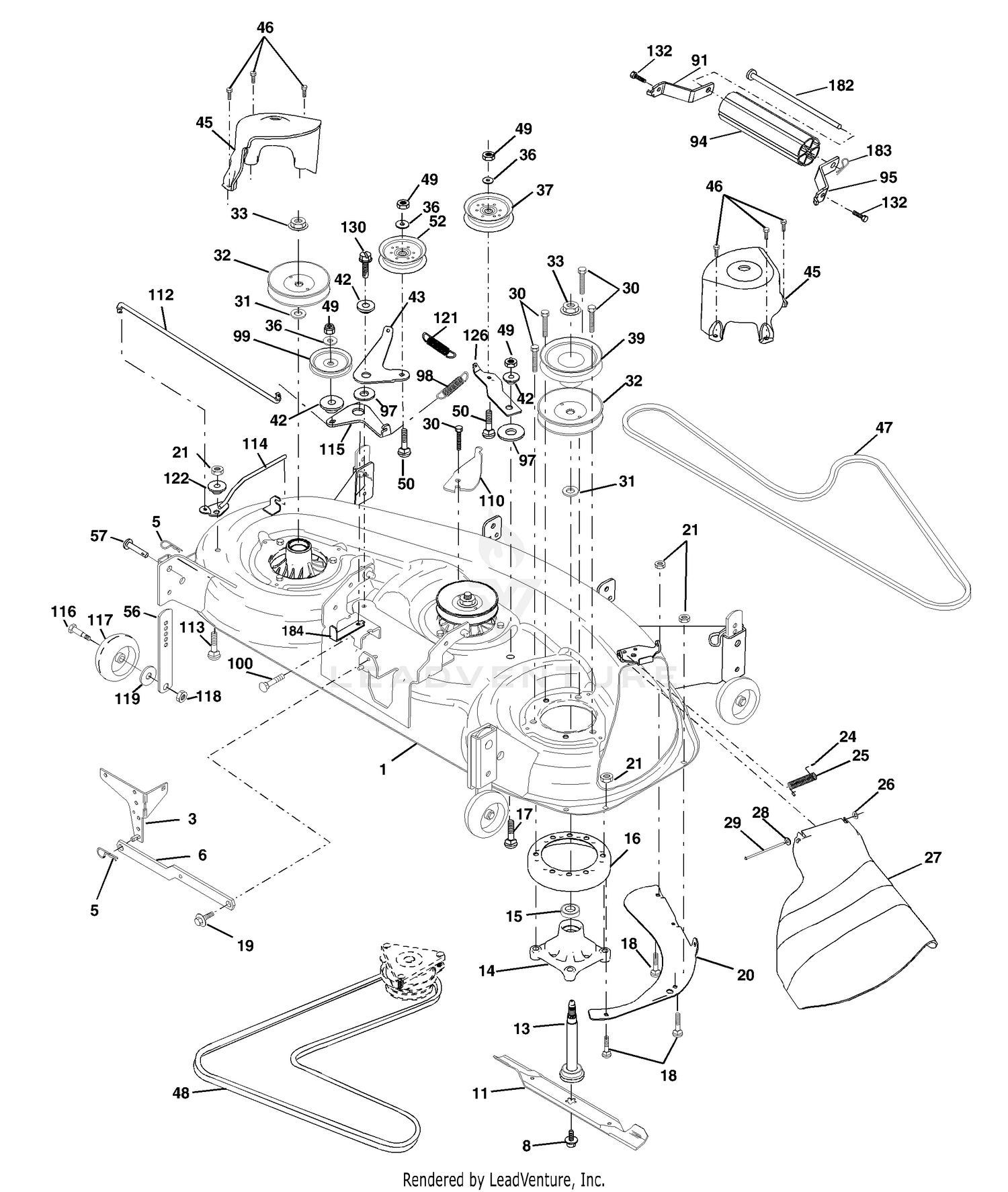

| Ref | Part Number | Description |
|---|
| 1 |
180358 |
Deck Weldment Mower 48 Price: Call Us |
| 1 |
94-3004 |
SHAFT-DRIVE, SPLINED Price: $564.48 |
| 2 |
105-2851 |
BACKPLATE ASM Price: $613.67 |
| 3 |
178915 |
Bracket Asm., Sway Bar Price: Call Us |
| 4 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 6 |
178024 |
Sway Bar Deck Price: Call Us |
| 6 |
76-7010 |
RING-RETAINING This part replaces 60-6260. Price: $3.66 |
| 7 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 9 |
105-3331 |
SEAL-SHAFT Price: $35.63 |
| 10 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 11 |
180054 |
Blade Price: Call Us |
| 11 |
76-6950 |
RACE-THRUST This part replaces 60-6160. Price: $25.65 |
| 12 |
76-6980 |
O-RING Price: $11.28 |
| 13 |
174360 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 13 |
94-3003 |
PLATE-VALVE Price: $515.64 |
| 14 |
174358 |
Mandrel Asm. Price: Call Us |
| 14 |
76-6960 |
BEARING-THRUST This part replaces 60-6170. Price: $23.23 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 16 |
174493 |
Stripper Mandrel Deck Price: Call Us |
| 17 |
72110610 |
Bolt RDHD Sq Neck 3/8-16 x 1.25 Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Hd, Shoulder 5/16-18 Price: Call Us |
| 20 |
174378 |
Baffle, Vortex Mower Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
180655X428 |
Deflector Shield Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
174378 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
177865 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 37 |
177968 |
Pulley, Idler, Flat Price: Call Us |
| 39 |
174375 |
Pulley, Idler, Driven Price: Call Us |
| 42 |
122052X |
Spacer, Retainer Price: Call Us |
| 43 |
174373 |
Arm, Idler Secondary Price: Call Us |
| 45 |
174343 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
174369 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
174368 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 50 |
72110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 52 |
175820 |
Pulley Idler Flat Price: Call Us |
| 56 |
155986 |
Bar Pnt Adj. Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 91 |
180534 |
Bracket Asm N Roller LH Price: Call Us |
| 94 |
176066 |
Roller Nose 48" Price: Call Us |
| 95 |
180535 |
Bracket Asm N Roller RH Price: Call Us |
| 97 |
133943 |
Washer Hardened Price: Call Us |
| 98 |
179479 |
Spring Primary Drive Price: Call Us |
| 99 |
175080 |
Pulley Idler "V" Price: Call Us |
| 100 |
72110616 |
Bolt RDHD Sqnk 3/8-16 UNC x 2 Price: Call Us |
| 110 |
175016 |
Arm Spring Secondary Price: Call Us |
| 112 |
174387 |
Link Tension Relief Lever Price: Call Us |
| 113 |
72110508 |
Bolt Carr. 5/16-18 x 1 Price: Call Us |
| 114 |
174384 |
Tension Asm. Relief Lever Price: Call Us |
| 115 |
174609 |
Arm Spring Tension Relief Price: Call Us |
| 116 |
137644 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 121 |
174371 |
Spring Secondary Drive Price: Call Us |
| 122 |
174606 |
Bushing Pivot Tension Relief Price: Call Us |
| 126 |
174372 |
Arm, Idler, Primary Deck Price: Call Us |
| 130 |
17000616 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 132 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 182 |
179127 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
173979 |
Keeper Belt Idler Price: Call Us |
| 180939 |
Replacement |
Mower, Complete Price: Call Us 180939 |
