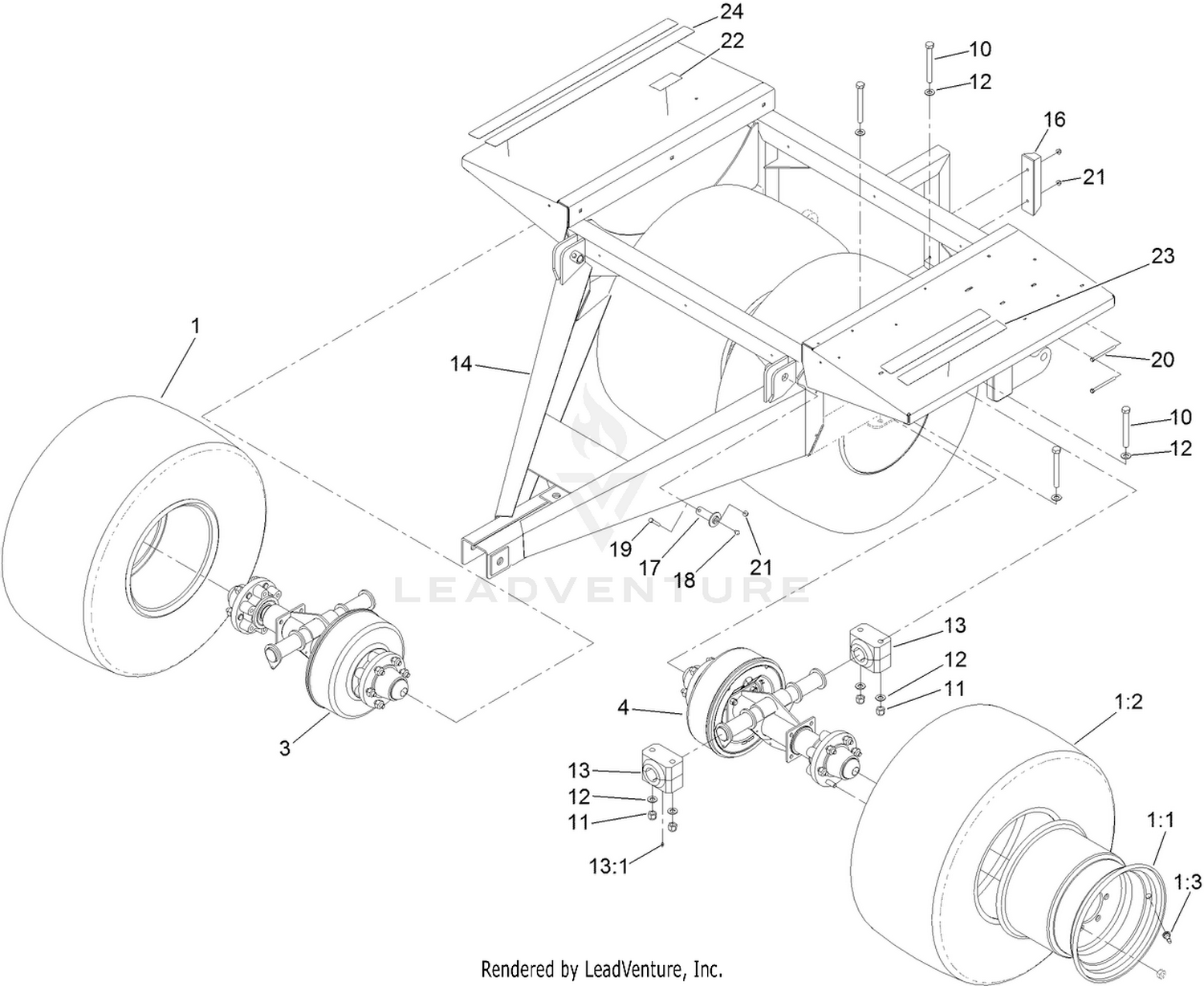

Wheel and Frame Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-9410 | WHEEL AND TIRE ASM Price: $1,513.31 |
| 3 | 120-9401 | RH SHAFT ASM Price: $3,721.46 |
| 4 | 120-9402 | LH SHAFT ASM Price: $3,747.42 |
| 10 | 120-0923 | SCREW-HH Price: $9.09 |
| 11 | 120-0924 | NUT-HEX Price: $1.15 |
| 12 | 119-1868 | WASHER Price: $2.49 |
| 13 | T60111196 | BEARING-POLYURETHANE Price: $362.66 |
| 14 | 125-0166-01 | FRAME Price: $2,609.11 |
| 16 | T62011021 | BUMPER-RUBBER Price: $36.01 |
| 17 | T36012070-01 | PIN-HINGE Price: $85.77 |
| 18 | 302-2 | FITTING-GREASE Price: $1.89 |
| 19 | 322-10 | SCREW-HH Price: $0.70 |
| 20 | 322-19 | SCREW-HH Price: $5.99 |
| 21 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 22 | 119-6835 | DECAL-JACK Price: $6.07 |
| 23 | T36013050 | THREAD-WALK, SAFETY Price: $27.05 |
