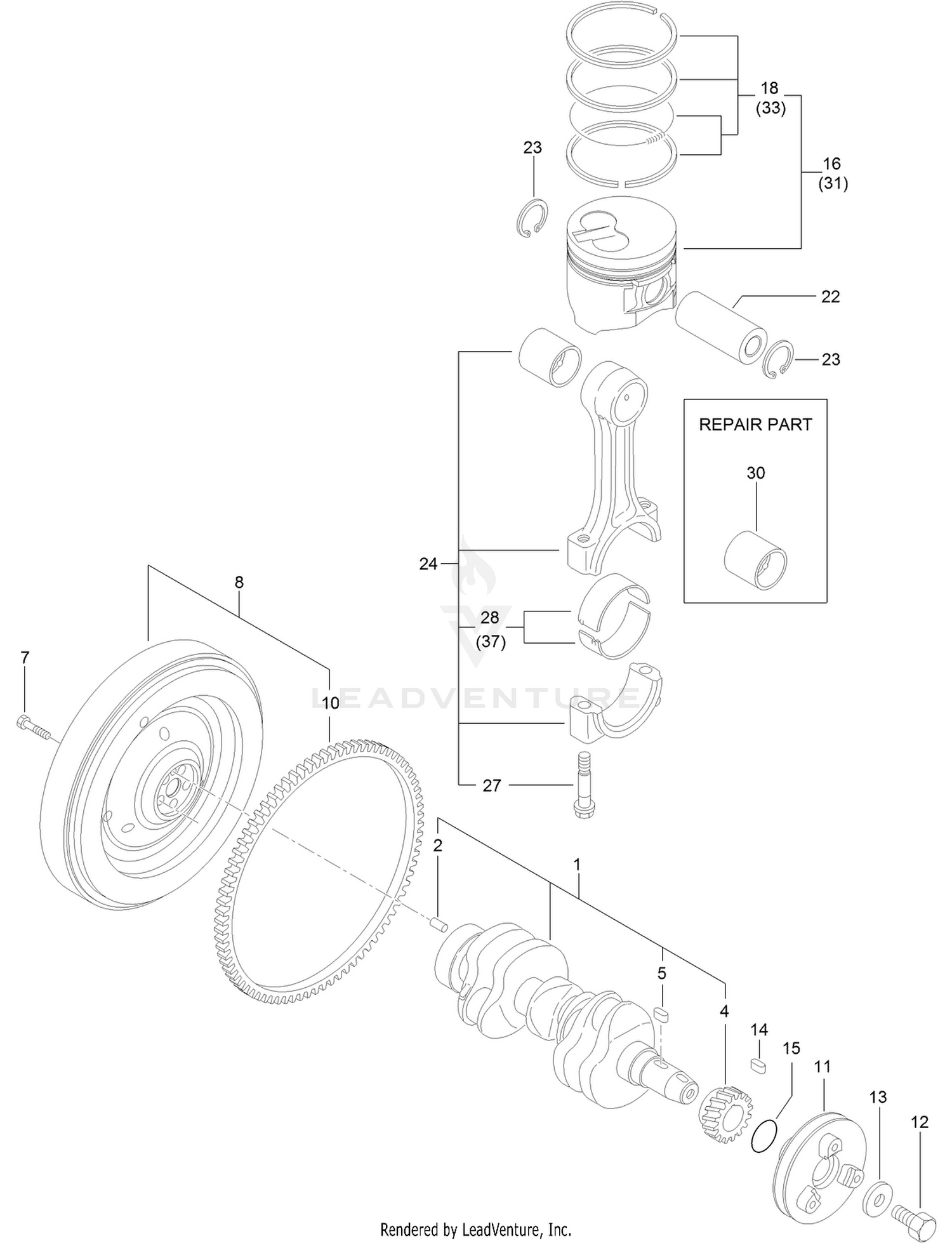

Crankshaft and Piston Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-1405 | CRANKSHAFT ASM Price: $1,359.22 |
| 2 | 125-6995 | PIN Price: $5.45 |
| 4 | 135-4153 | GEAR-CRANKSHAFT Price: $237.99 |
| 5 | 135-4154 | KEY Price: $3.19 |
| 7 | 125-6951 | BOLT Price: $6.77 |
| 8 | 134-1392 | FLYWHEEL ASM Price: $1,068.49 |
| 10 | 125-6943 | GEAR Price: $137.73 |
| 11 | 134-1445 | V-PULLEY Price: $286.46 |
| 12 | 134-1391 | BOLT-FLANGE Price: $16.25 |
| 13 | 134-1406 | WASHER Price: $78.11 |
| 14 | 135-4154 | KEY Price: $3.19 |
| 15 | 134-1538 | O-RING Price: $2.49 |
| 16 | 134-1407 | PISTON ASM Price: $186.89 |
| 18 | 134-1409 | PISTON RING SET Price: $81.19 |
| 22 | 134-1408 | PIN-PISTON Price: $52.59 |
| 23 | 135-4166 | RING Price: $2.19 |
| 24 | 134-1412 | CONNECTING ROD ASM Price: $310.50 |
| 27 | 135-4168 | BOLT-ROD, CONNECTING Price: $12.99 |
| 28 | 135-4169 | BEARING-PIN, CRANK Price: $33.99 |
| 30 | 135-4170 | BEARING-PIN, PISTON Price: $13.99 |
| 31 | 134-1411 | PISTON ASM (0.25 OS) Price: $208.35 |
| 33 | 134-1410 | RING SET (0.25 OS) Price: $218.45 |
