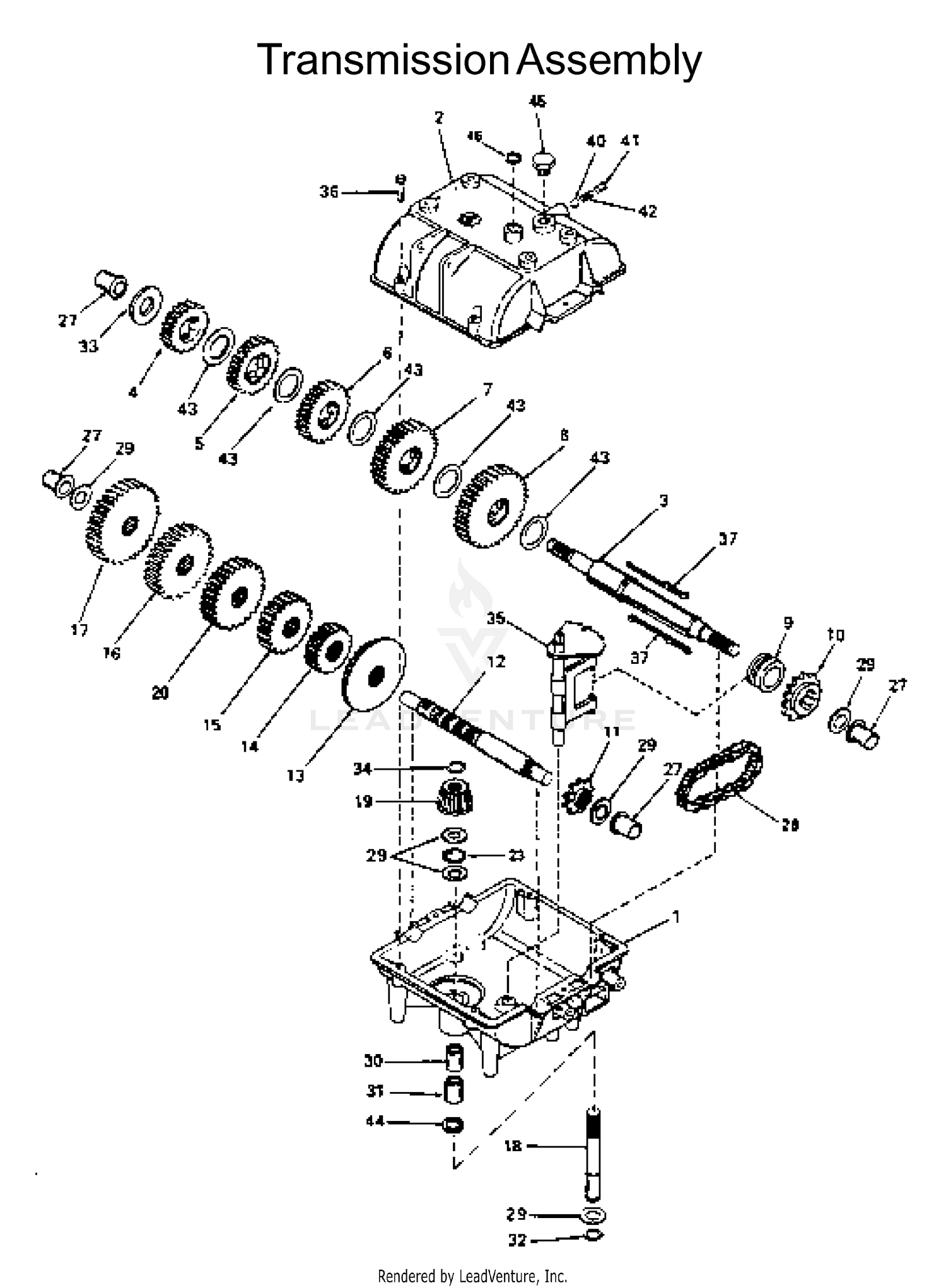

TRANSMISSION
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 539102075 | TRANSMISSION CASE Price: $119.60 |
| 2 | 539100371 | TRANSMISSION COVER Price: $83.34 |
| 3 | 539102179 | OUTPUT & BRAKE SHAFT Price: $24.99 |
| 4 | 539102077 | SPUR GEAR (27 TEETH) Price: $71.69 |
| 5 | 539100377 | SPUR GEAR (30 TEETH) Price: $43.35 |
| 6 | 539102078 | SPUR GEAR (32 TEETH) Price: $78.05 |
| 7 | 539100376 | SPUR GEAR (35 TEETH) Price: $53.70 |
| 8 | 539102079 | SPUR GEAR (37 TEETH) Price: $103.11 |
| 9 | 539977561 | SHIFT COLLAR Price: $14.97 |
| 10 | 539977562 | SPROCKET (18 TEETH) Price: $25.44 |
| 11 | 539977563 | SPROCKET (9 TEETH) Price: $24.99 |
| 12 | 539977564 | COUNTERSHAFT Price: $120.63 |
| 13 | 539977565 | GEAR, BEVEL (42 TEETH) Price: $128.05 |
| 14 | 539102080 | SPUR GEAR (12 TEETH) Price: $28.95 |
| 15 | 539102081 | SPUR GEAR (15 TEETH) Price: $28.97 |
| 16 | 539100382 | SPUR GEAR (20 TEETH) Price: $70.31 |
| 17 | 539102082 | SPUR GEAR (23 TEETH) Price: $99.26 |
| 18 | 539977571 | INPUT SHAFT Price: $49.99 |
| 19 | 539100372 | INPUT BEVEL PINION Price: $56.10 |
| 20 | 539102083 | SPUR GEAR (18 TEETH) Price: $87.24 |
| 23 | 539100374 | THRUST BEARING Price: $11.66 |
| 27 | 539977573 | BUSHING, FLANGED Price: $14.99 |
| 28 | 539977574 | CHAIN, ROLLER #41 24 LINK Price: $35.98 |
| 30 | 539977592 | NEEDLE BEARING Price: $69.99 |
| 31 | 539977576 | NEEDLE BEARING Price: $74.99 |
| 32 | 539977577 | RETAINING RING Price: $2.26 |
| 33 | 539102084 | WASHER, THRUST Price: $2.64 |
| 34 | 539977579 | RETAINING RING Price: $2.99 |
| 35 | 539102180 | SHIFT ROD & FORK Price: $32.34 |
| 36 | 539977581 | W-FLANGED HEX HD THREADFOR Price: $4.69 |
| 37 | 539977582 | KEY Price: $24.70 |
| 40 | 539977583 | STEEL BALL 5/16" Price: $1.91 |
| 41 | 539977584 | SET SCREW 3/8-16 X 3/8" Price: $3.03 |
| 42 | 539977585 | SPRING Price: $2.59 |
| 43 | 539977586 | WASHER THRUST Price: $3.43 |
| 44 | 539977587 | O RING Price: $4.54 |
| 45 | 539100148 | SWITCH, TRANS Price: $34.99 |
| 46 | 539100388 | SEAL, SQUARE CUT Price: $1.91 |
| 47 | 539102162 | TRANSMISSION WB Price: $449.99 |
