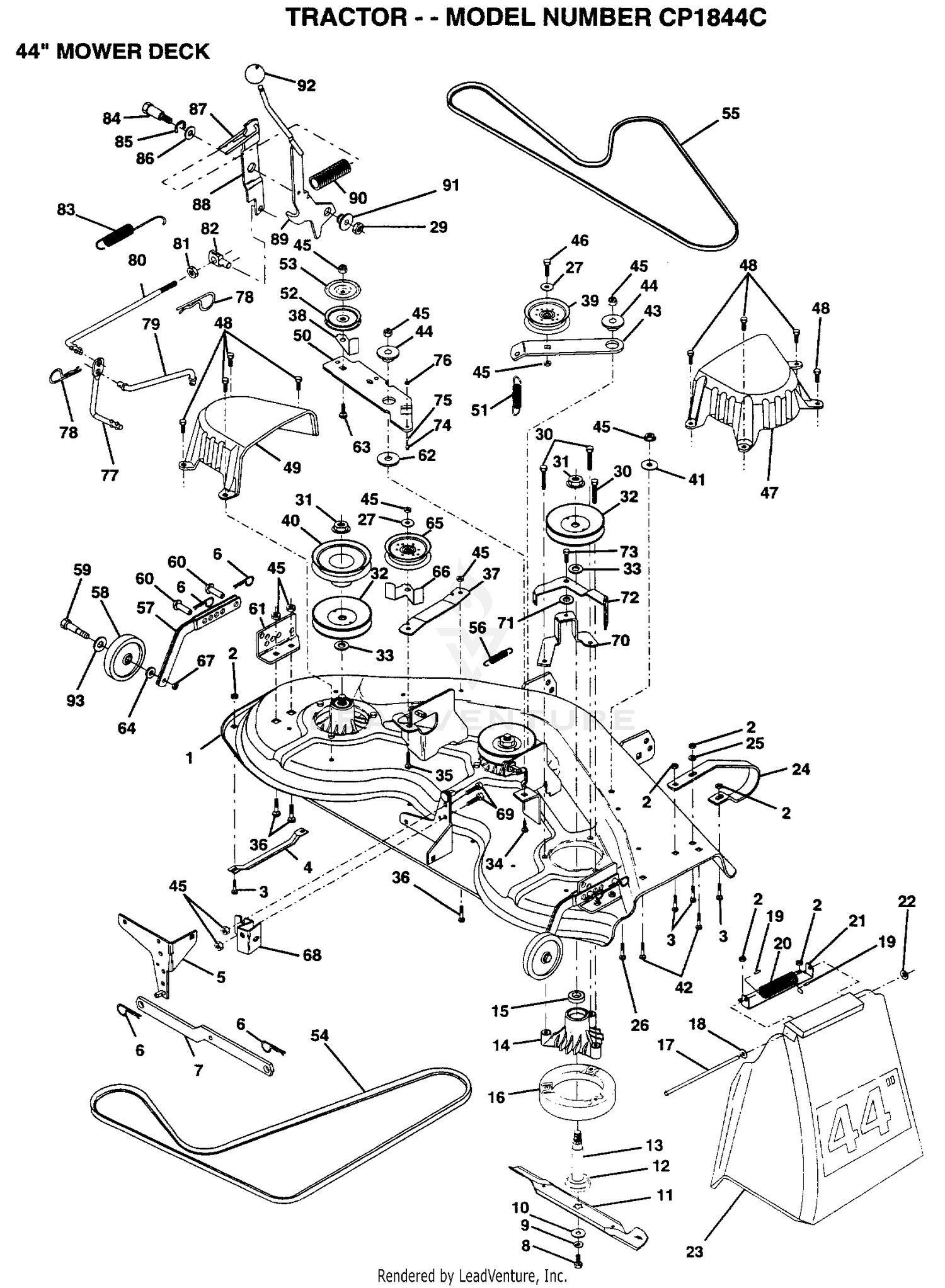

MOWER DECK

MOWER DECK

Parts (80)

RefPart NumberDescription
2 73680500 SUB= 73690500 Price: Call Us
3 72110506 SUB= 72270506 Price: Call Us
4 7631J RUNNER-LH M Price: Call Us
5 138457 BRKT.ASM.SW.44/50 Price: Call Us
6 4939M SUB= 85902 Price: Call Us
7 130832 SUB= 130833 Price: Call Us
8 850857 BLADE BOLT Price: Call Us
9 10030600 SUB= 10040600 Price: Call Us
10 140296 WASHER.HARD.BLADE Price: Call Us
12 129895 BEARING.BALL Price: Call Us
13 137553 SHAFT.ASM.W/BRNG Price: Call Us
14 137152 HOUSING.MAND.44.V Price: Call Us
15 110485X BEARING Price: Call Us
16 140329 STRIPPER RND MWR Price: Call Us
17 106735X ROD-HINGE T Price: Call Us
18 19111016 WASHER Price: Call Us
19 105304X CAP-SLEEVE LT Price: Call Us
20 123713X SPRING TORSION Price: Call Us
21 137607 BRKT DEFLECTOR Price: Call Us
22 110452X NUT PUSH M Price: Call Us
23 109785X DEFLECTOR SHIELD Price: Call Us
24 136321 RUNNER.RH Price: Call Us
25 19111216 WASHER M Price: Call Us
27 19131316 WASHER Price: Call Us
29 73800600 NUT Price: Call Us
30 138776 SUB= 157722 Price: Call Us
31 137266 SUB= 139729 Price: Call Us
32 129861 SUB= 153535 Price: Call Us
33 129963 WASHER Price: Call Us
34 72140610 BOLT.3/8-14X1.25 Price: Call Us
35 72110616 BOLT Price: Call Us
36 72110608 BOLT D Price: Call Us
37 137166 STIFFENER.ARM.IDL Price: Call Us
38 140365 KEEPER BELT IDLER Price: Call Us
39 131494 FLAT IDLER PULLEY Price: Call Us
42 72140506 BOLT Price: Call Us
44 122052X SPACER RETAINER Price: Call Us
45 73680600 SUB= 73690600 Price: Call Us
46 74760628 BOLT Price: Call Us
48 137729 SCREW.1/4-20X5/8 Price: Call Us
49 136574 COVER.MANDREL.LH Price: Call Us
50 137272 ARM.IDLER.PRIMARY Price: Call Us
52 139245 PULLEY.IDLER.VGRO Price: Call Us
53 137789 SHIELD.IDLER.44.V Price: Call Us
54 142686 BELT-V MOWER PRIM Price: Call Us
55 131290 BELT-V.88.12.MW Price: Call Us
57 136577 BAR.ASM.GUAGE.WHL Price: Call Us
58 105455X WHEEL.GAGE.BLK.PL Price: Call Us
59 4898H BOLT M Price: Call Us
60 139031 PIN.CLEVIS Price: Call Us
61 136573 BRACKET.GUAGE.WHL Price: Call Us
62 133943 HARDENED WASHER Price: Call Us
63 72110612 BOLT.3/8-16X1.50 Price: Call Us
64 19121414 WASHER Price: Call Us
65 102403X IDLER-FLAT T Price: Call Us
66 139622 SUB= 918139622 Price: Call Us
67 73930600 LOCKNUT Price: Call Us
68 140364 BRACKET PVT MCH Price: Call Us
69 74760612 SUB= 74780612 Price: Call Us
71 133944 HARD SMALL WASHER Price: Call Us
72 140367 ARM BRAKE ASM Price: Call Us
73 139888 BOLT.SHLD.5/16-18 Price: Call Us
74 133940 SUB= 151785 Price: Call Us
75 131340 SHOULDER BOLT Price: Call Us
76 69180 LOCKNUT Price: Call Us
77 133551 PIVOT ROD Price: Call Us
78 4497H RETAINER M Price: Call Us
79 140363 ROD CLUTCH SECON Price: Call Us
80 143354 ROD.CLUTCH.PRIM44 Price: Call Us
81 73350600 NUT Price: Call Us
82 142028 TRUNION ADJ Price: Call Us
83 131870 RETURN SPRING Price: Call Us
84 128903 SHOULDER BOLT Price: Call Us
85 12000029 RING Price: Call Us
86 121748X WASHER Price: Call Us
87 127845 SPRING KEEPER Price: Call Us
88 127847 CLUTCH ARM SECOND Price: Call Us
89 140335 LEVER.CLU.PRIM. Price: Call Us
90 128759 SUB= 918128759 Price: Call Us
91 127498 BUSHING Price: Call Us
