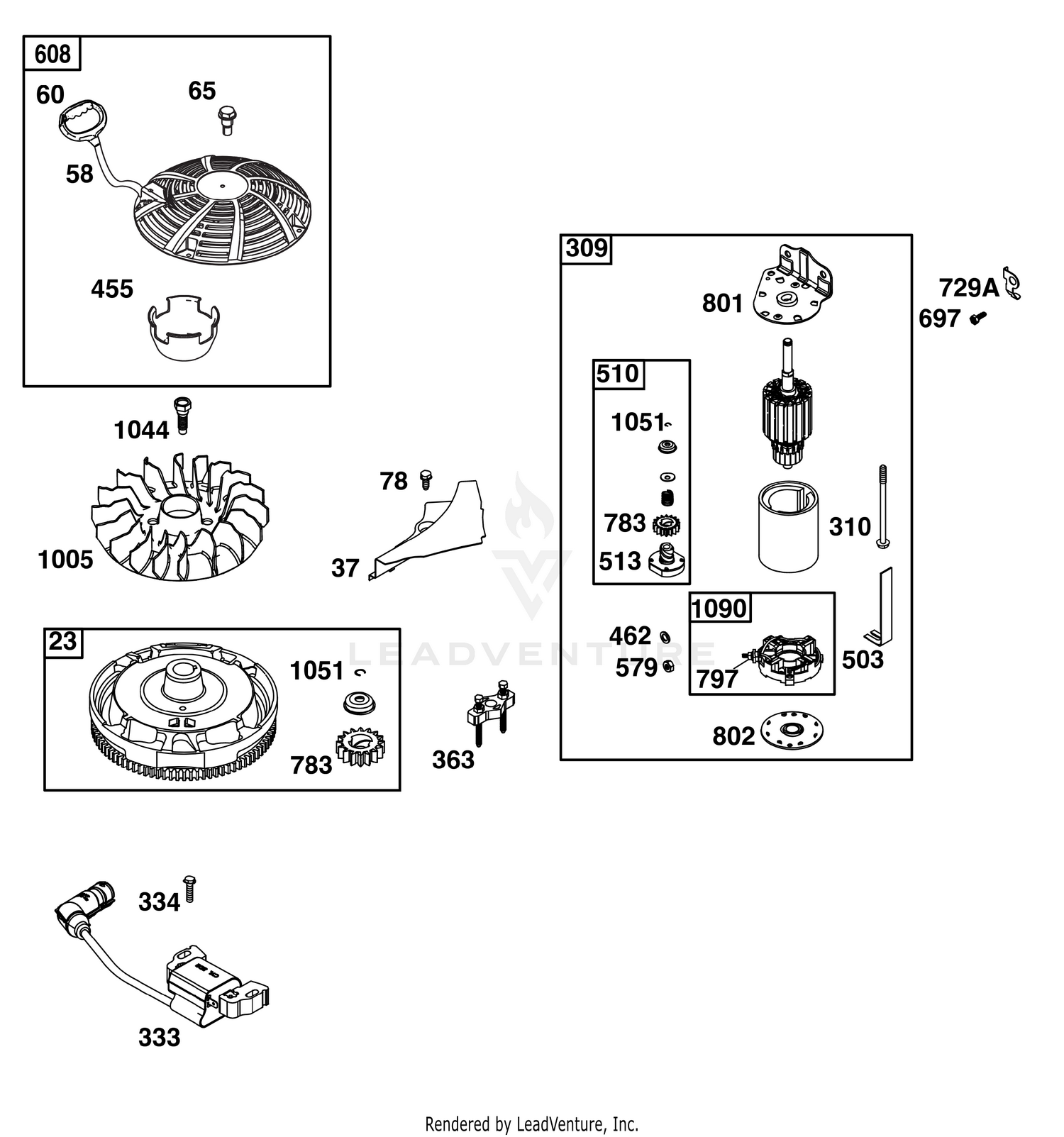

Flywheel, Ignition, and Starter Group
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 23 | BS-591761 | FLYWHEEL Price: $227.89 |
| 37 | BS-697352 | FLYWHEEL GUARD Price: $9.22 |
| 58 | BS-697316 | STARTER ROPE Price: $5.87 |
| 60 | BS-281434S | STARTER ROPE GRIP Price: $5.30 |
| 78 | BS-691693 | HEX SCREW Price: $11.38 |
| 309 | BS-593934 | STARTER ASSEMBLY Price: $194.01 |
| 333 | BS-594626 | ARMATURE MAGNETO Price: $49.56 |
| 363 | BS-19203 | FLYWHEEL PULLER Price: $18.70 |
| 455 | BS-796615 | FLYWHEEL CUP Price: $29.62 |
| 462 | BS-691261 | WASHER Price: $3.40 |
| 503 | BS-691532 | DRIVE CLUTCH Price: $5.23 |
| 510 | BS-593934 | STARTER ASSEMBLY This part replaces BS-693699. Price: $194.01 |
| 513 | BS-692024 | DRIVE CLUTCH Price: $22.66 |
| 579 | BS-691029 | BRUSH RETAINER NUT Price: $4.66 |
| 608 | BS-84013160 | REWIND STARTER This part replaces BS-591606. Price: $43.66 |
| 697 | BS-791680 | SCREW Price: $3.40 |
| 729A | BS-691224 | WIRE CLIP Price: $3.98 |
| 783 | BS-593935 | PINION GEAR Price: $24.49 |
| 801 | BS-691283 | STARTER DRIVE CAP Price: $71.77 |
| 802 | BS-691286 | END CAP Price: $29.04 |
| 1005 | BS-796200 | FLYWHEEL FAN Price: $45.57 |
| 1051 | BS-691265 | RETAINING RING Price: $5.80 |
