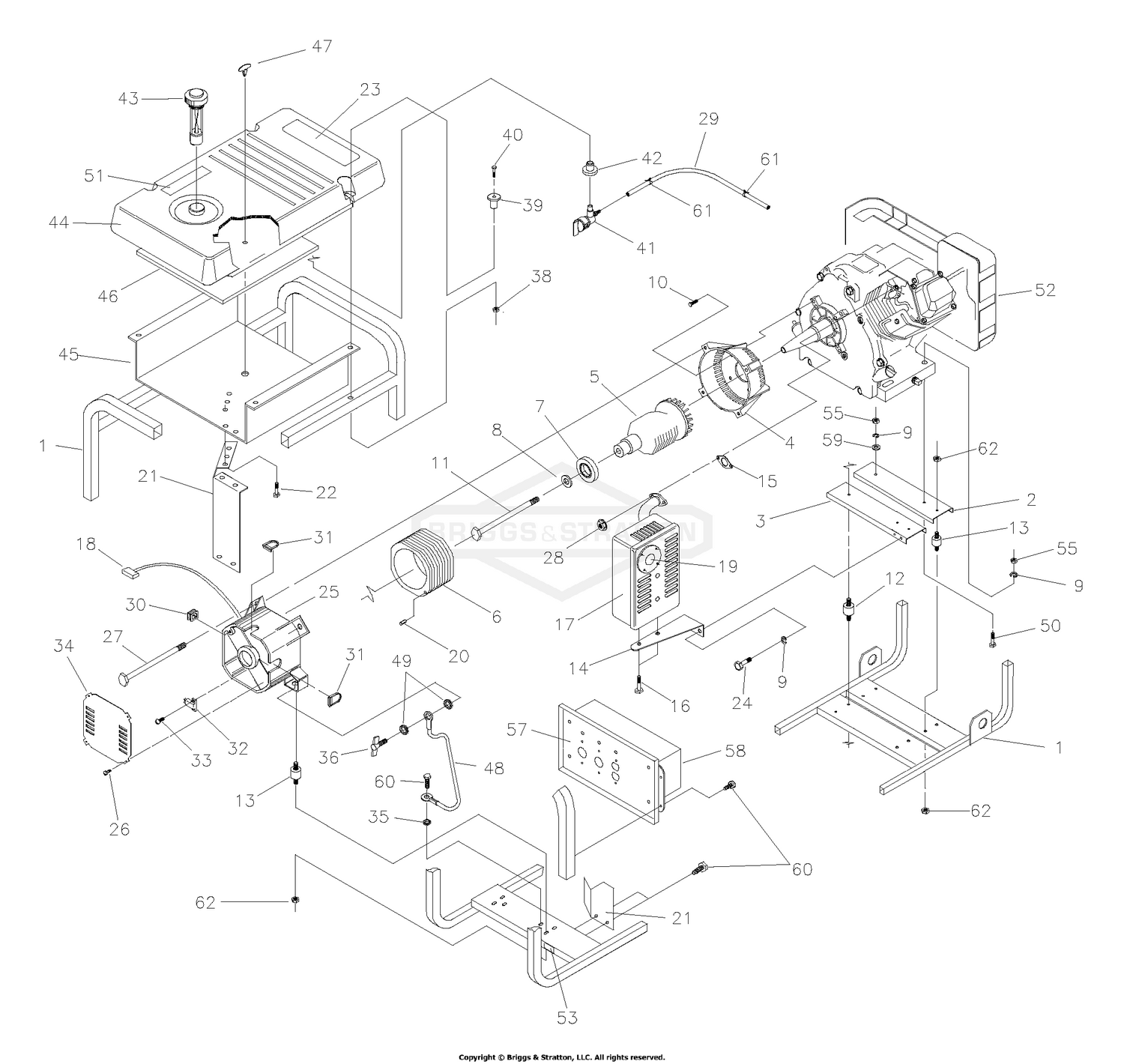

| Ref | Part Number | Description |
|---|
| 1 |
AB4314 |
CRADLE Price: Call Us |
| 2 |
A92531GS |
SUPPORT, Engine This part replaces A92531. Price: $17.60 |
| 3 |
AB4340GS |
SPPRT, ENG/MFFLR This part replaces AB4340. Price: $16.55 |
| 4 |
66365GGS |
HOUSING, Engine Adapter This part replaces 66365G. Price: Call Us |
| 5 |
91844JGS |
ASSY, Rotor This part replaces 91844J. Price: $308.80 |
| 6 |
91859AGS |
ASSY, Stator This part replaces 91859J. Price: $328.00 |
| 7 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 8 |
97696 |
WASHER, M8 Flat Price: Call Us |
| 9 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 10 |
86307GS |
HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19 |
| 11 |
5047480B |
FLOOR PLATE This part replaces 47480. Price: $179.99 |
| 12 |
92609GS |
MOUNTS,Vibration This part replaces 92609. Price: $24.49 |
| 13 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 14 |
92532GS |
BRACKET, Muffler This part replaces 92532. Price: $18.18 |
| 15 |
710250 |
GASKET This part replaces B4343. Price: $7.18 |
| 16 |
66476GS |
SCREW, M6-1 x 12 w/Lock Washer This part replaces 66476. Price: $2.94 |
| 17 |
B4206GS |
MUFFLER This part replaces B4206. Price: $96.40 |
| 18 |
22695GS |
FASTEN, On Tab Housing 6P This part replaces 22695. Price: $3.20 |
| 19 |
83083GS |
SCREEN, Spark Arrest This part replaces 83083. Price: $8.49 |
| 20 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 21 |
192983GS |
SHIELD, Heat This part replaces B96068. Price: $30.99 |
| 22 |
56893GS |
CRIMPTITE, 10-24 x 1/2 This part replaces 56893. Price: $1.95 |
| 23 |
93826GS |
DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85 |
| 24 |
84009650 |
MODULE This part replaces 22142. Price: $40.03 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing This part replaces 66825C. Price: $120.36 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 27 |
86308CGS |
BOLT, Stator This part replaces 86308C. Price: $4.59 |
| 28 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 29 |
30340 |
HOSE, 1/4" I.D. Price: Call Us |
| 30 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 31 |
84242GS |
GROMMET, Plastic RBC This part replaces 84242. Price: $4.19 |
| 32 |
91825 |
ASSEMBLY, Brush Holder Price: Call Us |
| 33 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 34 |
B67025 |
COVER, Bearing Carrier Price: Call Us |
| 35 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 36 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 38 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 39 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 40 |
78831BGS |
HHMS, M6-1.0 x 60 (BLACK) This part replaces 78831B. Price: $1.60 |
| 41 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 42 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 43 |
691677 |
SCREW This part replaces 94834. Price: $2.99 |
| 44 |
193500GS |
ASSY,Tank, Fuel This part replaces 93595. Price: $105.70 |
| 45 |
208564GS |
HEATSHIELD This part replaces B92039. Price: $107.49 |
| 46 |
92665GS |
INSULATION, # 2-1/4" THICK This part replaces 92665. Price: $10.30 |
| 47 |
85000GS |
CLIP, INSULATION This part replaces 85000. Price: $2.59 |
| 48 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 50 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 22531. Price: $3.40 |
| 51 |
194799GS |
DECAL, Danger This part replaces 92982. Price: $10.48 |
| 52 |
~NSP |
ENGINE Price: Call Us |
| 53 |
B4986GS |
DECAL, Ground This part replaces B4986. Price: $2.75 |
| 55 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 57 |
B4252 |
DECAL, Control Panel Price: Call Us |
| 58 |
81898GS |
PNL, CNTRL, TAIWAN This part replaces 81898. Price: $174.99 |
| 60 |
B2153GS |
SCREW, 12-14 x 7/8 Self Drilling This part replaces B2153. Price: $3.95 |
| 61 |
48031C |
CLAMP, Hose 1/2" Price: Call Us |
