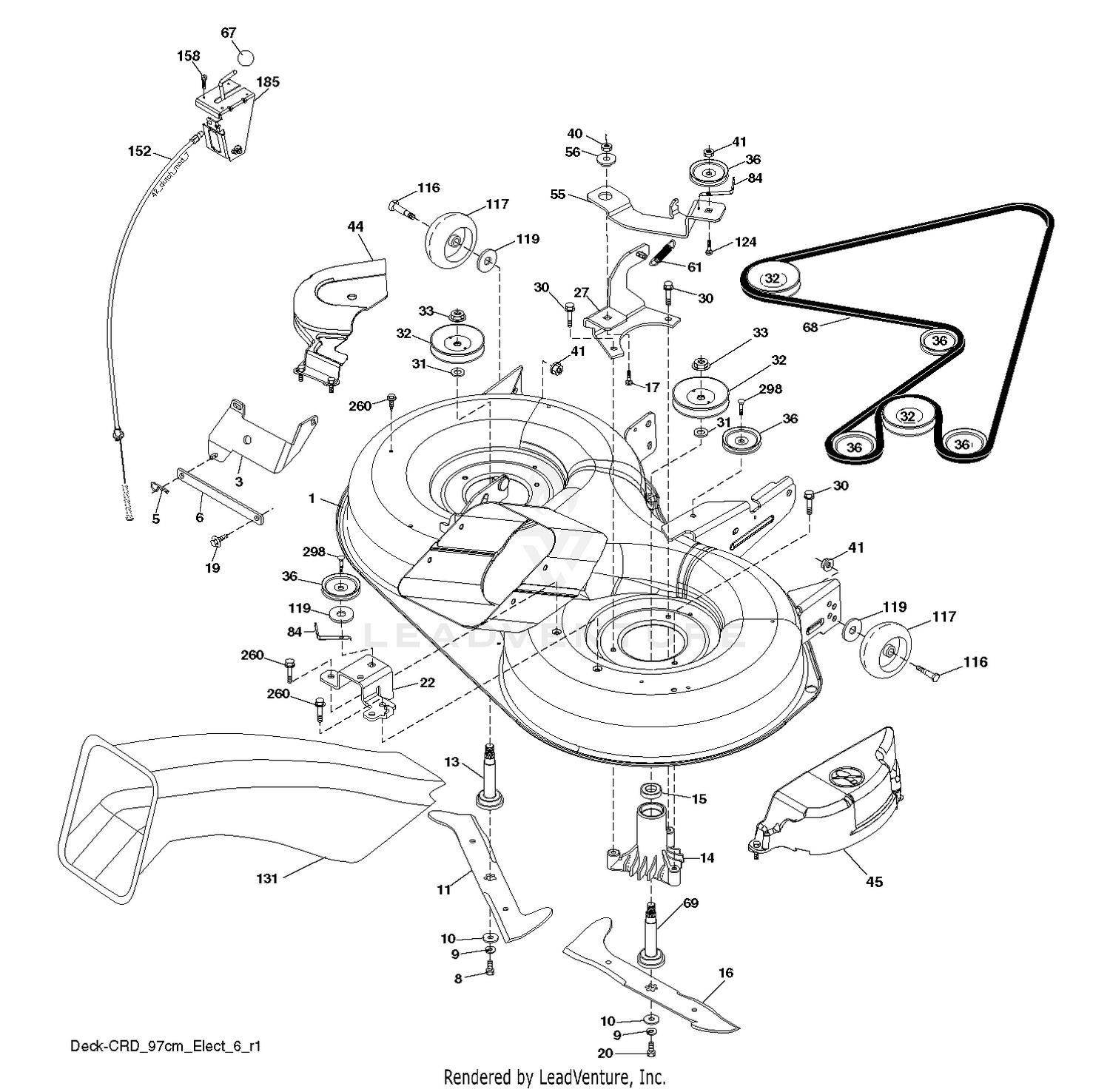

| Ref | Part Number | Description |
|---|
| 1 |
532429121 |
Price: $253.99 |
| 1 |
98-7708 |
NUT Price: $7.76 |
| 2 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $14.99 |
| 3 |
98-7709 |
COLLAR Price: $8.79 |
| 4 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 5 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 6 |
532165557 |
BAR SWAY Price: $6.99 |
| 6 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 7 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 8 |
532181712 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: $1.99 |
| 8 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 9 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 10 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 11 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $41.99 |
| 11 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 12 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 13 |
98-7719 |
FRAME-END Price: $88.65 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 14 |
98-7730 |
NUT Price: $1.31 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 15 |
98-7731 |
BOLT Price: $3.94 |
| 16 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $41.99 |
| 16 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 17 |
872140610 |
BOLT.3/8-14X1.25 Price: $2.99 |
| 17 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 18 |
98-7732 |
NUT Price: $1.45 |
| 19 |
110-3799 |
REGULATOR ASM This part replaces 98-7733. Price: $426.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
532181713 |
Bolt 3/8-24 x 1.25 Gr. 8 Ptch Price: $1.99 |
| 20 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 21 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 22 |
532431169 |
BRACKET.SUPT.IDLER.REAR.RH Price: $4.99 |
| 22 |
98-7729 |
BOLT Price: $2.35 |
| 23 |
98-7720 |
COVER-END Price: $39.58 |
| 24 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 25 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 26 |
98-7724 |
BRUSH Price: $12.41 |
| 27 |
532427981 |
BRACKET.ASM.SUSP.REAR.RH. Price: $19.99 |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YELLOW This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 36 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 44 |
532434946 |
Price: Call Us |
| 45 |
532441479 |
Price: Call Us |
| 55 |
532199498 |
Arm Idler Price: $18.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 61 |
532199486 |
Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532429532 |
BELT.DRIVE.CRD.97.2010 Price: $76.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $35.99 |
| 84 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 119 |
819132012 |
WASHER Price: $2.99 |
| 124 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $57.99 |
| 152 |
532176074 |
Cable Clutch Price: Call Us |
| 158 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $33.99 |
| 260 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 298 |
817490628 |
SCREW LT Price: $3.99 |
