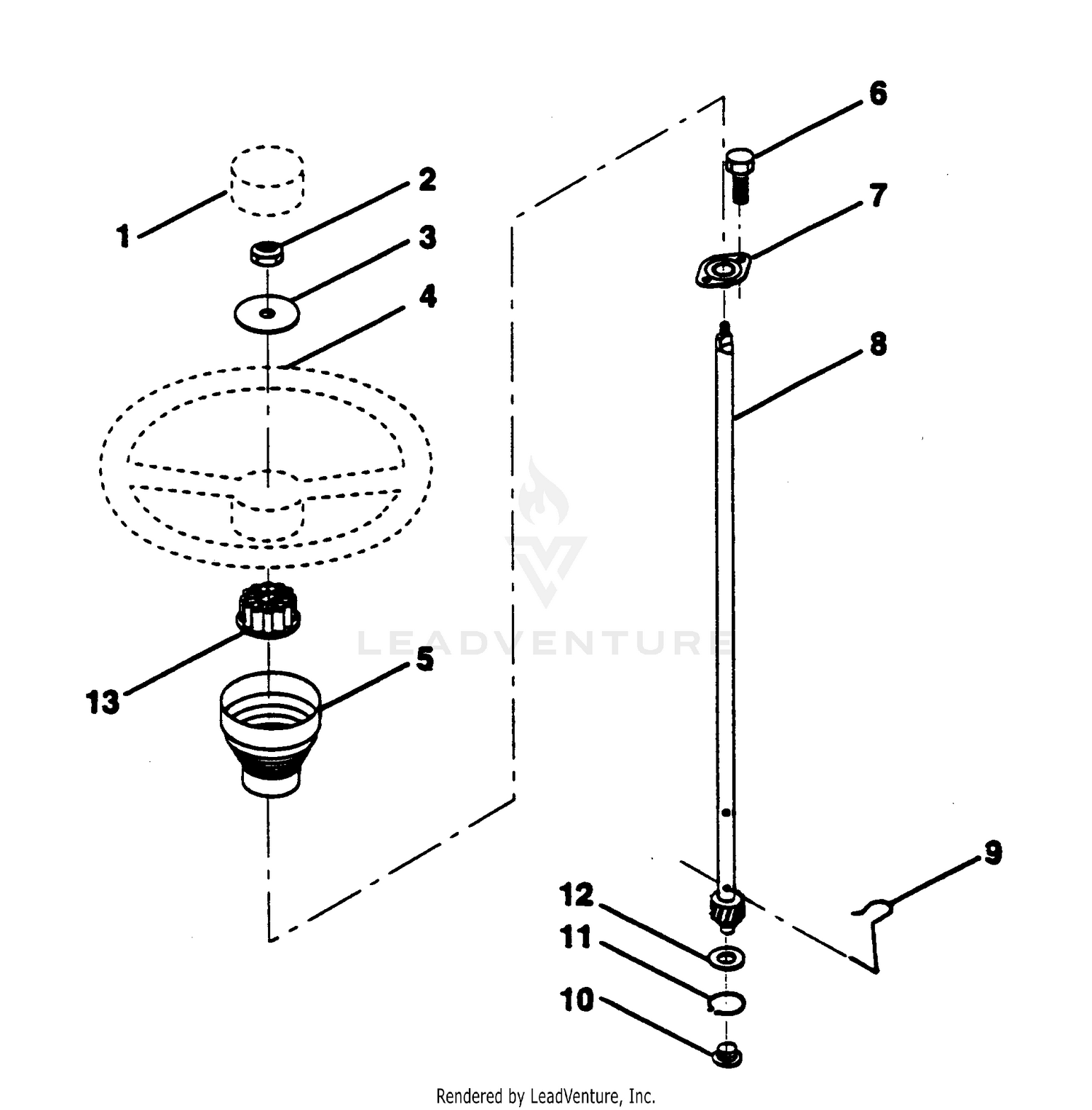

| Ref | Part Number | Description |
|---|
| 1 |
532133742 |
Insert, Wheel, Steering (AYP part number) Price: $5.99 |
| 2 |
532124701 |
Nut, Lock 3/8-24 UNF (AYP part number) Price: $5.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $3.99 |
| 4 |
532133741 |
Wheel, Steering (AYP part number) Price: $109.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
532121897 |
Sleeve, Steering (AYP part number) Price: $8.99 |
| 6 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $3.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
532148966 |
SHAFT STEERING This part replaces 532123651. Price: $109.99 |
| 9 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 9 |
532124210 |
Clip, Steering (AYP part number) Price: $3.99 |
| 10 |
532123438 |
Bushing, Lower, Steering (AYP part number) Price: $3.99 |
| 11 |
812000045 |
Ring, Retaining (AYP part number) Price: $3.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
819211616 |
Washer 21/32 x 1 x 16 Ga. (AYP part number) Price: $3.99 |
| 13 |
115-2007 |
ROD-SPRING Price: $34.97 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 17 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 22 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 24 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 25 |
107-7433 |
CARRIER FRAME ASM Price: $484.72 |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
