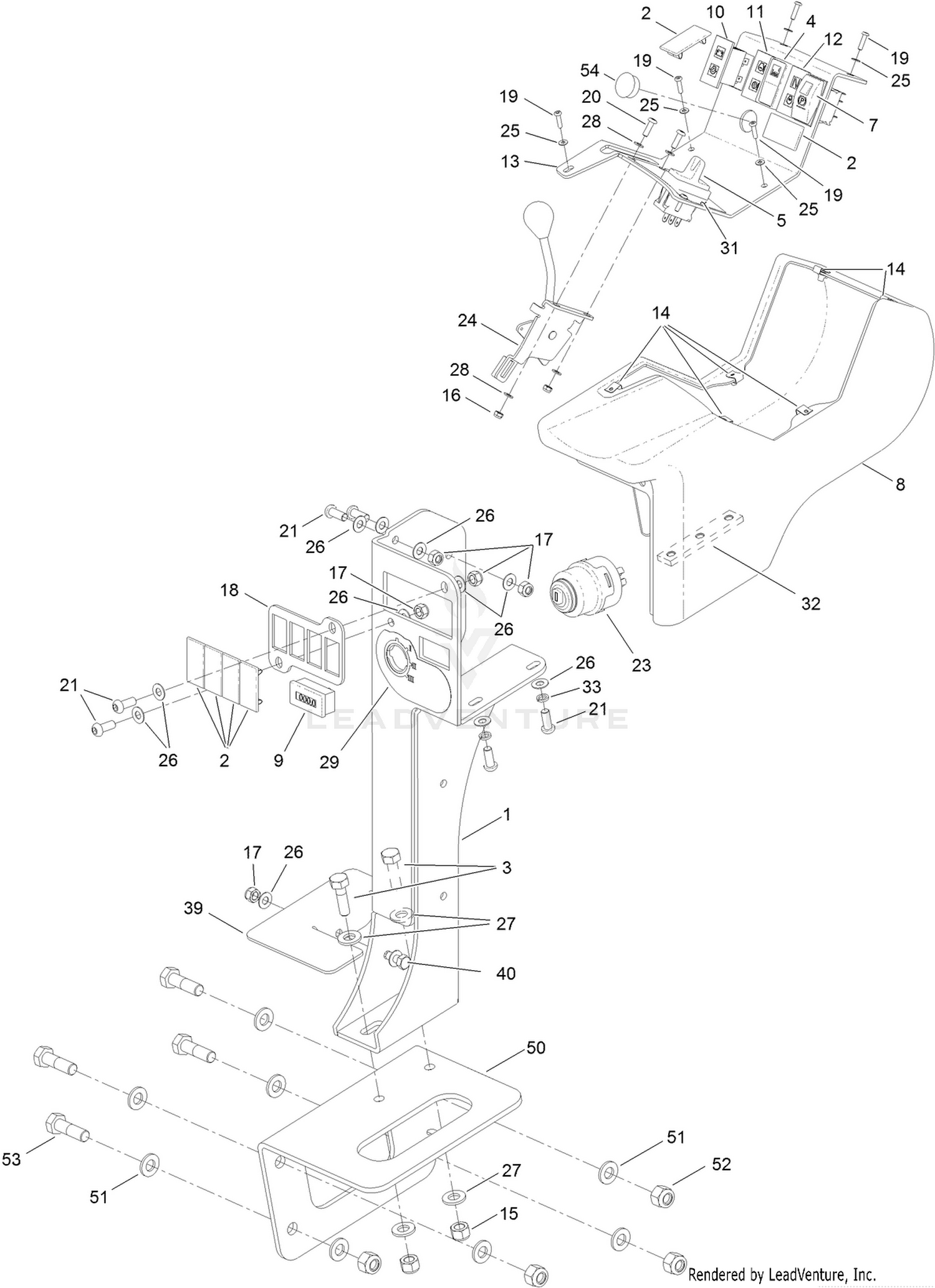

Control Panel Assembly

Control Panel Assembly

Parts (36)

RefPart NumberDescription
1 111-5166-03 CONTROL ARM ASM Price: $163.77
2 111-2337 BLANK - CARLING SWITCH Price: $2.75
3 09394 BOLT M10 X 35 Price: $1.40
4 111-4892 SWITCH-CUTTERS Price: $38.26
5 111-4893 SWITCH-LIFT, LOWER Price: $28.17
7 111-2254 CARLING SWITCH - PARK BRAKE Price: $47.20
8 111-3004 CONTROL POD Price: $220.01
9 111-3362 HOUR METER Price: $120.83
10 111-2333 ILLUMINATED INDICATOR Price: $25.04
11 111-2334 ILLUMINATED INDICATOR Price: $25.04
12 111-3026 INDICATOR-ILLUMINATED Price: $25.04
13 111-5229-03 PANEL-INSTRUMENT Price: $36.71
14 111-3079 M4 U NUT Price: $1.42
15 09447 NUT M10 X 1.5 NYL INS Price: $1.40
16 09430 NUT M5 NYL INS T TYPE Price: $1.25
17 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
18 111-3361-03 PLATE SWITCH Price: $30.85
19 111-3473 SCREW M4 X 16MM BUTTON HEAD Price: $1.42
20 111-3381 SCREW SOC HD BUTTON M5X16 Price: $1.35
21 ZHS1H020U SOC.BUTTON SCW.M8*20 Z&P Price: $1.36
23 74-09-009 IGNITION SWITCH Price: $163.43
24 111-7090 CABLE-THROTTLE This part replaces 111-3059. Price: $111.28
25 09658 WASHER M4 X 9 X 0.8 Z/P Price: $1.40
26 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
27 HY09485 WASHER M12 PLAIN Price: $1.40
28 09470 WASHER M5 X 10 X 1 ZN & PASS Price: $1.25
29 111-3344 DECAL - IGNITION SWITCH Price: $24.37
31 111-5233 DECAL-PANEL, CONTROL Price: $15.79
32 111-3281 NUT BAR Price: $18.16
33 03469 WASHER M8 SC SPRING Price: $1.40
39 111-5239-03 PLATE-FILLER Price: $11.73
40 09368 SCREW Price: $1.40
50 111-5033-03 PLATE-MOUNTING Price: $51.54
51 ZWP1L000U PLAIN WASHER M12 Price: $1.44
52 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
53 09415 BOLT M12 X 30 GD. 8.8 PLATED Price: $1.40
