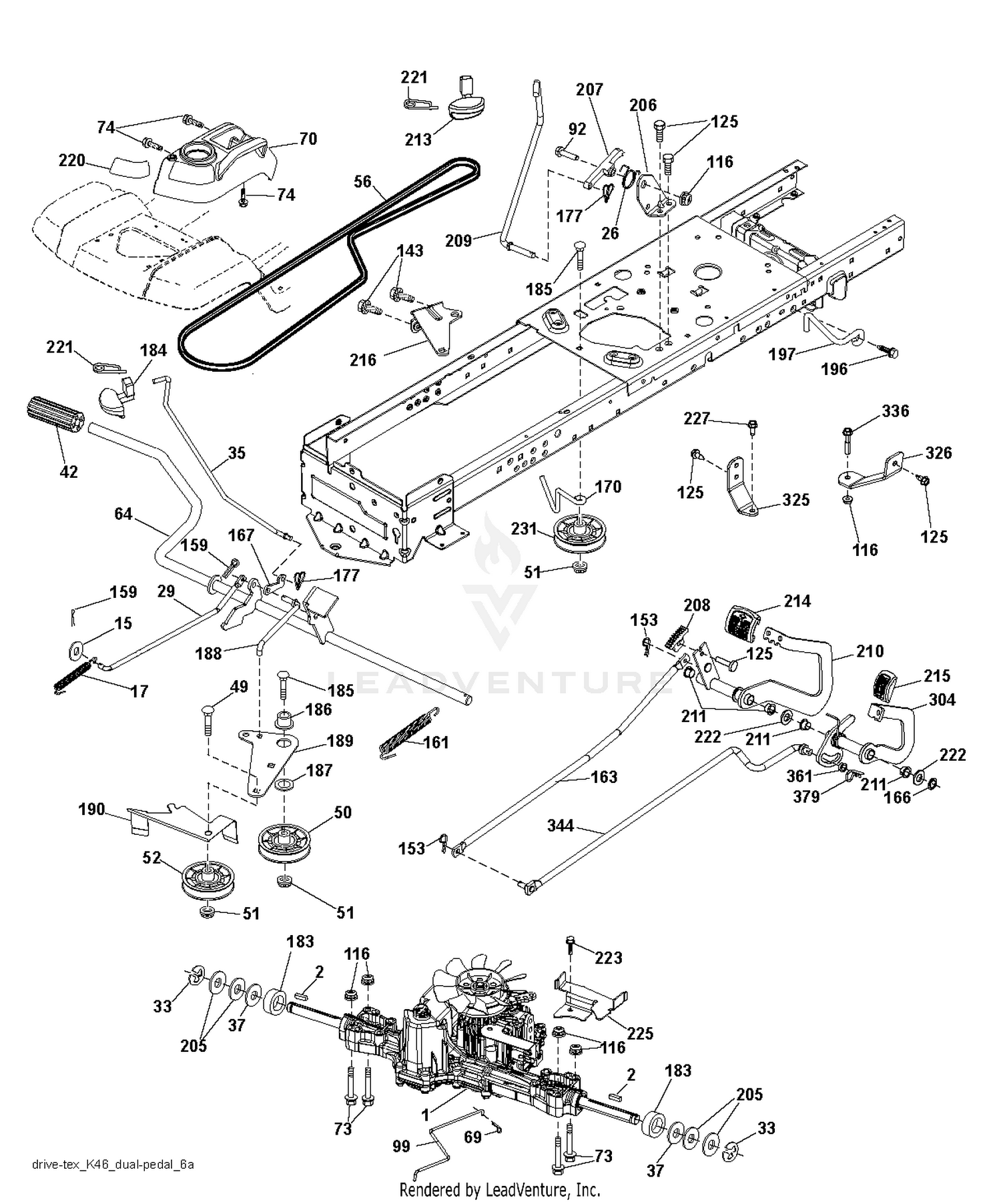

| Ref | Part Number | Description |
|---|
| 1 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 4 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 5 |
127-6430 |
LIFT CYLINDER ASM This part replaces 107-1981. Price: $793.53 |
| 6 |
93-2700 |
ROLLER-PLASTIC Price: $30.55 |
| 7 |
33029-00 |
NUT-LOCK, NI Price: $2.92 |
| 8 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 9 |
98-8821 |
LINK-REAR Price: $30.71 |
| 10 |
93-2704-03 |
LINK-LEFT Price: $23.18 |
| 11 |
3229-28 |
SCREW-CARR Price: $0.81 |
| 12 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 13 |
105-3858 |
BRACKET-SWITCH Price: $28.58 |
| 14 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 15 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 16 |
323-7 |
SCREW-HH Price: $0.65 |
| 17 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
106-9288 |
SENSOR-PROXIMITY, FERROUS Price: $126.57 |
| 19 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 20 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 21 |
136-3381 |
NO.6 LIFTARM ASM This part replaces 108-4035. Price: $1,212.21 |
| 22 |
108-4022 |
SHAFT-CARRIER, PIVOT Price: $160.59 |
| 23 |
105-3999 |
SPRING-COMPRESSION Price: $54.93 |
| 24 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 25 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 26 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
93-2699 |
PIN Price: $48.15 |
| 28 |
147-6067 |
PIVOT PIN ASM This part replaces 98-8826. Price: $44.62 |
| 29 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
104-5657-03 |
NO. 6 SUPPORT ARM ASM Price: $1,374.05 |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 32 |
67-1750 |
BUSHING Price: $0.92 |
| 33 |
115-1577-03 |
LINK ASM Price: $299.26 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 35 |
583864502 |
Rods Price: $6.99 |
| 36 |
2412-93 |
CLAMP-R Price: $1.02 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
105-9828 |
ACTUATOR-SWITCH Price: $35.48 |
| 39 |
108-4045-03 |
LATCH-ARM, LH Price: $120.83 |
| 40 |
104-3556-03 |
LATCH-RH Price: $58.58 |
| 41 |
327-6 |
SCREW-HH Price: $12.99 |
| 42 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 43 |
104-3577 |
WASHER Price: $0.76 |
| 44 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 45 |
3296-45 |
NUT-HEX Price: $3.79 |
| 46 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 47 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 49 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
323-52 |
SCREW-HH Price: $3.63 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 52 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 53 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 54 |
105-9822 |
SPACER Price: $3.16 |
| 55 |
323-11 |
SCREW-HH Price: $1.08 |
| 56 |
115-4841 |
SCREW-HH Price: $10.68 |
| 56 |
592855201 |
Belts Price: $27.99 |
| 57 |
136-3383 |
NO.7 LIFT ARM ASM This part replaces 108-4036. Price: $1,212.21 |
| 58 |
104-5658-03 |
NO. 7 SUPPORT ARM ASM Price: $1,362.74 |
| 59 |
108-4046-03 |
LATCH-ARM, RH Price: $120.83 |
| 60 |
104-3557-03 |
LATCH-LH Price: $58.58 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
596136501 |
Bolts Price: $3.99 |
| 74 |
596134101 |
Screws Price: $2.99 |
| 92 |
595305701 |
Screws Price: $3.99 |
| 99 |
582404501 |
ARM.PIVOTING.TCRD.GEN2.5.BAGGE Price: $5.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch Price: $5.99 |
| 208 |
596564101 |
Gears Price: $4.99 |
| 209 |
596869801 |
Rods Price: $5.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 223 |
598662601 |
BOLTS Price: $1.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596135901 |
Bolts Price: $1.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 304 |
588987302 |
Pedals Price: $19.99 |
| 336 |
587259602 |
Bolts Price: $3.99 |
| 344 |
597647301 |
Rods Price: $32.99 |
| 361 |
597136701 |
Bushings Price: $3.99 |
| 379 |
596580601 |
Pins Price: $3.99 |
