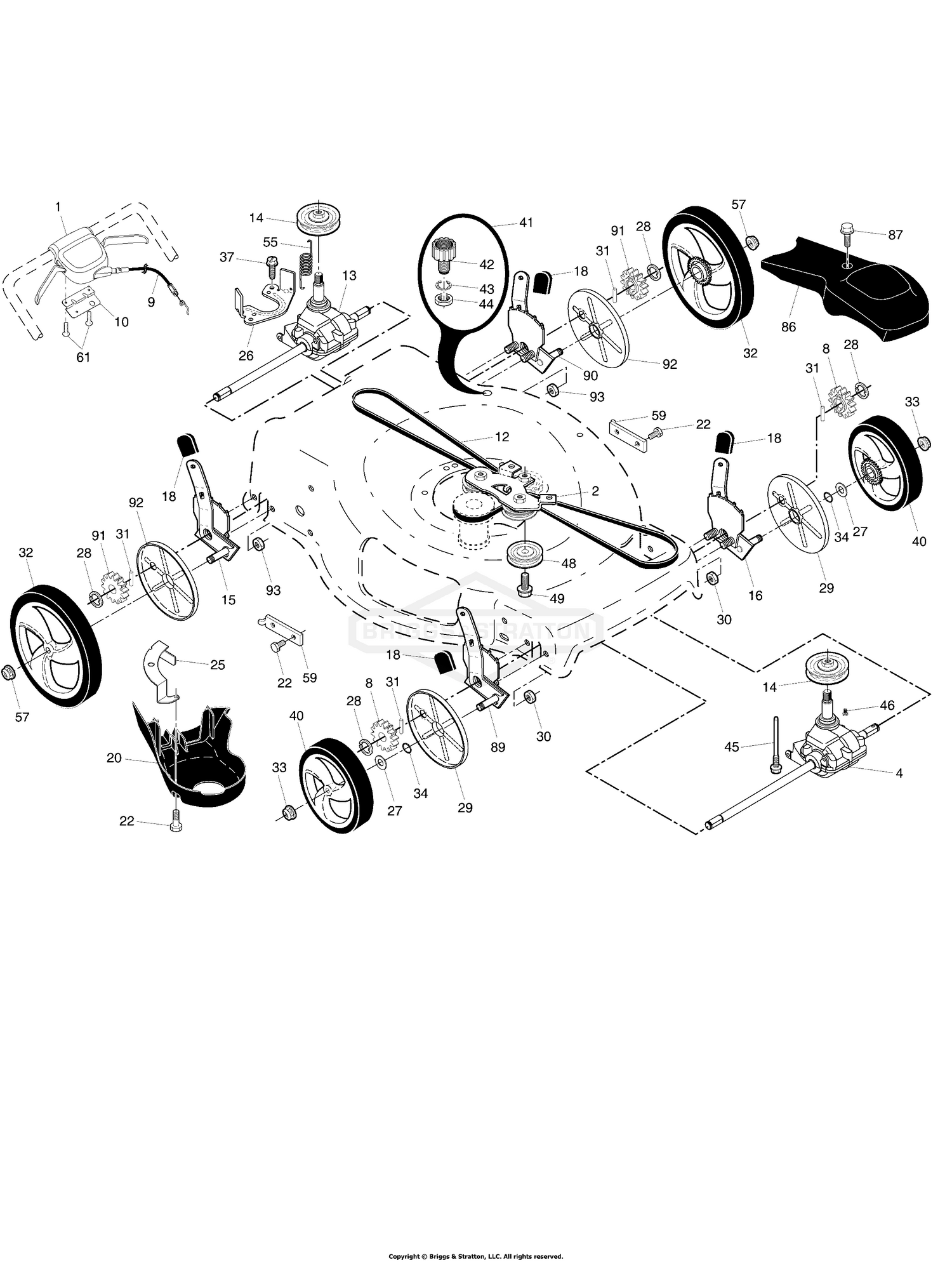

| Ref | Part Number | Description |
|---|
| 1 |
84003987 |
ASSEMBLY, Drive Control Price: $129.99 |
| 2 |
707700 |
BRACKET, Mounting, Idler Pulle Price: $22.49 |
| 4 |
84003991 |
GEARCASE, Front, Complete Price: $189.99 |
| 8 |
707703 |
PINION Price: $13.69 |
| 9 |
84003992 |
CABLE, Drive Control Price: $86.19 |
| 10 |
84003993 |
BRACKET, Drive Control Mounting Price: $7.49 |
| 12 |
706981 |
BELT, Drive Price: $49.34 |
| 13 |
707704 |
GEARCASE ASSEMBLY, Rear Price: $286.19 |
| 14 |
709833 |
PULLEY Price: $14.22 |
| 15 |
84003994 |
ASSEMBLY, Rear, RH Wheel Adjuster Price: $71.99 |
| 16 |
709812 |
HEIGHT ADJUSTER This part replaces 709400. Price: $29.67 |
| 18 |
709411 |
Selector Knob Price: $6.46 |
| 20 |
707709 |
COVER, Debris Price: $57.99 |
| 22 |
705320 |
SCREW 5/16-18 Price: $9.42 |
| 25 |
707711 |
BRACKET, Mounting, Debris Shield Price: $12.49 |
| 26 |
707712 |
BELT GUIDE, Gearcase, Rear Price: $15.99 |
| 27 |
709410 |
WASHER, FLAT 3/8 Price: $6.60 |
| 28 |
709760 |
E-RING Price: $5.59 |
| 29 |
84004305 |
COVER, Wheel Dust Price: $11.79 |
| 30 |
707716 |
NUT, Hex Price: $9.59 |
| 31 |
709310 |
Pawl, Drive Price: $5.54 |
| 32 |
84003995 |
ASSEMBLY, Rear Wheel & Tire Price: $82.25 |
| 33 |
709321 |
NUT, HEX Price: $8.55 |
| 34 |
709288 |
O-Ring Price: $6.47 |
| 37 |
707720 |
SCREW, Hi-Lo Thread, #12 x 5/8 Price: $5.63 |
| 40 |
706982 |
WHEEL ASSEMBLY Price: $43.32 |
| 41 |
709084 |
DECAL, Battery Dngr/Psn Eng Price: $7.09 |
| 42 |
709804 |
ADAPTER-GARDEN HOSE This part replaces 707722. Price: $23.84 |
| 43 |
707723 |
WASHER, Lock, Internal Tooth Price: $4.70 |
| 44 |
707724 |
NUT, Lock, With O-Ring Price: $8.87 |
| 45 |
84003999 |
KEEPER, Gearcase Front Belt Price: $7.59 |
| 46 |
707726 |
SCREW Price: $4.19 |
| 48 |
709813 |
PULLEY Price: $34.58 |
| 49 |
707728 |
SCREW, Mounting, Idler Pulley Price: $6.09 |
| 55 |
707729 |
SPRING, Tension Price: $8.44 |
| 57 |
709088 |
NUT, Lock Flange, 3/8-16 UNC Price: $7.88 |
| 59 |
707730 |
BRACKET, Support Price: $5.63 |
| 61 |
84004000 |
SCREW Price: $13.19 |
| 86 |
84004003 |
COVER, Drive Price: Call Us |
| 87 |
709172 |
Screw, Pan Head, Self-Tapping #10-24 x #10-24 x 2-3/4 Price: $11.17 |
| 89 |
707706 |
BRACKET, Height Of Cut, Right Price: $40.80 |
| 90 |
84004004 |
ASSEMBLY, Rear, LH Wheel Adjuster Price: $74.99 |
| 91 |
84004005 |
PINION, Rear Price: $8.79 |
| 92 |
84004006 |
COVER, Rear Dust Price: $25.99 |
