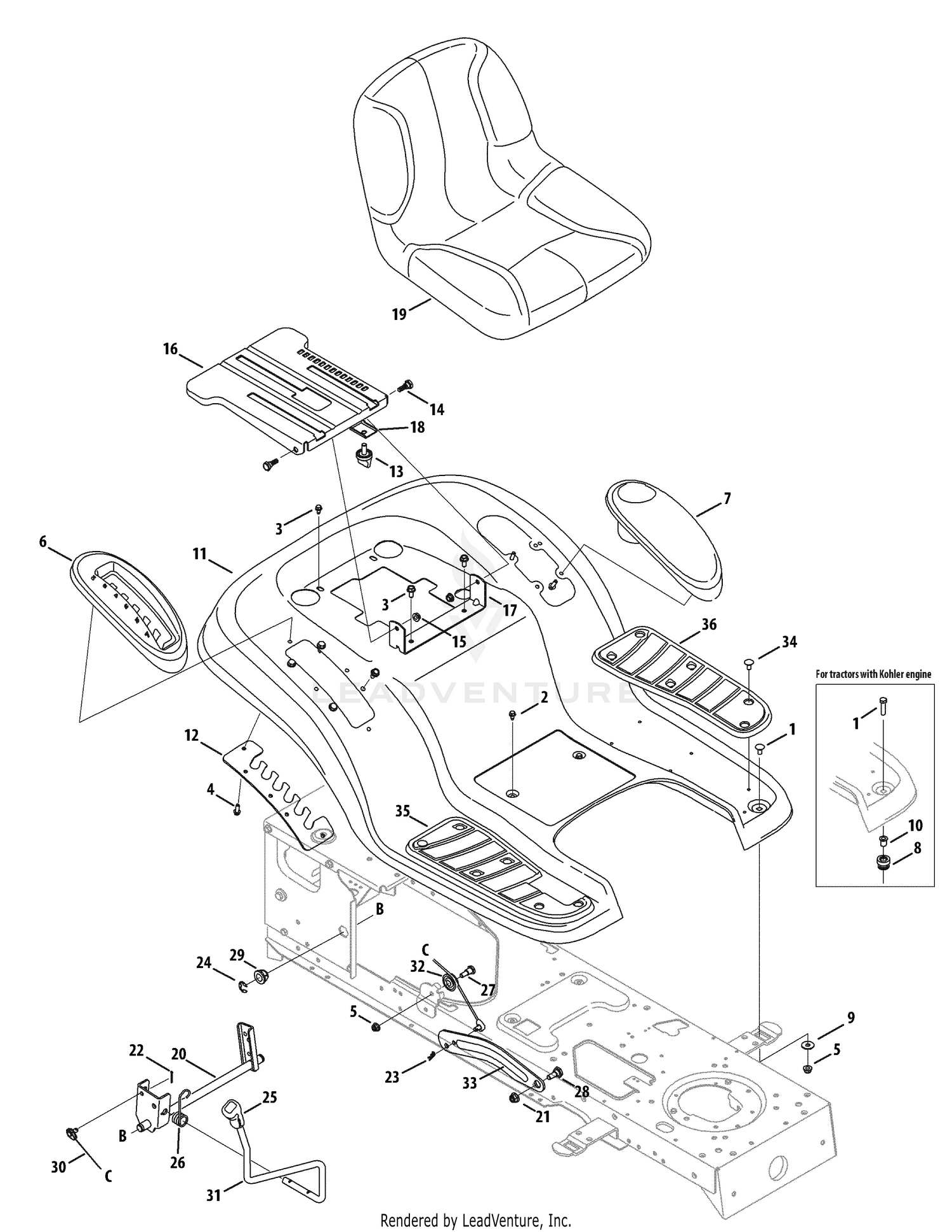

| Ref | Part Number | Description |
|---|
| 2 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-0895 |
Screw, 1/4-15, 0.750 Price: $5.82 |
| 5 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF Price: $3.56 |
| 6 |
731-06795 |
Deck Lift Lever Cover Price: $21.39 |
| 7 |
731-1993A |
COVER-W/CUP HOLDER Not Available Price: |
| 9 |
736-3078 |
Washer, Flat,.344 x 1.0 x.063 Price: $3.95 |
| 11 |
783-06246-0638 |
FENDER (MTD RED) Not Available Price: |
| 12 |
783-0677B-0637 |
LIFT ADJUSTMENT BRACKET Not Available Price: |
| 13 |
720-04061 |
Knob, 3/8-16 Price: $4.67 |
| 14 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 15 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 16 |
783-06049-0637 |
Seat Mount Bracket Price: $60.14 |
| 17 |
783-06088A-0637 |
Seat Pivot Bracket This part replaces 783-06088-0637. Price: $18.96 |
| 18 |
783-06266-0637 |
Seat Knob Adjust Bracket Price: $7.58 |
| 19 |
757-05232 |
HI BACK SEAT, BLACK (3 PT) This part replaces 757-04086. Price: $255.26 |
| 20 |
683-04223-0637 |
LIFT SHAFT ASSEMBLY (POWDER BLACK) Not Available Price: |
| 21 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 22 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 23 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 24 |
716-0106A |
Ring, E Type,.625 Dia. Price: $4.42 |
| 25 |
720-0311 |
Grip, Handle, 1/2 Price: $13.26 |
| 26 |
732-0874 |
Spring, Torsion Price: $4.02 |
| 27 |
738-0138A |
Screw, 5/16-18 x.620 Gr2 Price: $5.81 |
| 29 |
941-0225 |
Bearing, Hex Flange Price: $6.55 |
| 30 |
746-0968 |
Cable, Lift, 16.16 Price: $18.10 |
| 31 |
747-04447 |
Handle, Lift Price: $38.98 |
| 32 |
756-1154 |
Pulley, Roller Price: $6.63 |
| 34 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 35 |
735-0656 |
FOOT PAD (RH) Not Available Price: |
