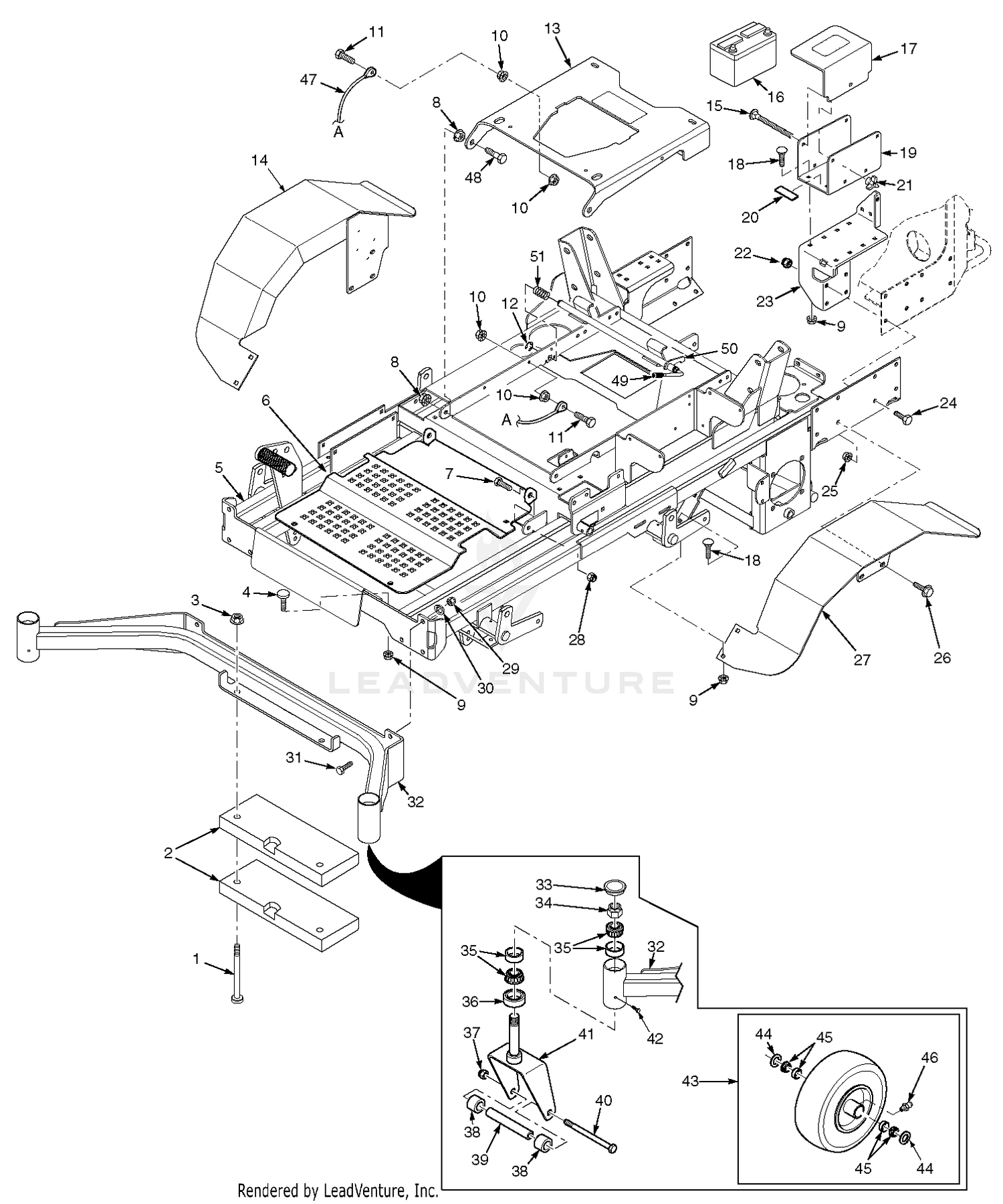

| Ref | Part Number | Description |
|---|
| 1 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3.5" Price: Call Us |
| 2 |
41020 |
Weight Price: Call Us |
| 3 |
04021-07 |
Nut, Hex Elastic Stop 1/2-13 Price: Call Us |
| 4 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 5 |
462330 |
Main Frame Assembly w/Decals Price: Call Us |
| 6 |
424847 |
Foot Plate Price: Call Us |
| 7 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 8 |
04019-05 |
Nut, Hex Serrated Flange 7/16-14 Price: Call Us |
| 9 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 10 |
04019-02 |
Nut, Hex Serrated Flange 1/4-20 Price: Call Us |
| 11 |
04001-02 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 12 |
04050-01 |
Retaining Ring .625" EXT. "E" Price: Call Us |
| 13 |
491730 |
Seat Plate Weldment w/Decal Price: Call Us |
| 14 |
451481 |
Fender Weldment, RH Price: Call Us |
| 15 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 17 |
422682 |
Cover, Battery Price: Call Us |
| 18 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 19 |
462007 |
Plate, Battery Box Price: Call Us |
| 20 |
48661 |
Rubber Pad Price: Call Us |
| 21 |
04029-01 |
Wing Nut, 1/4-20 x 3/4" Price: Call Us |
| 22 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 23 |
424488 |
Battery Box Mount Price: Call Us |
| 24 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 25 |
04019-04 |
Nut, Hex Serrated Flange 3/8-16 Price: Call Us |
| 26 |
04017-27 |
Screw, Hex Serrated Flange 3/8-16 x 1" Price: Call Us |
| 27 |
451480 |
Fender Weldment, LH Price: Call Us |
| 28 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 29 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 30 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 31 |
04001-28 |
Bolt, Hex Head 7/16-14 x 1-1/4" Price: Call Us |
| 33 |
484195 |
Cap, Grease Price: Call Us |
| 34 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 35 |
481657 |
Bearing W/Race Price: Call Us |
| 36 |
481025 |
Seal, 2.00" OD. x 1.625" Bore Price: Call Us |
| 37 |
04021-07 |
Nut, Hex Elastic Stop 1/2-13 Price: Call Us |
| 38 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 39 |
43583 |
Sleeve, Caster Wheel Price: Call Us |
| 40 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" Price: Call Us |
| 41 |
451416 |
Yoke Weldment, Caster Price: Call Us |
| 42 |
482028-01 |
Plug, 1/4-28 THD Form Price: Call Us |
| 44 |
482622 |
Seal Price: Call Us |
| 45 |
482621 |
Bearing w/ Race Price: Call Us |
| 46 |
48114-10 |
Grease Fitting Price: Call Us |
| 47 |
48566 |
Cable, Seat Stop Price: Call Us |
| 48 |
04001-117 |
Bolt, Hex Head 7/16-14 x 1-3/4" Price: Call Us |
| 49 |
484341 |
Grip, Seat Latch Price: Call Us |
| 50 |
491731 |
Lever Assembly, Seat Release Price: Call Us |
