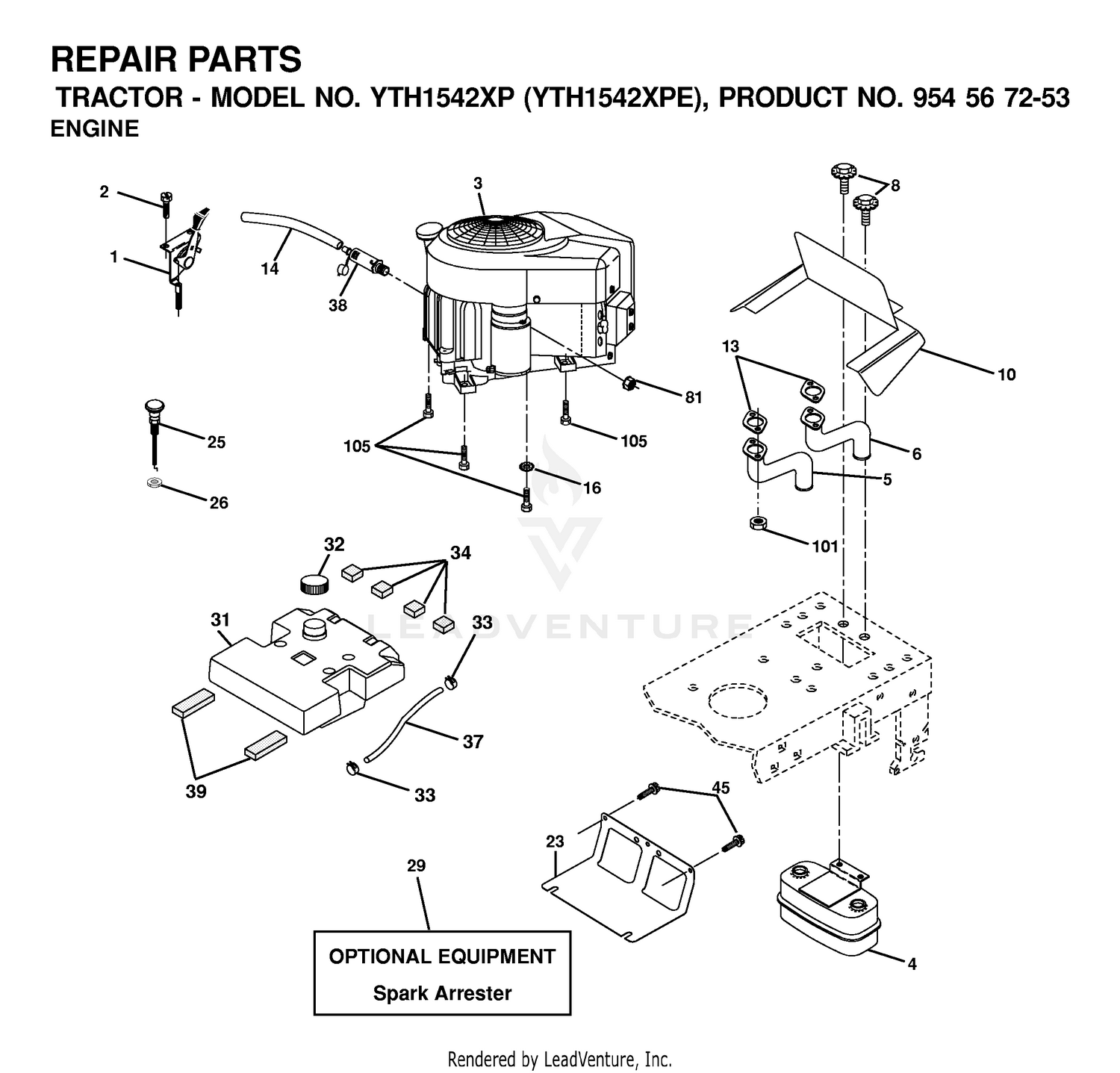

| Ref | Part Number | Description |
|---|
| 1 |
127-3101 |
OIL LUBE PUMP ASM Price: $229.50 |
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
532176067 |
EXHAUST.TUBE.LH.KAWASAKI. Price: $99.99 |
| 6 |
532176068 |
EXHAUST.TUBE.RH.KAWASAKI. Price: $99.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 13 |
127-3004 |
GASKET Price: $2.73 |
| 14 |
125-7232 |
BOLT Price: $3.28 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
125-7171 |
PLUG-DRAIN Price: $23.08 |
| 16 |
125-6987 |
DIPSTICK Price: $68.96 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
125-6954 |
GUIDE-DIPSTICK Price: $9.80 |
| 18 |
125-7022 |
GASKET Price: $7.07 |
| 19 |
125-7023 |
PIPE ASM Price: $44.23 |
| 20 |
125-7217 |
BOLT Price: $4.58 |
| 21 |
127-3014 |
COOLER ASM Price: $1,323.82 |
| 22 |
127-2985 |
O-RING Price: $6.88 |
| 23 |
127-3015 |
BRACKET-COOLER Price: $73.15 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
125-7041 |
NUT-COOLER, OIL Price: $51.50 |
| 25 |
127-3009 |
BRACKET ASM Price: $82.05 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 26 |
127-3009 |
BRACKET ASM This part replaces 125-6930. Price: $82.05 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 27 |
127-3010 |
STUD Price: Call Us |
| 28 |
125-7024 |
GASKET Price: $3.16 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-6990 |
JOINT Price: $64.80 |
| 31 |
127-3102 |
PIPE-COOLING, WATER Price: $45.56 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
125-7162 |
CLIP Price: $6.55 |
| 32 |
532161696 |
FUEL CAP/GAUGE Price: $43.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
127-3103 |
HOSE-COOLING, WATER Price: $48.62 |
| 36 |
125-7162 |
CLIP Price: $6.55 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
127-3007 |
TUBE Price: $19.01 |
| 39 |
125-7001 |
ELBOW Price: $40.49 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
127-3176 |
O-RING Price: $2.87 |
| 41 |
125-7595 |
BOLT Price: $2.39 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
