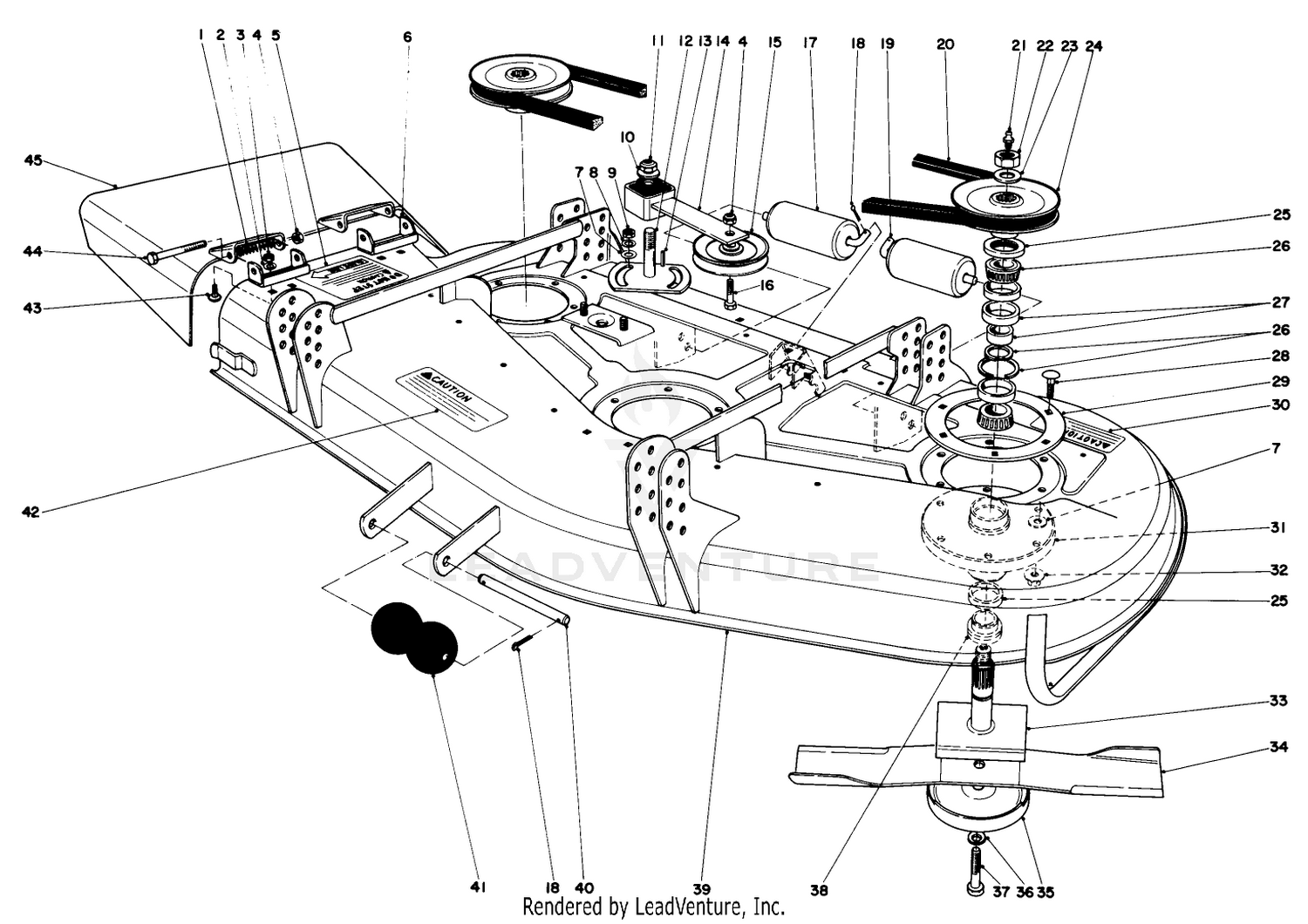

| Ref | Part Number | Description |
|---|
| 1 |
40-6230 |
SPRING Price: $37.99 |
| 2 |
32534 |
Lockwasher Price: Call Us |
| 3 |
3217-6 |
NUT-HEX Price: $1.19 |
| 4 |
3296-5 |
NUT-HEX Price: $3.09 |
| 5 |
66-1340 |
DECAL-DANGER, THROWN OBJECT This part replaces 40-5730. Price: $9.07 |
| 6 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
3218-3 |
NUT-JAM Price: $0.25 |
| 10 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 11 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 12 |
28-9060 |
PLATE-IDLER Price: $137.75 |
| 13 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 14 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 15 |
27-1080 |
DISCONTINUED X-REF Price: Call Us |
| 16 |
3211-6 |
SCREW-HH Price: $3.87 |
| 17 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 18 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 19 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 20 |
27-1160 |
V-BELT Price: $51.80 |
| 21 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 22 |
32146-20 |
NUT-HEX Price: $3.23 |
| 23 |
74150 |
Washer Price: Call Us |
| 24 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 25 |
253-139 |
SEAL-OIL Price: $12.45 |
| 26 |
27-0960 |
BEARING ASM Price: $58.99 |
| 27 |
27-5970 |
SPACER-SET, MATCHED Price: $57.99 |
| 28 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 29 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 30 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 31 |
61-4160 |
HOUSING-SPINDLE This part replaces 27-0880. Price: $131.00 |
| 32 |
32128-21 |
NUT-HF Price: $0.39 |
| 33 |
27-0920 |
SHAFT Price: $158.07 |
| 34 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 35 |
72-9361 |
CUP-SCALP, ANTI This part replaces 27-1000. Price: $39.78 |
| 36 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 37 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 38 |
27-0950 |
SPACER Price: $29.99 |
| 39 |
40-0020 |
DISCONTINUED Price: Call Us |
| 40 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 41 |
294820 |
Roller Price: Call Us |
| 42 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 43 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 44 |
3211-15 |
SCREW-HH Price: $7.99 |
| 45 |
13-3949 |
DEFLECTOR ASM This part replaces 40-6200. Price: $214.07 |
