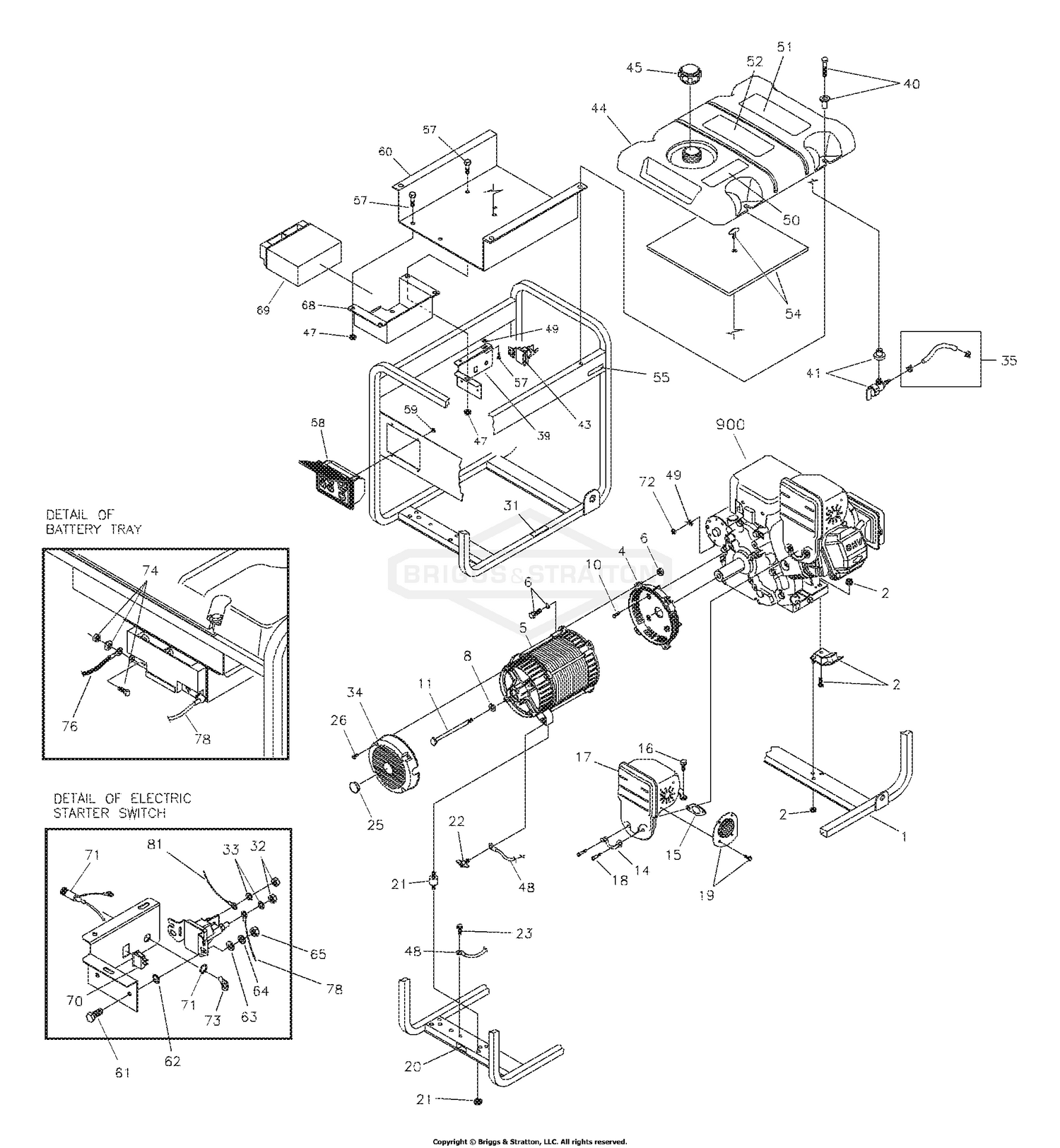

| Ref | Part Number | Description |
|---|
| 1 |
M195438GS |
KIT, Cradle (Includes Items 20 & 31) Price: $266.90 |
| 2 |
196400GS |
KIT, Vibration Mount Price: $5.00 |
| 3 |
M92531GS |
BRACKET, Support Engine Price: $9.95 |
| 4 |
190220GS |
ADAPTER, Engine Price: $40.82 |
| 7 |
M190723GS |
BRACKET, Support Eng/Muffler Price: $22.49 |
| 8 |
96796GS |
WASHER, 8.4 x 22.2 x 3 Price: $2.79 |
| 10 |
190274DGS |
SBHC, 3/8-16 x 7/8" Price: $2.85 |
| 11 |
73068GS |
HHCS, 5/16 - 24 x 8-7/8 Price: $23.99 |
| 12 |
189302LGS |
WIRE, #16, Red Price: $18.39 |
| 14 |
92532GS |
BRACKET, Muffler Price: $18.18 |
| 15 |
710250 |
GASKET, Exhaust Price: $7.18 |
| 17 |
B4206AGS |
MUFFLER Price: $50.70 |
| 18 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
195625GS |
KIT, Vibration Mount Price: $13.39 |
| 22 |
86494GS |
SCREW, Wing M6 - 1.0 x 16 Price: $2.51 |
| 24 |
194390GS |
ASSY, Heat Shield Price: $75.99 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
TAPTITE, M5 - 0.8 x 10 Price: $2.69 |
| 31 |
196830GS |
DECAL, Exhaust Warning Price: $13.89 |
| 34 |
195422GS |
COVER, RBC Plastic w/Cap Price: $12.35 |
| 35 |
791745 |
LINE, Fuel This part replaces 194265GS. Price: $8.97 |
| 36 |
192376GS |
SCREW, 12 - 24 x 1/2 Thread Forming Price: $2.89 |
| 37 |
56893GS |
CRIMPTITE, 10-24 x 1/2 Price: $1.95 |
| 38 |
B2153GS |
SCREW, Self Driller, 12-14 x 7/8 Price: $3.95 |
| 39 |
B196810GS |
BRACKET, Starter Price: $28.88 |
| 40 |
199256GS |
BOLT, Shoulder, M6-1.0, w/ Neoprene Washer Price: $1.60 |
| 41 |
192980GS |
VALVE, Fuel Price: $16.43 |
| 43 |
691656 |
SOLENOID, Starter Price: $29.23 |
| 45 |
B4363GS |
CAP, Fuel Gauge Price: $38.55 |
| 46 |
B4135GS |
PIN, Handle Release Price: $6.09 |
| 47 |
77395GS |
NUT, M6, Flange Lock Price: $3.09 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 50 |
188333GS |
DECAL, Instruction Fuel Level Price: $20.85 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
189235GS |
DECAL, Start Instructions Price: $17.22 |
| 53 |
194034GS |
KIT, Fold-down Handle Hardware Price: $9.51 |
| 54 |
194448GS |
KIT, Insulation w/ clip Price: $25.55 |
| 55 |
197798GS |
DECAL, Fuel Shutoff Price: $7.89 |
| 56 |
202997GS |
DECAL, Warning, CO Price: $12.80 |
| 60 |
204594GS |
HEATSHEILD Price: $78.99 |
| 61 |
704130 |
SCREW, HEX, 1/4-20X.5 This part replaces B4300GS. Price: $3.28 |
| 68 |
195680GS |
TRAY, Battery Price: $58.29 |
| 69 |
193463GS |
BATTERY Price: $139.09 |
| 70 |
87799GS |
SWITCH, Rocker On/Off Price: $4.89 |
| 71 |
312004GS |
JACK-COAXIAL This part replaces 196626GS. Price: $8.35 |
| 73 |
192351GS |
LUG, 1/4, #22/18 Price: $1.65 |
| 74 |
193347GS |
KIT, Hardware Battery Price: $2.49 |
| 75 |
196627AGS |
WIRE-A, #13, Red Price: $3.70 |
| 76 |
185939KGS |
WIRE, #55 Black Price: $10.30 |
| 77 |
196627BGS |
WIRE-A, #13B, Red Price: $3.70 |
| 78 |
189302HGS |
WIRE, #13 Red Price: $18.49 |
| 81 |
189302JGS |
WIRE-A, #0, Black Price: $18.49 |
| 85 |
B193200GS |
ASSY, Fold Down Handle Price: $34.76 |
| 86 |
198669GS |
GRIP, Handle Price: $7.69 |
