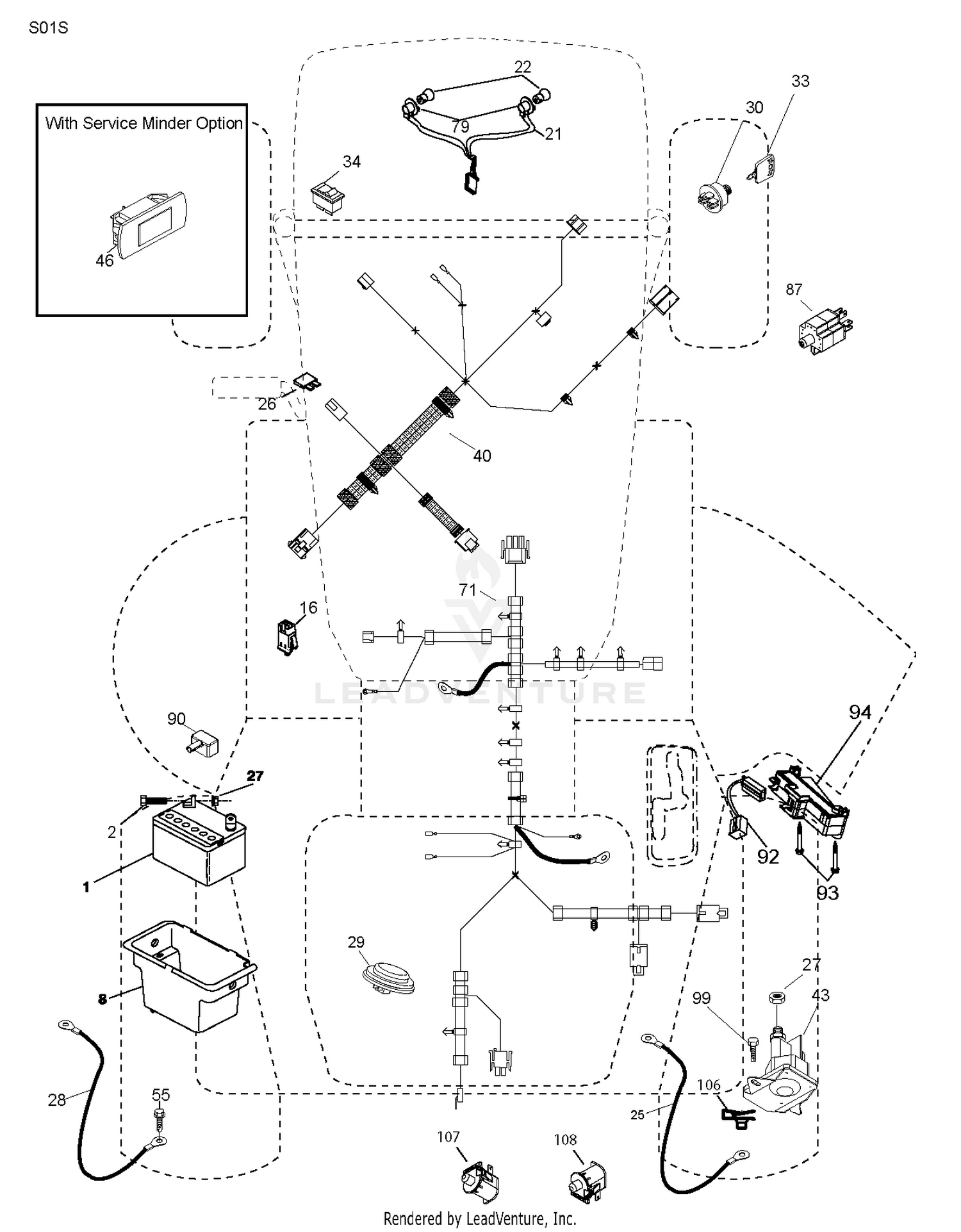

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $138.99 |
| 1 |
94-1410 |
HOLDER-CAN, BEVERAGE Price: $5.81 |
| 2 |
321-4 |
SCREW-HH Price: $0.99 |
| 2 |
874760412 |
BOLT LT Price: $3.99 |
| 3 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 4 |
83-1530 |
BRACKET-SUPPORT, BUZZER Price: $13.54 |
| 5 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 6 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 7 |
105-4320 |
SWITCH Price: $94.90 |
| 8 |
532419791 |
Price: $13.99 |
| 8 |
83-2280 |
TIMER-DELAY Price: $126.04 |
| 10 |
83-0040 |
CONTROL-CHOKE Price: $36.29 |
| 11 |
83-0030 |
CONTROL-THROTTLE Price: $39.07 |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
105-4306-03 |
BRACKET-RELAY Price: $18.66 |
| 14 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 15 |
83-1150 |
ENGINE GROUND WIRE ASM Price: $19.40 |
| 16 |
3290-134 |
SCREW Price: $0.27 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 17 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 18 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 19 |
105-5410 |
HOSE-HYD Price: $25.01 |
| 20 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
99-3017 |
FITTING Price: $67.26 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 22 |
92-5821 |
HEAD-FILTER Price: $136.21 |
| 23 |
107-9531 |
FILTER-OIL, HYD This part replaces 105-0438. Price: $10.71 |
| 24 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 25 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 25 |
532416694 |
CABLE.BATTERY.20.RED.8 AWG Price: $11.99 |
| 26 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 27 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 28 |
105-5471 |
DECAL-PANEL, LEFT CONTROL Price: $37.82 |
| 28 |
532421686 |
Price: $11.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $24.99 |
| 30 |
104-1476 |
RING-RUBBER Price: $18.49 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 31 |
321-5 |
SCREW-HH Price: $0.22 |
| 32 |
105-4309 |
PLATE-FILTER Price: $9.16 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 40 |
532421002 |
Price: $84.99 |
| 43 |
532192507 |
SOLENOID.W/BRASS.PLUNG Price: $16.99 |
| 55 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
532429412 |
Price: $83.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 87 |
532421060 |
Price: $17.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
532192540 |
SCREW.PLASTITE Price: $2.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $22.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 107 |
532421061 |
Price: $9.99 |
