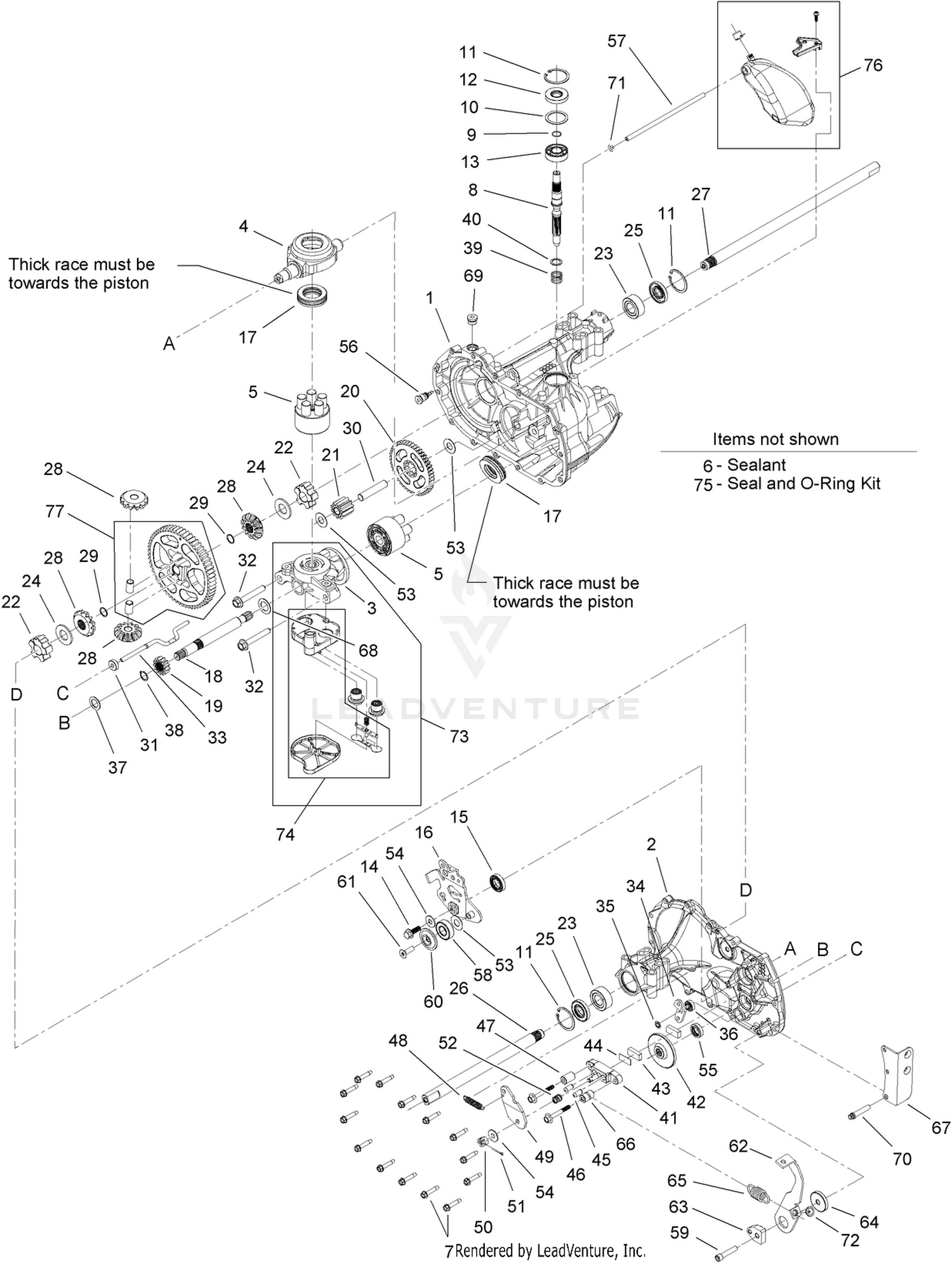

Transmission Assembly No. 112-6019
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-5301 | MAIN HOUSING ASM Price: $794.26 |
| 2 | 104-5302 | SIDE HOUSING ASM Price: $171.03 |
| 3 | 104-5303 | CENTER SECTION ASM Price: $358.50 |
| 4 | 104-5304 | SWASHPLATE-TRUNNION Price: $129.21 |
| 5 | 103-2666 | CYLINDER BLOCK KIT Price: $473.99 |
| 7 | 104-5305 | SCREW-HHF Price: $5.18 |
| 8 | 104-5306 | SHAFT-INPUT Price: $244.96 |
| 9 | 104-5307 | RING-RETAINING Price: $5.18 |
| 10 | 104-5308 | SPACER Price: $7.99 |
| 11 | 104-5309 | RING-RETAINING Price: $11.99 |
| 12 | 104-5310 | SEAL-LIP Price: $36.99 |
| 13 | 104-5311 | BEARING-BALL Price: $42.99 |
| 14 | 104-5312 | SCREW-HF Price: $5.79 |
| 15 | 104-5313 | SEAL-LIP Price: $16.30 |
| 16 | 112-6190 | CONTROL-ARM Price: $75.22 |
| 17 | 94-6922 | BEARING-THRUST Price: $59.99 |
| 18 | 104-5315 | SHAFT-MOTOR Price: $150.64 |
| 19 | 104-5316 | GEAR-PINNION, 13T Price: $20.94 |
| 20 | 104-5317 | GEAR-10T/48T Price: $125.66 |
| 21 | 104-5318 | GEAR-JACKSHAFT, 10T Price: $57.09 |
| 22 | 104-5320 | BEARING-SLEEVE Price: $22.68 |
| 23 | 104-5321 | BEARING-SLEEVE, OUTBOARD Price: $23.34 |
| 24 | 94-1943 | WASHER Price: $3.96 |
| 25 | 104-5322 | SEAL-LIP Price: $21.33 |
| 26 | 112-6191 | AXLE-SHAFT Price: $103.37 |
| 27 | 112-6192 | AXLE-SHAFT Price: $112.82 |
| 28 | 112-6193 | MITER GEAR KIT Price: $94.02 |
| 29 | 104-5328 | RING-RETAINING, SPIRAL Price: $7.64 |
| 30 | 104-5329 | PIN-JACKSHAFT Price: $74.18 |
| 31 | 104-5330 | MAGNET-RING Price: $6.74 |
| 32 | 94-6926 | BOLT Price: $6.52 |
| 33 | 104-5335 | ROD-ACTUATOR, BYPASS Price: $65.71 |
| 34 | 104-5336 | ARM-BYPASS Price: $14.59 |
| 35 | 104-5337 | RING-RETAINING Price: $5.54 |
| 36 | 104-5338 | SEAL-LIP Price: $12.14 |
| 37 | 104-5339 | WASHER-FLAT Price: $4.43 |
| 38 | 104-5340 | RING-RETAINING Price: $5.18 |
| 39 | 94-1936 | SPRING-BLOCK Price: $7.99 |
| 40 | 94-1937 | WASHER-THRUST Price: $5.39 |
| 41 | 104-5343 | YOKE-BRAKE Price: $40.47 |
| 42 | 104-5344 | ROTOR-BRAKE Price: $49.32 |
| 43 | 104-2171 | PUCK-BRAKE Price: $13.31 |
| 44 | 104-2181 | PUCK-PLATE Price: $5.79 |
| 45 | 104-2176 | PIN-BRAKE Price: $6.39 |
| 46 | 104-5345 | SCREW-HF Price: $7.46 |
| 47 | 104-2180 | SPACER Price: $5.77 |
| 48 | 112-6194 | SPRING KIT Price: $18.80 |
| 49 | 112-6195 | BRAKE-ARM Price: $19.69 |
| 50 | 93-3807 | NUT-CASTLE Price: $13.36 |
| 51 | 3272-7 | PIN-COTTER Price: $0.25 |
| 52 | 104-2188 | SPRING-BRAKE, ANTI DRAG Price: $4.83 |
| 53 | 94-1933 | WASHER Price: $3.86 |
| 54 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 55 | 104-5347 | SEAL-OIL Price: $14.06 |
| 56 | 104-5349 | FITTING-SAE Price: $44.84 |
| 57 | 104-5350 | HOSE-EXPANSION, TANK Price: $13.36 |
| 58 | 104-2156 | BEARING Price: $68.03 |
| 59 | 104-2155 | SCREW Price: $11.94 |
| 60 | 104-2157 | SPACER-LOCATING Price: $14.59 |
| 61 | 104-2158 | SCREW-COUNTERSUNK Price: $8.87 |
| 62 | 112-6196 | RETURN-ARM Price: $29.68 |
| 63 | 104-2119 | PUCK-ADJUSTING Price: $34.25 |
| 64 | 112-6197 | WASHER-FLAT Price: $6.35 |
| 65 | 104-5356 | SPRING-EXTENSION Price: $13.09 |
| 66 | 104-5357 | SPACER Price: $19.92 |
| 67 | 112-6198 | BRACKET-TORQUE Price: $19.69 |
| 68 | 104-5360 | WASHER Price: $5.18 |
| 69 | 104-2189 | PLUG-THREAD, STRAIGHT Price: $24.99 |
| 70 | 104-2148 | SCREW-TTH Price: $9.09 |
| 71 | 104-5361 | O-RING Price: $5.36 |
| 72 | 104-5363 | GUIDE-SPRING Price: $6.39 |
| 73 | 106-6522 | CENTER SECTION FILTER BYPASS ASM Price: $378.82 |
| 74 | 106-6523 | FILTER ASM Price: $72.38 |
| 76 | 104-5369 | EXPANSION TANK KIT Price: $69.93 |
