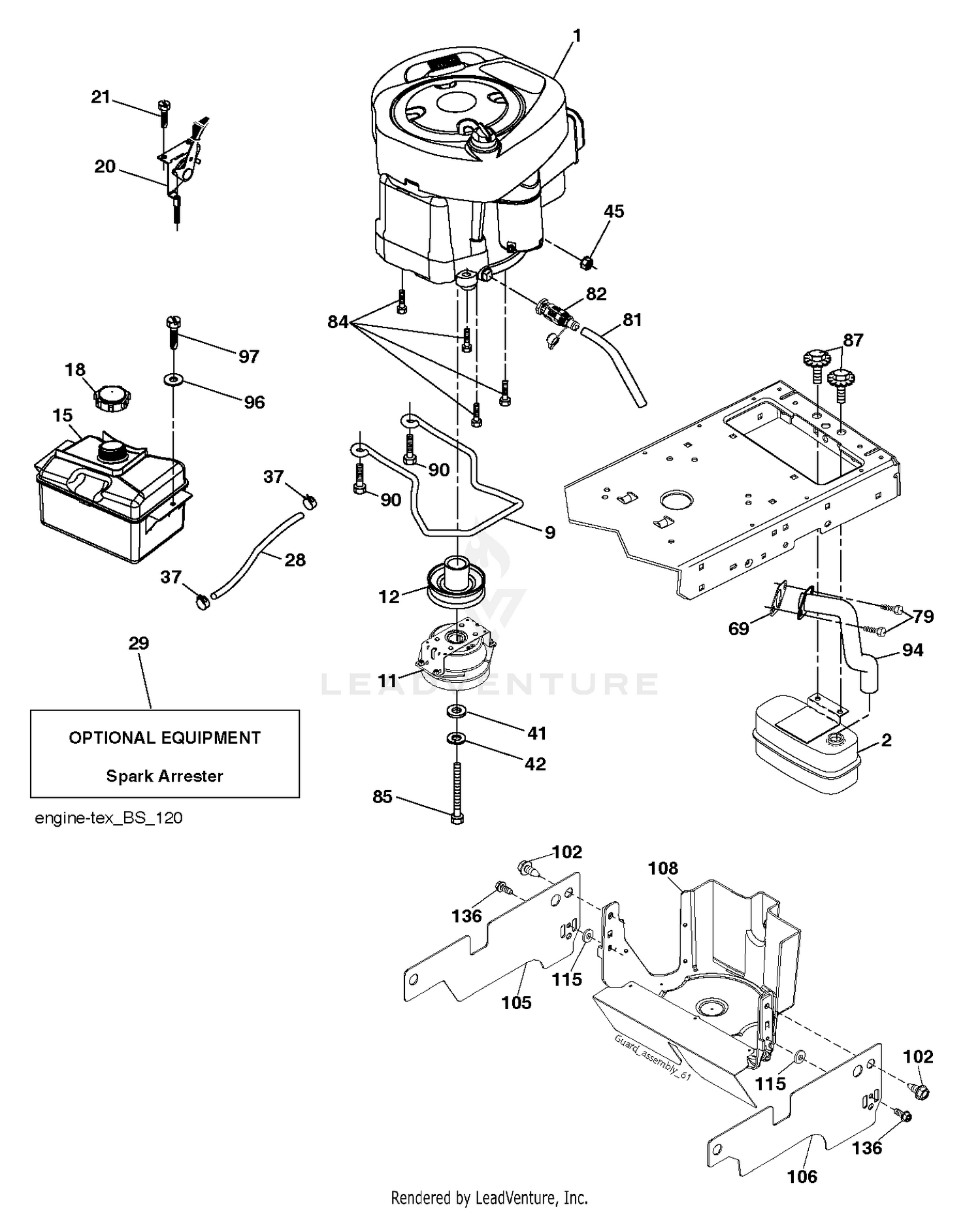

| Ref | Part Number | Description |
|---|
| 1 |
60-8950 |
PLATE-SUPPORT Price: $24.49 |
| 2 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 4 |
60-8960 |
CAP Price: $4.53 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 9 |
60-8940 |
HANDLE ASM. Price: $41.78 |
| 10 |
60-8930 |
BRACKET-OUTER TUBE Price: $289.37 |
| 11 |
587241501 |
CLUTCH.OGURA.4.4PD.GT1.5-EH13V Price: $199.99 |
| 11 |
60-8970 |
TUBE-SCREW ASM Price: $321.72 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
55-7190 |
PIN AND CHAIN ASM Price: $15.70 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 20 |
587242604 |
THROTTLE CABLE This part replaces 587242601. Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 Price: $19.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 105 |
501267202 |
SHIELD.SIDE.LH.3842"TEX FRN.BK Price: $12.99 |
| 106 |
501268202 |
SHIELD.SIDE.LH.3842"TEX FRN.BK Price: $11.99 |
| 108 |
587179509 |
COVER ENGINE PULLEY COVER WITH Price: $69.99 |
| 115 |
532431761 |
RETAINER Price: $3.99 |
| 136 |
596434001 |
Screws This part replaces 532421756. Price: $2.99 |
