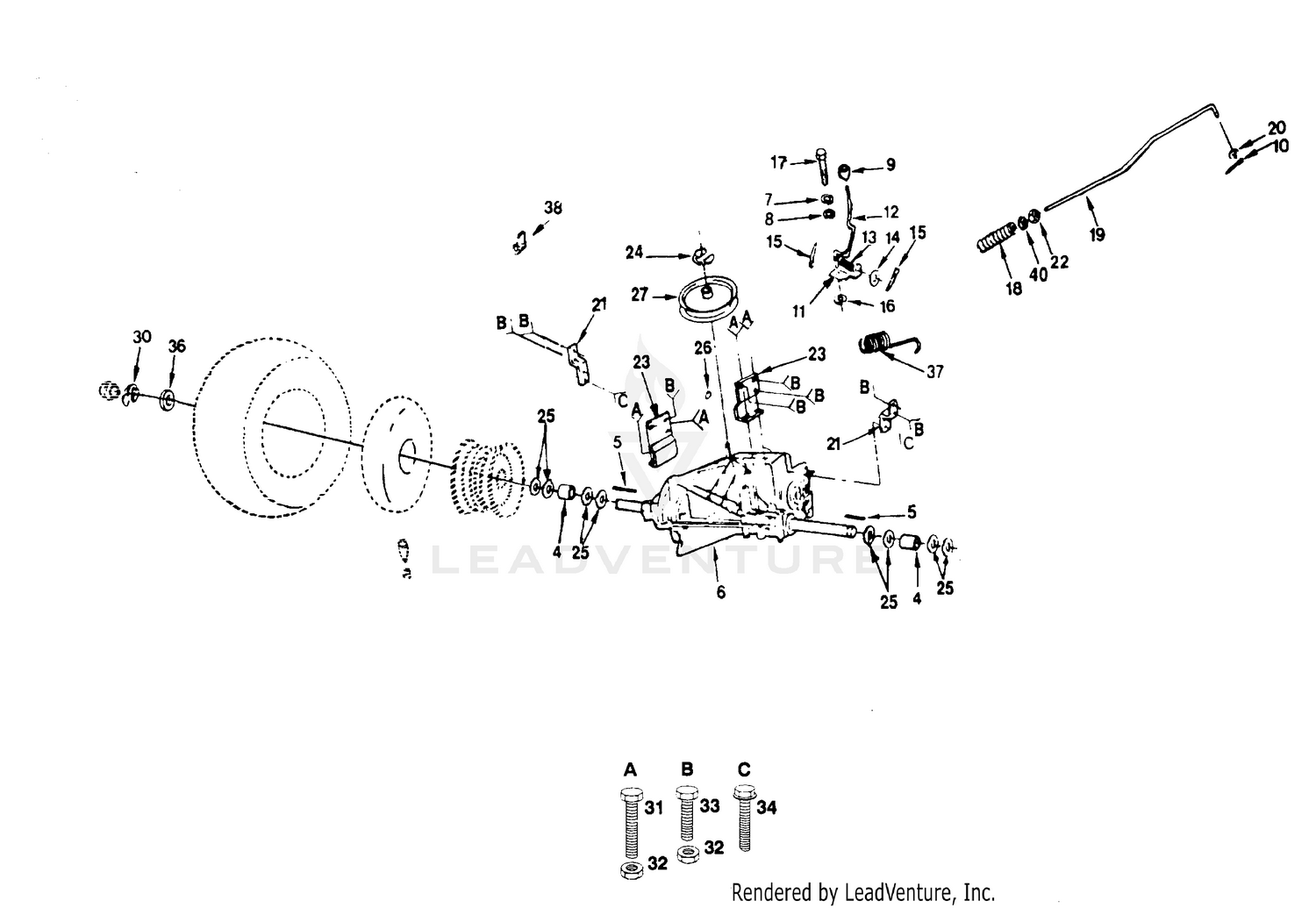

| Ref | Part Number | Description |
|---|
| 1 |
108-6715 |
GAUGE BAR ASM Price: $148.12 |
| 2 |
29-9100 |
BRUSH AND HANDLE ASM Price: $58.15 |
| 4 |
115-0803 |
ROLLER REBUILD TOOL KIT Price: $122.41 |
| 4 |
532109502 |
Spacer, Split (AYP part number) Price: $3.99 |
| 5 |
532123583 |
Key, Square 3/16 x 2 (AYP part number) Price: $2.99 |
| 6 |
532120898 |
Transaxle, Foote, 6 speed (AYP part number) Price: $668.54 |
| 7 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 8 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 9 |
532106933 |
Knob, Control (AYP part number) Price: $3.99 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 11 |
532106919 |
Plate, Rod, Shift (AYP part number) Price: $11.90 |
| 12 |
532124461 |
Rod, Shifter (AYP part number) Price: $8.59 |
| 13 |
532105700 |
Spring, Torsion (AYP part number) Price: $4.60 |
| 14 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. (AYP part number) Price: Call Us |
| 15 |
876020416 |
Pin, Cotter 1/8 x 1 (AYP part number) Price: $3.99 |
| 16 |
532105701 |
Washer, Shift Plate (AYP part number) Price: $3.99 |
| 17 |
871040412 |
Bolt, Hex 1/4-28 x 3/4 Grade 8 (AYP part number) Price: $3.99 |
| 18 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 19 |
532131876 |
Rod, Brake (AYP part number) Price: $3.33 |
| 20 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 21 |
532121520 |
Strap, Torque (AYP part number) Price: $3.99 |
| 22 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 23 |
532109167 |
Bracket, Transaxle (AYP part number) Price: $2.86 |
| 24 |
812000028 |
Ring, Retainer (AYP part number) Price: $4.99 |
| 25 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $1.99 |
| 26 |
532125096 |
Woodruff Key 3/16 x 3/4 (AYP part number) Price: $3.99 |
| 27 |
532123666 |
Pulley, Input Transaxle (AYP part number) Price: $22.99 |
| 30 |
812000001 |
E-Ring (AYP part number) Price: $2.99 |
| 31 |
874760644 |
Bolt, Hex 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 32 |
873680600 |
Locknut 3/8-16 Price: $1.99 |
| 33 |
874760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 34 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 36 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number) Price: $1.99 |
| 37 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 38 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
