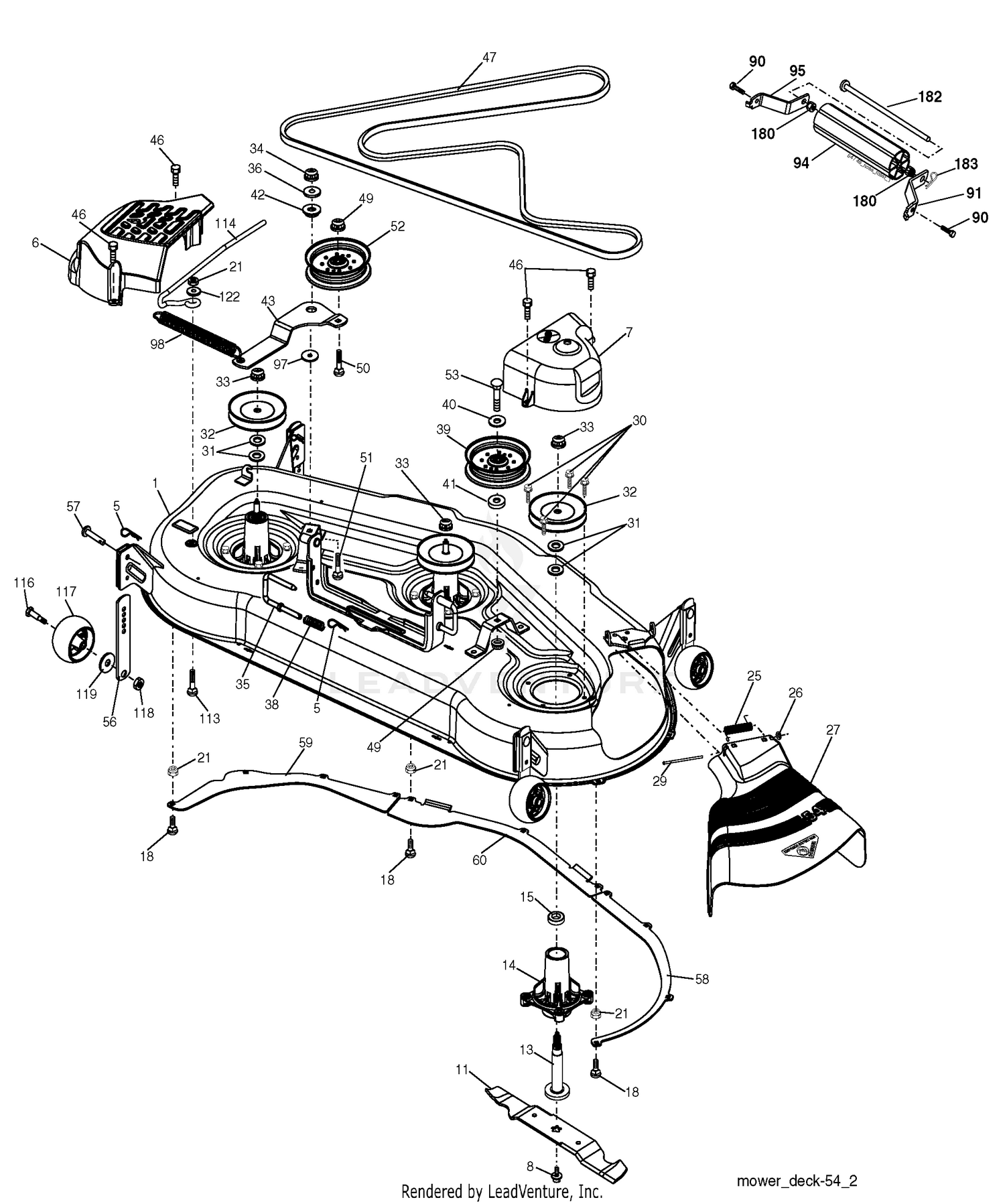

| Ref | Part Number | Description |
|---|
| 1 |
194846 |
Deck Weldment Mower Price: Call Us |
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
93-7996-01 |
COVER-TOWER Price: $64.83 |
| 3 |
106-5950 |
RH FENDER ASM Price: $661.25 |
| 4 |
105-3301 |
LATCH ASM Price: $44.73 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
187297 |
Cover Mandrel LH Price: Call Us |
| 6 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 7 |
188187 |
Cover Mandrel RH Price: Call Us |
| 7 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
3269-8 |
RIVET-BLIND Price: $0.51 |
| 9 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 10 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 11 |
187254 |
Blade, Standard (For mulching mowers only) Price: Call Us |
| 11 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 12 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 13 |
92-7633 |
BUMPER-HOOD Price: $18.01 |
| 14 |
106-7064 |
DECAL Price: $53.40 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
105-0130 |
HOOD Price: $4,040.92 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 17 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 17 |
93-7582 |
HOSE Price: $6.64 |
| 18 |
94-2617 |
PUMP COVER ASM Price: $250.50 |
| 19 |
115-8044 |
KIT-REAR FRAME ASM This part replaces 105-0116. Price: $3,548.39 |
| 20 |
72-3560 |
DECAL Price: $12.52 |
| 21 |
106-5951 |
LH FENDER ASM Price: $625.15 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 22 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 23 |
106-9239 |
KIT-FRAME, FRONT This part replaces 105-0117. Price: $5,016.47 |
| 24 |
75-1390-01 |
COVER-ACCESS, FRONT Price: $78.27 |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 25 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 27 |
187257X428 |
Deflector Shield Price: Call Us |
| 27 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 28 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 30 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
66-6480 |
WASHER Price: $1.29 |
| 32 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 32 |
177865 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 33 |
32128-20 |
NUT-HF Price: $0.99 |
| 34 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 34 |
73680600 |
Nut Price: Call Us |
| 35 |
188635 |
Pin Suspension Rear Price: Call Us |
| 35 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 36 |
98-9321 |
RING-KEY Price: $1.80 |
| 37 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 38 |
104-1453 |
GROMMET Price: $6.57 |
| 38 |
188657 |
Spring Compression Price: Call Us |
| 39 |
187284 |
Pulley, Idler, Stationary Price: Call Us |
| 40 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 40 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 41 |
19132203 |
Washer 13/32 x 1-3/8 x 3 Ga. Price: Call Us |
| 42 |
165723 |
Spacer, Retainer Price: Call Us |
| 43 |
196216 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
191273 |
V-Belt, Mower, Secondary Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt, Carr. 3/8-16 x 2 Price: Call Us |
| 51 |
72110610 |
Bolt Price: Call Us |
| 52 |
188460 |
Pulley Idler Clutching Price: Call Us |
| 53 |
74780636 |
Bolt Fin Hex 3/8-16 unc x 2-1/4 Price: Call Us |
| 56 |
155986 |
Bar Pnt Adj. Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 58 |
187342 |
Baffle Right Price: Call Us |
| 59 |
187344 |
Baffle Left Price: Call Us |
| 60 |
187607 |
Baffle Center Price: Call Us |
| 90 |
74760516 |
Bolt 5/16-18 x 1 Price: Call Us |
| 91 |
180535 |
Bracket Asm N Roller RH Price: Call Us |
| 94 |
176066 |
Roller Nose 48" Price: Call Us |
| 95 |
180534 |
Bracket Asm N Roller LH Price: Call Us |
| 97 |
19133210 |
Washer Hardened Price: Call Us |
| 98 |
187282 |
Spring Clutch Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 180 |
73800500 |
Nut 5/16-18 Price: Call Us |
| 182 |
179127 |
Rod Roller Nose Narrow Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
