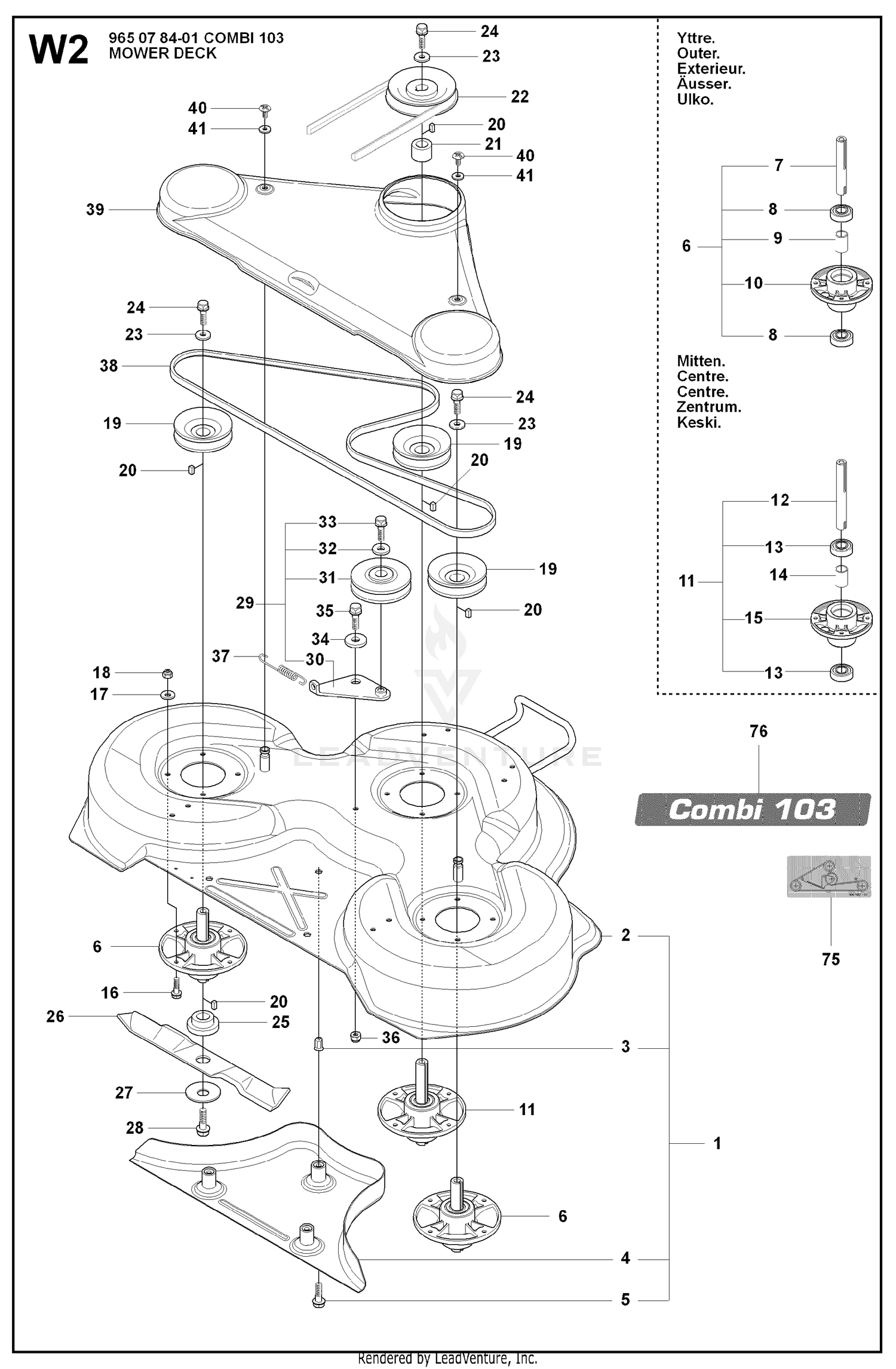

| Ref | Part Number | Description |
|---|
| 1 |
322-9 |
SCREW-HH Price: $3.09 |
| 1 |
544112903 |
CUTTING DECK Price: $349.99 |
| 2 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 2 |
544112801 |
CUTTING DECK ASSY Price: $318.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
506916201 |
NUT Price: $4.99 |
| 4 |
138-8207 |
DAMPER This part replaces 105-7280. Price: $181.45 |
| 4 |
544449201 |
PLUG Price: $64.99 |
| 5 |
108-9829-03 |
LEVER-DAMPER Price: $24.06 |
| 5 |
506570104 |
BOLT Price: $4.99 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
576384102 |
BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 7 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 7 |
544067902 |
SHAFT Price: $37.99 |
| 8 |
108-9830 |
SHAFT-PIVOT Price: $40.68 |
| 8 |
738230434 |
BEARING Price: $17.99 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
544068001 |
SPACER Price: $11.99 |
| 10 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 10 |
576384201 |
BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 11 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
576384101 |
BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 12 |
125-2688 |
LH LEVER ASM Price: $205.83 |
| 12 |
544067901 |
SHAFT Price: $39.99 |
| 13 |
112-5099 |
LINK ASM Price: $76.35 |
| 13 |
738230434 |
BEARING Price: $17.99 |
| 14 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 14 |
544068001 |
SPACER Price: $11.99 |
| 15 |
105-6814 |
WASHER-PLAIN Price: $0.69 |
| 15 |
576384201 |
BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 16 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 16 |
535423801 |
BOLT Price: $4.99 |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 17 |
734116401 |
WASHER BRB 8.4X17 Price: $5.99 |
| 18 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 18 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 19 |
3219-2 |
NUT-HEX Price: $0.37 |
| 19 |
506922101 |
PULLEY Price: $29.99 |
| 20 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 20 |
506533501 |
KEY Price: $3.99 |
| 21 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 21 |
544068002 |
SPACER Price: $9.99 |
| 22 |
1-603735 |
BUSHING-FLANGED Price: $5.69 |
| 22 |
506778601 |
PULLEY Price: $49.99 |
| 23 |
1-603807 |
SPRING-RETURN, NEUTRAL Price: $3.29 |
| 23 |
734117441 |
WASHER Price: $3.99 |
| 24 |
1-603737 |
BOLT-RETURN, NEUTRAL Price: $7.99 |
| 24 |
544114101 |
SCREW Price: $3.99 |
| 25 |
323-7 |
SCREW-HH Price: $0.65 |
| 25 |
535504202 |
ADAPTER Price: $19.99 |
| 26 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 26 |
504188210 |
BLADE Price: $27.99 |
| 27 |
120-5562-03 |
LEVER-CONTROL, MOTION This part replaces 108-9833-03. Price: $81.51 |
| 27 |
588145601 |
WASHER This part replaces 506792301. Price: $6.99 |
| 28 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 28 |
544114101 |
SCREW Price: $3.99 |
| 29 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 29 |
586966601 |
BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 30 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 30 |
586966601 |
BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 31 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 31 |
506532701 |
PULLEY Price: $39.99 |
| 32 |
734116441 |
SPACER Price: $3.99 |
| 32 |
99-3410 |
SWITCH Price: $95.63 |
| 33 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 33 |
506558302 |
BOLT Price: $3.99 |
| 34 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 34 |
584288604 |
Washers This part replaces 506918702. Price: $3.99 |
| 35 |
125-2687 |
RH LEVER ASM Price: $488.11 |
| 35 |
725245171 |
SCREW Price: $2.08 |
| 36 |
108-9831 |
HUB-CONTROL Price: $124.06 |
| 36 |
732211801 |
LOCKNUT M8 Price: $3.99 |
| 37 |
105-3455 |
BUSHING Price: $2.89 |
| 37 |
506533101 |
SPRING Price: $9.99 |
| 38 |
105-3481 |
WASHER-THRUST Price: $1.19 |
| 38 |
589530601 |
BELT This part replaces 506768501. Price: $54.99 |
| 39 |
32152-6 |
NUT-LOCK, CONE Price: $7.99 |
| 39 |
544096103 |
BELT COVER C103 HUSQ - GREY This part replaces 544096101. Price: $74.99 |
| 40 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 40 |
506982601 |
SCREW Price: $5.99 |
| 41 |
506559701 |
WASHER Price: $4.99 |
| 76 |
544238103 |
DECAL Price: $4.99 |
