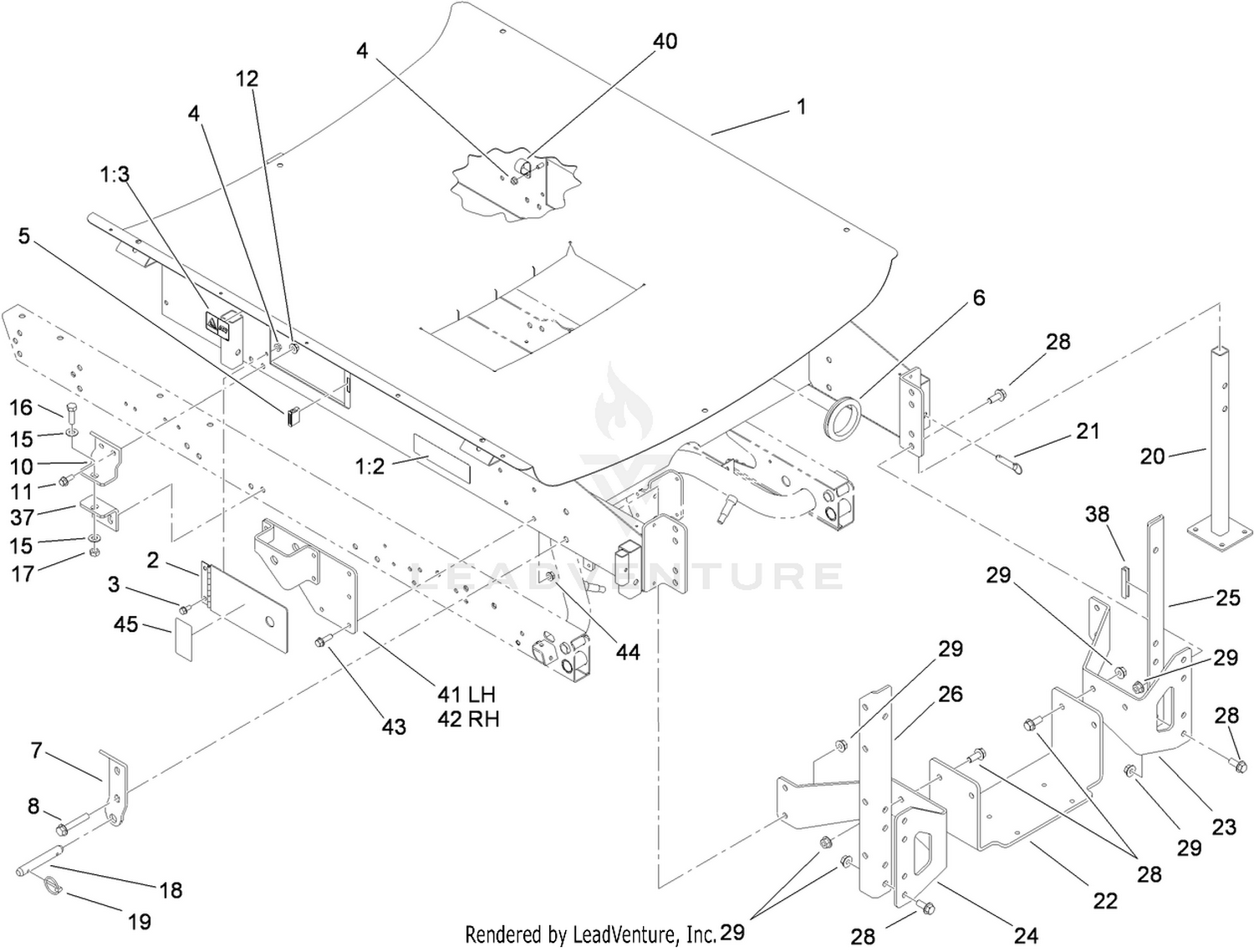

Skid and Frame Assembly
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-1367 | SKID ASM Price: $1,934.60 |
| 2 | 106-1290-03 | DOOR ASM Price: $110.54 |
| 3 | 3234-5 | SCREW-HHF Price: $0.42 |
| 4 | 32128-20 | NUT-HF Price: $0.99 |
| 5 | 92-3700 | MAGNET-DOOR Price: $20.72 |
| 6 | 237-102 | GROMMET Price: $62.07 |
| 7 | 107-2858 | PIVOT-LUG Price: $33.94 |
| 8 | 3234-40 | SCREW-HF Price: $3.38 |
| 10 | 107-2859 | BRACKET-MOUNT, FRONT Price: $33.22 |
| 11 | 3234-42 | SCREW-HHF Price: $1.10 |
| 12 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 15 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 16 | 325-6 | SCREW-HH Price: $1.42 |
| 17 | 32153-5 | NUT-HEX Price: $1.59 |
| 18 | 92-1233 | PIN-CLEVIS Price: $15.45 |
| 19 | 92-1298 | PIN-LYNCH Price: $2.27 |
| 20 | 105-9482-03 | JACK STAND ASM Price: $67.88 |
| 21 | 100-4523 | PIN-HITCH Price: $13.08 |
| 22 | 106-1345-03 | BASE-PUMP Price: $119.99 |
| 23 | 108-3496-03 | BRACKET-PUMP, RH Price: $128.98 |
| 24 | 108-3497-03 | BRACKET-PUMP, LH Price: $128.98 |
| 25 | 108-3703-03 | ANGLE-BOOM MOUNT, RH Price: $71.31 |
| 26 | 108-3704-03 | ANGLE-BOOM MOUNT, LH Price: $71.31 |
| 28 | 3234-32 | SCREW-HHF Price: $8.48 |
| 29 | 32128-49 | NUT-HHF Price: $1.04 |
| 37 | 92-2667-03 | BRACKET-MOUNT Price: $14.23 |
| 38 | 70-2041 | TRIM Price: $5.30 |
| 40 | 2412-126 | R-CLAMP Price: $2.51 |
| 41 | 119-0686-03 | LH CYLINDER MOUNT ASM Price: $91.37 |
| 42 | 119-0688-03 | RH CYLINDER MOUNT ASM Price: $87.44 |
| 43 | 110-5050 | SCREW-HHF Price: $2.59 |
| 44 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
