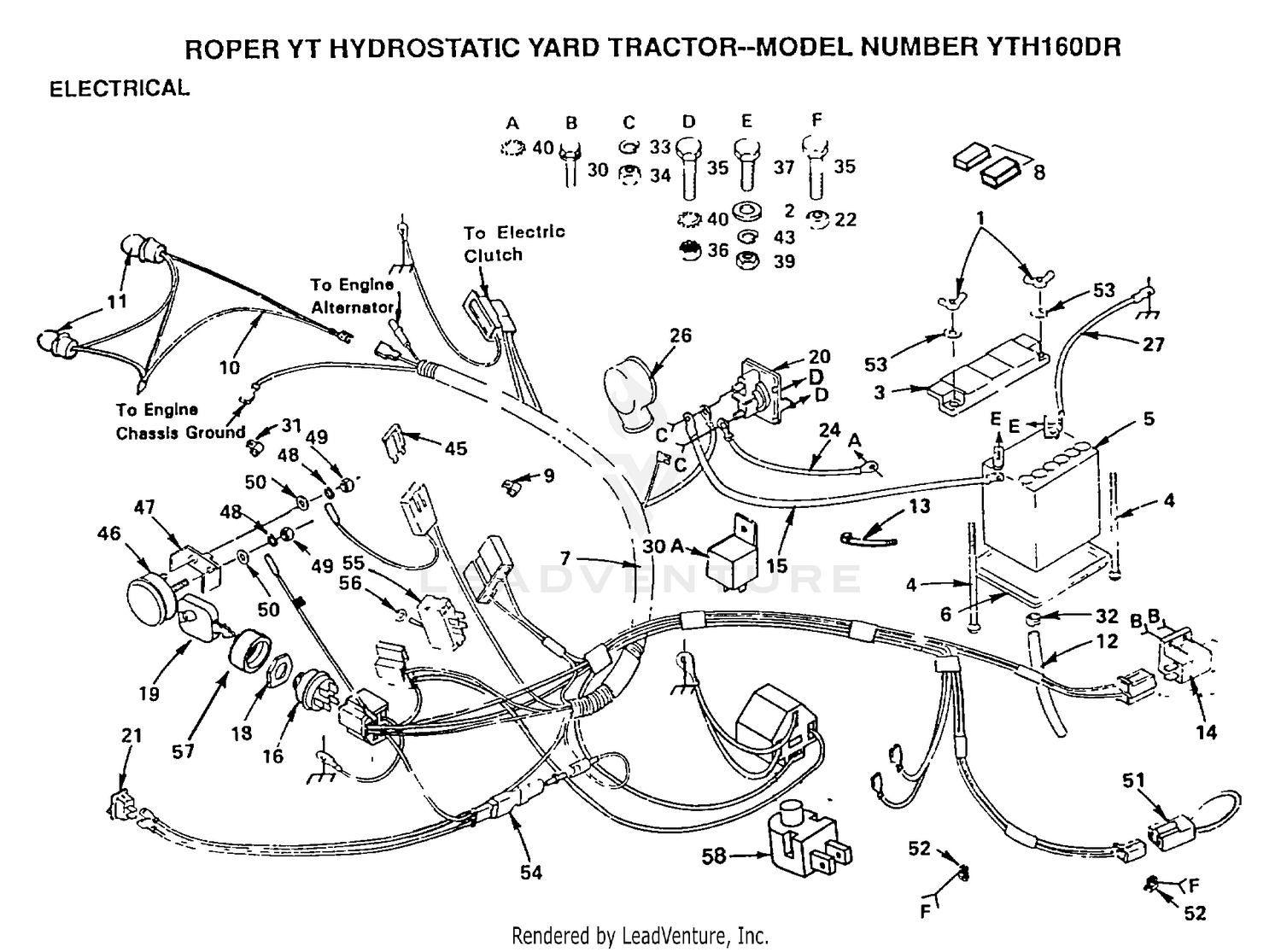

| Ref | Part Number | Description |
|---|
| 1 |
73490400 |
SUB= 146525 Price: Call Us |
| 1 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 2 |
19091016 |
WASHER Price: Call Us |
| 2 |
98-9423 |
O-RING Price: $6.07 |
| 3 |
102476X |
SUB= 150109 Price: Call Us |
| 3 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 4 |
72240460 |
BOLT Price: Call Us |
| 4 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 5 |
121537X |
SUB= 123899X Price: Call Us |
| 5 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 6 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 7 |
121534X |
NLA Price: Call Us |
| 7 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 8 |
98-9447 |
O-RING Price: $18.23 |
| 9 |
4171R |
CLIP T Price: Call Us |
| 9 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 10 |
110859X |
HARNESS T Price: Call Us |
| 10 |
98-9452 |
SCREW Price: $7.23 |
| 11 |
7662J |
SUB= 4152J Price: Call Us |
| 11 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 12 |
100541K |
SUB= 7697J Price: Call Us |
| 12 |
98-9433 |
SHIM Price: $2.13 |
| 13 |
7192 |
J WIRE TIE Price: Call Us 7192 J |
| 13 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 14 |
104445X |
SWITCH-INTER. GT Price: Call Us |
| 14 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 15 |
4206J |
CABLE-BATTERY T Price: Call Us |
| 15 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 16 |
4406R |
SUB= STD365402 Price: Call Us |
| 16 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 17 |
98-9466 |
PLUG Price: $12.54 |
| 18 |
109788X |
SUB= 124211X Price: Call Us |
| 18 |
98-9451 |
GASKET Price: $1.92 |
| 19 |
109434X |
KEY MOLDED Price: Call Us |
| 19 |
98-9445 |
GASKET Price: $1.84 |
| 20 |
109081X |
SUB= 146154 Price: Call Us |
| 20 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 21 |
110712X |
SWITCH LT Price: Call Us |
| 21 |
98-9446 |
GASKET Price: $2.50 |
| 22 |
73680400 |
SUB= 73690400 Price: Call Us |
| 22 |
98-9430 |
SCREW Price: $19.45 |
| 23 |
98-9643 |
INJECTION PUMP ASM This part replaces 98-9463. Price: $2,551.99 |
| 24 |
98-9465 |
PLATE Price: $9.73 |
| 25 |
98-9442 |
SCREW Price: $26.58 |
| 26 |
719J |
SUB= 154336 Price: Call Us |
| 26 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 27 |
4207J |
CABLE T Price: Call Us |
| 30 |
17021008 |
SCREW Price: Call Us |
| 30A |
109748X |
RELAY ASSY T Price: Call Us |
| 31 |
2751R |
CLIP T Price: Call Us |
| 33 |
10090400 |
SUB= 10040400 Price: Call Us |
| 34 |
73350400 |
NUT Price: Call Us |
| 35 |
74780408 |
BOLT Price: Call Us |
| 36 |
73510400 |
NUT Price: Call Us |
| 37 |
74760412 |
BOLT LT Price: Call Us |
| 39 |
73220400 |
SUB= 50675 Price: Call Us |
| 40 |
11050400 |
LOCKWASHER Price: Call Us |
| 43 |
10040400 |
LOCKWASHER Price: Call Us |
| 45 |
108824X |
FUSE HYT Price: Call Us |
| 46 |
9433R |
AMMETER T Price: Call Us |
| 47 |
6009J |
SUB= 532131708 Price: Call Us |
| 48 |
10101000 |
SUB= 10071000 Price: Call Us |
| 49 |
73911000 |
NUT Price: Call Us |
| 50 |
19070818 |
WASHER Price: Call Us |
| 51 |
102501X |
SUB= 141940 Price: Call Us |
| 52 |
235R |
CLIPT Price: Call Us |
| 53 |
11030400 |
LOCKWASHER GT Price: Call Us |
| 54 |
106315X |
SUB= 135665 Price: Call Us |
| 55 |
4021J |
SWITCH.PTO.T Price: Call Us |
| 56 |
4022J |
HEX NUT T Price: Call Us |
| 57 |
109787X |
SUB= 147626 Price: Call Us |
| 58 |
121305X |
SWITCH SEAT Price: Call Us |
| 59 |
74641008 |
SUB= 71031008 Price: Call Us |
| 101539X |
SHEET |
INSTR LT Price: Call Us 101539X |
| 121696X |
OWNERS |
MANUAL Price: Call Us 121696X |
