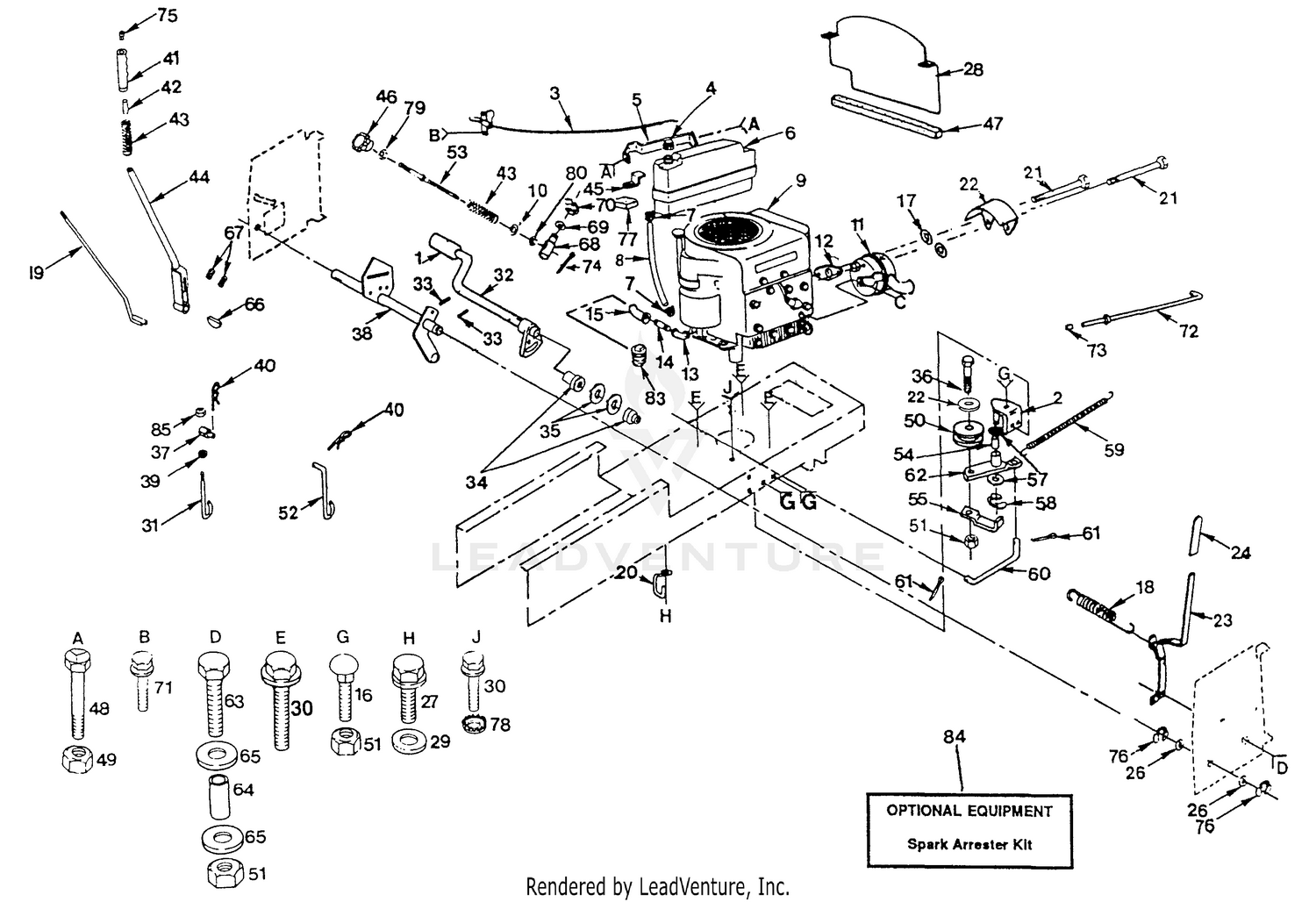

| Ref | Part Number | Description |
|---|
| 1 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 2 |
532123102 |
BRKT ASM Price: $11.99 |
| 3 |
532121275 |
CONTROL.THROTTLE Price: $3.33 |
| 4 |
532008504 |
FUEL CAP LT This part replaces 532124912. Price: $9.53 |
| 5 |
532121281 |
SUPT TANK FUEL Price: $9.15 |
| 6 |
532121280 |
FUEL TANK NLA Price: $50.26 |
| 7 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 8 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 863083730. Price: $5.99 |
| 9 |
532124136 |
Engine Briggs & Stratton, Type No. 0412-01 Price: Call Us |
| 10 |
819131016 |
WASHER Price: $2.99 |
| 11 |
532121304 |
MUFFLER Price: $155.56 |
| 12 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532125593. Price: $8.99 |
| 13 |
813310300 |
STREET ELBOW LT Price: $8.99 |
| 14 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
872140606 |
Bolt, Carriage 3/8 - 16 x 3/4 Price: $4.99 |
| 17 |
596040101 |
Washers This part replaces 819151616. Price: $2.99 |
| 18 |
532102727 |
SPRING.EXT.8.5" Price: $6.99 |
| 19 |
532121719 |
ROD ASS'Y LEVER Price: $33.83 |
| 20 |
532121218 |
KEEPER BELT ENGLH Price: $2.86 |
| 21 |
532121744 |
BOLT Price: $6.00 |
| 22 |
532121742 |
HEAT SHIELD Price: $3.08 |
| 23 |
532106983 |
HANDLE YT Price: $30.18 |
| 24 |
532124917 |
GRIP-HANDLE T Price: $4.42 |
| 25 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 26 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 27 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 28 |
532126423 |
BAFFLE,VERTICAL NLA Price: $19.27 |
| 29 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 30 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 31 |
532110448 |
LINK ADJ T Price: $7.99 |
| 32 |
532122424 |
SHAFT FOOT PEDAL Price: $21.56 |
| 33 |
532001572 |
PIN.ROLL.3/16 X 1" Price: $3.99 |
| 34 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 35 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 36 |
874760644 |
BOLT Price: $3.99 |
| 37 |
532132793 |
LIFT TRUNION This part replaces 532110447. Price: $4.99 |
| 38 |
532120174 |
SHAFT T Price: $45.71 |
| 39 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99 |
| 40 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 41 |
532109413 |
GRIP Price: $3.99 |
| 42 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 43 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 45 |
532104799 |
BRACE-TANK LT Price: $5.39 |
| 46 |
532121891 |
HDLE ADJ LIFT Price: $4.99 |
| 47 |
532105037 |
FOAM-STRIP LT This part replaces 532104915. Price: $2.38 |
| 48 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 49 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 50 |
532139245 |
PULLEY IDLER This part replaces 532123766. Price: $32.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
532110029 |
LIFT LINK LT Price: $3.45 |
| 53 |
532110729 |
ROD LIFT LT Price: $18.99 |
| 54 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 55 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 57 |
532110812 |
WASHER LT Price: $3.10 |
| 58 |
812000039 |
KLIP RING Price: $4.99 |
| 59 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 60 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 61 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 62 |
532123789 |
ARM IDLER Price: $13.07 |
| 63 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 64 |
532108056 |
BUSHING YT Price: $1.84 |
| 65 |
819121612 |
Washer 3/8 x 1 x 12 Ga. Price: $2.42 |
| 66 |
532124997 |
KEY STD Price: $2.38 |
| 67 |
823180606 |
SCREW Price: $3.99 |
| 68 |
532110810 |
TRUNION LT Price: $17.99 |
| 69 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. Price: $2.45 |
| 70 |
812000037 |
Klip Ring Price: $4.99 |
| 71 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 72 |
532133261 |
BRAKE PARK ROD This part replaces 532125637. Price: $4.99 |
| 73 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 74 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 75 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 76 |
812000022 |
E-RING Price: $3.99 |
| 77 |
532006431 |
PAD-SPACER T Price: $2.38 |
| 78 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 79 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 83 |
813290300 |
PLUG T Price: $3.99 |
| 84 |
532121851 |
SPARK ARREST Price: $26.83 |
