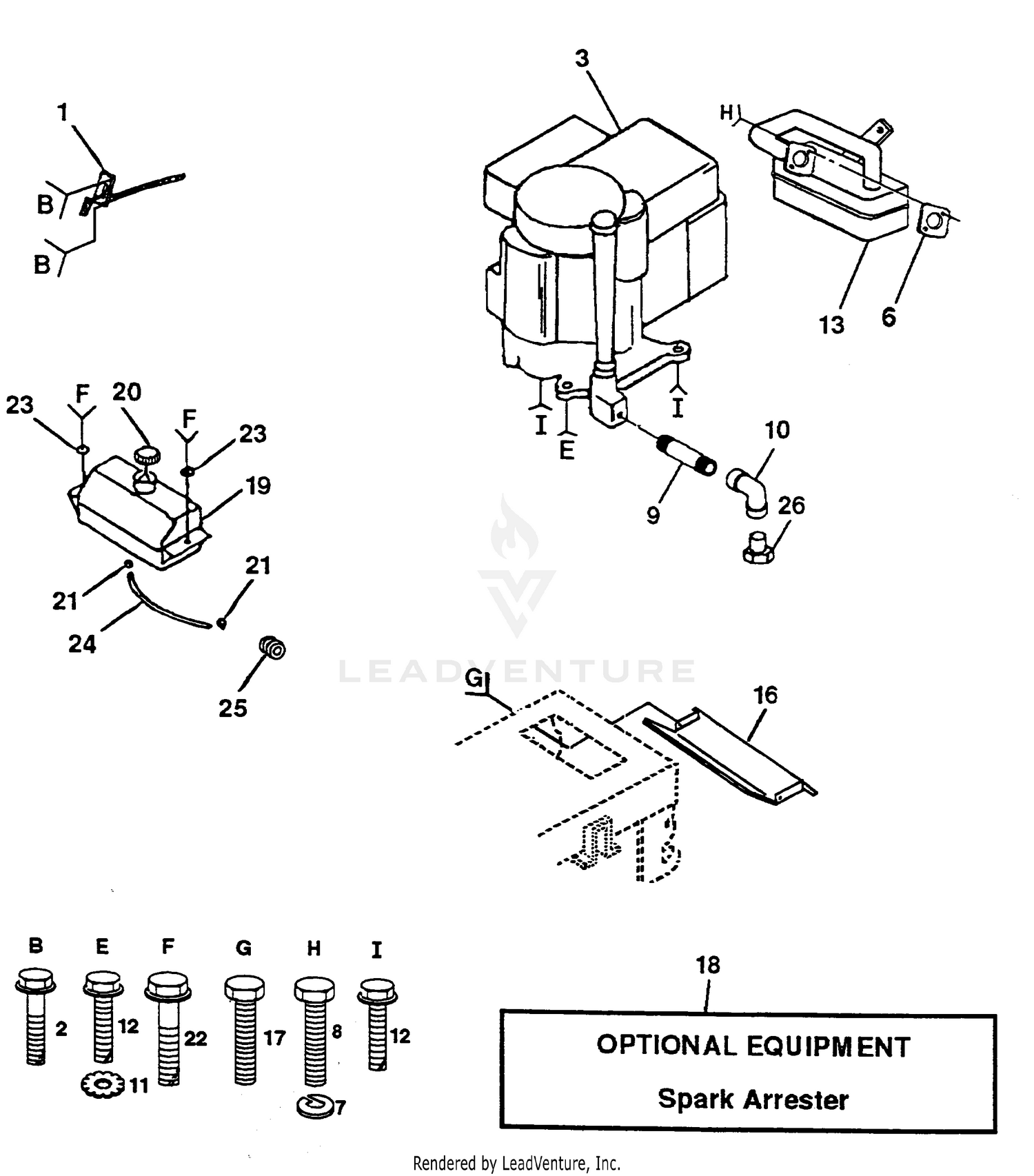

| Ref | Part Number | Description |
|---|
| 1 |
532132771 |
Control Th/ch RH Blk Tee 15 10 Price: $35.99 |
| 1 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 2 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 2 |
539990072 |
HCS 1/4C X 5/8 This part replaces 817720410. Price: $1.99 |
| 3 |
233-42 |
KNOB Price: $12.88 |
| 4 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 5 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532125593. Price: $7.99 |
| 6 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 7 |
810040500 |
Washer Lock Hvy HlcI Spr 5/16 Price: $2.99 |
| 7 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 8 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 8 |
532192334 |
Screw Socket Hd 5/16-18 x .75 This part replaces 871070512. Price: $2.99 |
| 9 |
104-9261 |
DISCONTINUED Price: Call Us |
| 9 |
813280324 |
Nipple Pipe 3/8 Npt X 3" Price: Call Us |
| 10 |
104-9296 |
DECAL-CONTROL Price: $27.94 |
| 10 |
813200300 |
Elbow Std 90 Degree 3/8-18 Npt Price: $4.99 |
| 11 |
104-9251-03 |
PLATE-INSTRUMENT Price: $95.17 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 811050600. Price: $1.49 |
| 12 |
874760620 |
Bolt Fin Hex 3/8-16 UNC x 1-1/4 This part replaces 817490620. Price: $3.99 |
| 12 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 13 |
322-8 |
SCREW-HH Price: $1.26 |
| 13 |
532137348 |
Muffler LT B&S 12/12 5 HP Price: $45.99 |
| 14 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 15 |
93-5547 |
BUSHING-NYLON Price: $6.15 |
| 16 |
104-1499-03 |
BRACKET-BLOCK, FUSE Price: $43.35 |
| 16 |
532128953 |
Shield Heat Browning LT/YT Price: $3.08 |
| 17 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 17 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 Price: $1.99 |
| 18 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 18 |
532137180 |
Kit Spark Arrestor (Flat Scrn) Price: $128.99 |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
532184900 |
TANK FUEL FRONT This part replaces 532109202. Price: $27.99 |
| 20 |
104-0027 |
BOX-CONTROL Price: $196.04 |
| 20 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532123549. Price: $14.99 |
| 21 |
105-8289 |
SPRING-TORSION This part replaces 93-5509. Price: $15.05 |
| 21 |
532123487 |
Clamp Hose Blk Price: $3.99 |
| 22 |
874760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 This part replaces 817490412. Price: $3.99 |
| 22 |
94-6767 |
DECAL-FUSES Price: $11.45 |
| 23 |
104-9298 |
DECAL-CONTROLLER Price: $6.16 |
| 23 |
819091416 |
Washer 9/32 X 7/8 X 16 Ga Price: $3.99 |
| 24 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 24 |
532008548 |
Line Fuel 13" Price: $2.99 |
| 25 |
104-1497 |
HINGE-RECEIVER Price: $13.90 |
| 26 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
321-14 |
SCREW-HH Price: $0.55 |
| 29 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 32 |
104-9337 |
HARNESS-ELECTRICAL Price: $1,688.72 |
| 33 |
94-6343 |
DECAL-IDENTIFICATION, WIRE Price: $6.86 |
| 36 |
115-5357-03 |
BRACKET-JOYSTICK This part replaces 93-5991-03. Price: $35.61 |
| 37 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 38 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 39 |
3290-329 |
SCREW-PPH Price: $0.22 |
| 40 |
61-2990 |
SPACER Price: $33.75 |
| 41 |
32128-33 |
NUT-HF Price: $0.25 |
| 42 |
111332 |
SWITCH Price: $10.99 |
