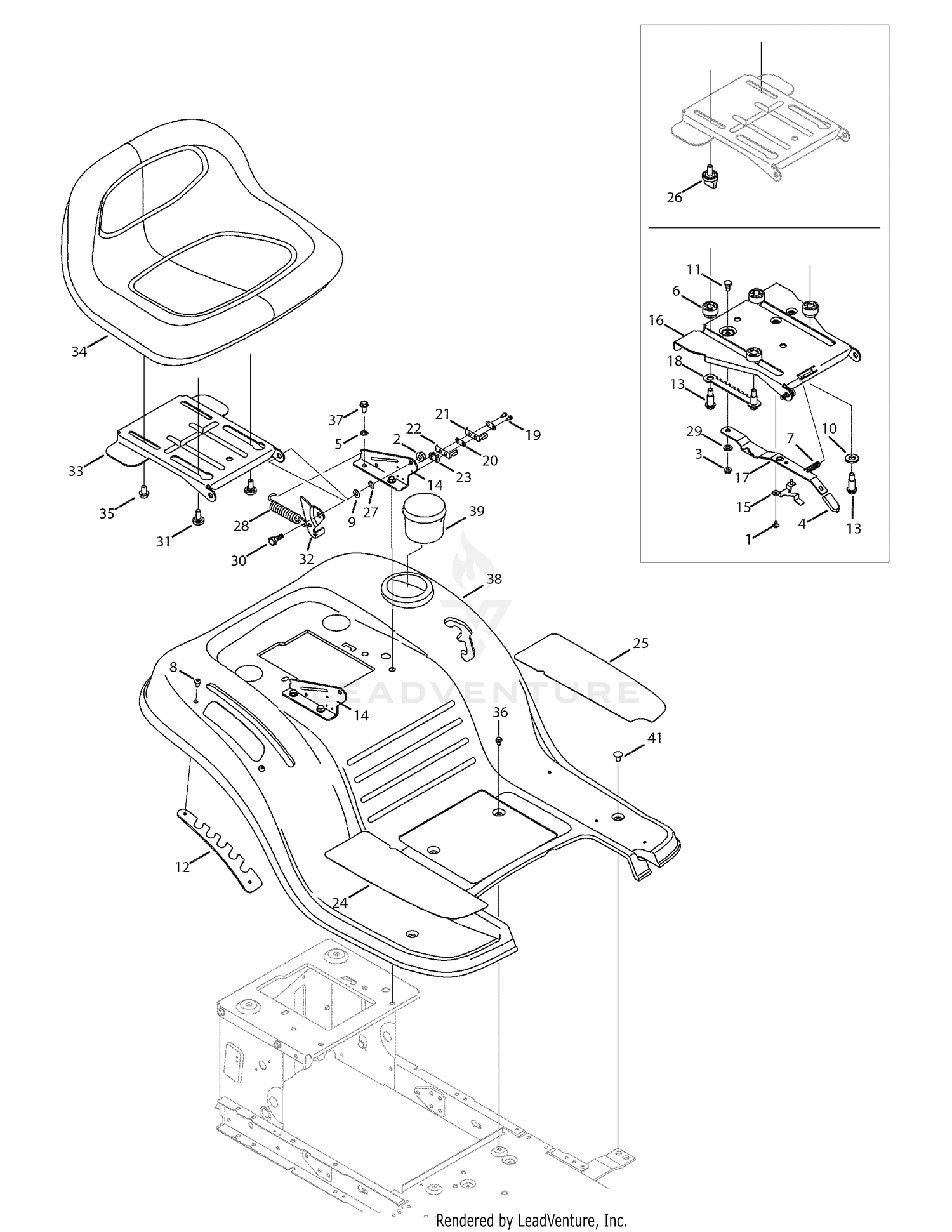

| Ref | Part Number | Description |
|---|
| 1 |
710-1268 |
Screw, #10-16, .375 Price: $3.90 |
| 2 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF Price: $3.56 |
| 3 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 4 |
720-0309A |
Seat Adjuster Grip Price: $8.22 |
| 5 |
736-0607 |
Lock Washer, 5/16 Price: $3.66 |
| 6 |
731-04074 |
Spacer Price: $6.89 |
| 7 |
732-0499 |
Compression Spring, .41 x 1.5 Price: $8.24 |
| 8 |
710-04483 |
SCREW 1/4-20 x .500 Price: $5.97 |
| 9 |
736-0242 |
Wash, Bell, .340 x .872 x .060 Price: $3.75 |
| 10 |
736-3019 |
Wash, Flat, .531x 1.062 x.134 Price: $5.45 |
| 11 |
738-0137A |
Screw, Shlder, .340 x .285,1/4-20 Price: $9.83 |
| 12 |
783-04843 |
Lift Adjustment Bracket Price: $26.30 |
| 13 |
738-0966A |
Screw, Shlder, .50 x .925, 3/8-16 Price: $4.08 |
| 14 |
783-1489C |
Mounting Bracket, Seat Price: $17.99 |
| 15 |
783-0611 |
Seat Stop Price: $9.14 |
| 16 |
783-0738D |
SEAT PIVOT BRACKET Not Available Price: |
| 17 |
783-0739A-0637 |
SEAT ADJUSTMENT LEVER Not Available This part replaces 783-0739A. Price: |
| 18 |
783-0753 |
Seat Adjustment Selector Price: $13.84 |
| 19 |
710-0227 |
Screw, #8-18 x .50 Price: $3.90 |
| 20 |
726-0279 |
Plate, Insulator Price: $3.22 |
| 21 |
925-1303 |
Outer Seat SPring This part replaces 725-1303. Price: $5.58 |
| 22 |
725-1439 |
Spring Switch, Inner Price: $7.18 |
| 23 |
726-0278 |
Plate, Insulator Boss Price: $5.95 |
| 24 |
723-04025 |
Foot Pad, Abrasive, RH Price: $29.02 |
| 24 |
735-04048 |
Foot Pad, Rubber RH Price: $16.72 |
| 25 |
723-04026 |
Foot Pad, Abrasive, LH Price: $29.04 |
| 25 |
735-04047 |
Foot Pad, Rubber LH Price: $16.65 |
| 26 |
720-04061 |
Knob, 3/8-16, .875 Price: $4.67 |
| 27 |
726-0201 |
Nut, Speed, .3125 Id Price: $6.01 |
| 28 |
732-1184 |
Spring, Exten., .84 Dia x 4.6 Lg. Price: $10.23 |
| 29 |
736-0204 |
Wash, Flat, .344 x .62 x .033 Price: $3.89 |
| 30 |
738-0296 |
Scr., Shlder, .437 x .268, 5/16-18 Price: $3.93 |
| 31 |
738-04012C |
Shoulder Screw, .625 x .145, 3/8-16 This part replaces 738-04012A. Price: $4.75 |
| 32 |
783-0209D |
Lift Bracket, Seat Price: $14.21 |
| 33 |
783-04081B |
Pivot Bracket, Seat Price: $26.56 |
| 34 |
757-04038A |
LOW BACK SEAT Not Available Price: |
| 34 |
757P06245 |
MEDIUM BACK SEAT This part replaces 757-04001A. Price: $196.09 |
| 34 |
957-04011 |
MEDIUM BACK SEAT Not Available This part replaces 757-04011. Price: |
| 35 |
710-04482 |
Screw, 3/8-16, .875 Price: $4.08 |
| 36 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 37 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 38 |
783-04587E |
FENDER This part replaces 783-04587A. Price: $299.62 |
| 39 |
731-04591A |
Cup Holder Price: $13.84 |
| 40 |
736-0140 |
Flat Washer, .395 x .62 x .063 Price: $6.20 |
| 40 |
736-0300 |
Flat Washer, .406 x .875 x .059 Price: $3.93 |
