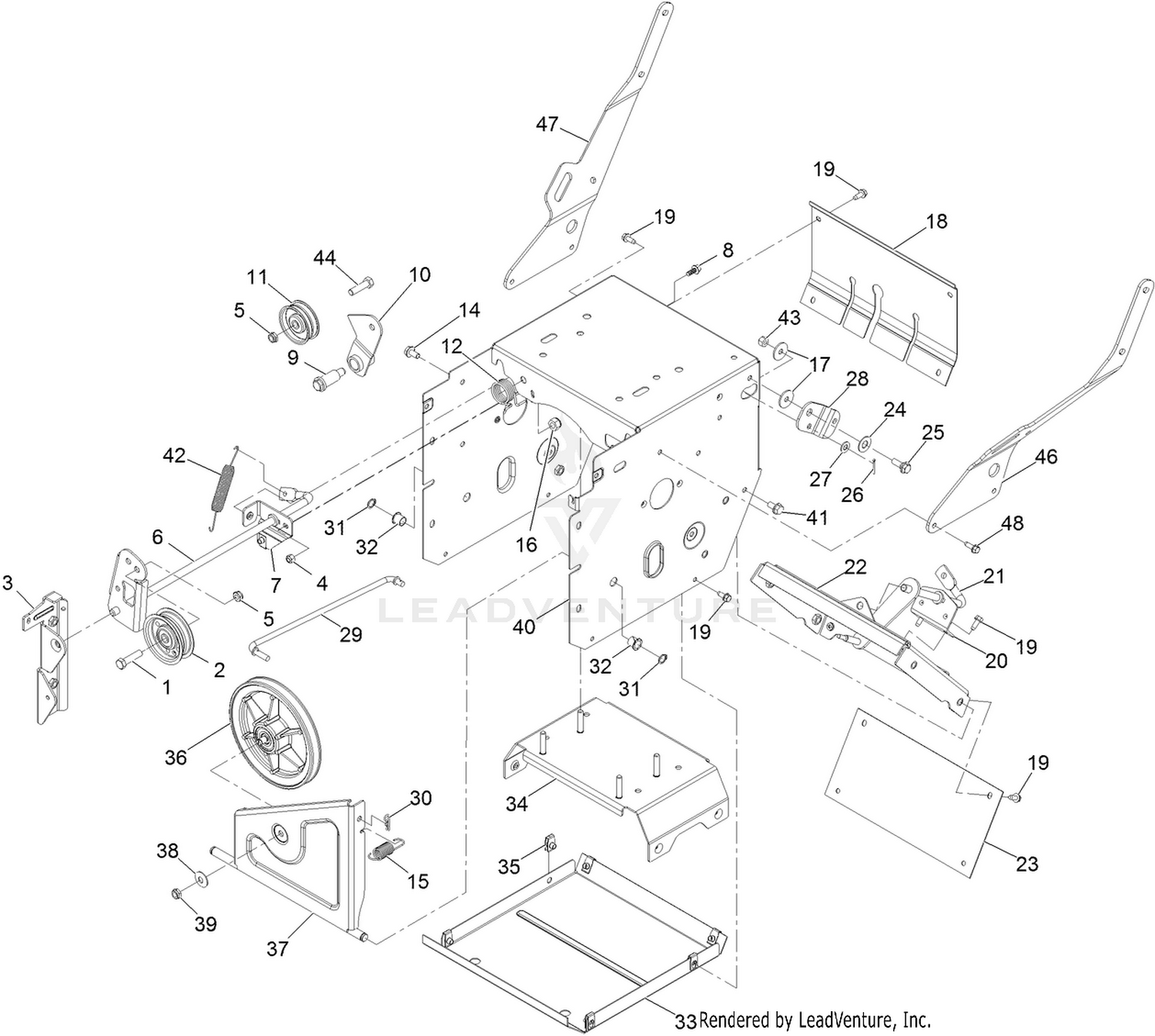

| Ref | Part Number | Description |
|---|
| 1 |
323-8 |
SCREW-HH Price: $2.99 |
| 2 |
92-7104 |
PULLEY-IDLER Price: $27.99 |
| 3 |
136-7112 |
BRACKET-IMPELLER, IDLER Price: $20.99 |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 5 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.89 |
| 6 |
107-3838-03 |
IMPELLER CLUTCH ASM Price: $37.99 |
| 7 |
136-7181 |
BRACKET-IMPELLER, CLUTCH Price: $5.89 |
| 8 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 10 |
108-5058 |
ARM-IDLER, TRACTION Price: $32.99 |
| 11 |
3-4244 |
PULLEY-IDLER Price: $24.99 |
| 12 |
108-7332 |
SPRING-TORSION Price: $6.09 |
| 14 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 15 |
107-1003 |
SPRING-EXTENSION Price: $4.89 |
| 16 |
3296-76 |
NUT-LOCK, NI Price: $4.39 |
| 17 |
5-4460 |
WASHER-PIVOT Price: $7.09 |
| 18 |
108-0022-03 |
COVER-UPPER Price: $14.99 |
| 19 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 20 |
136-7114 |
BRACKET-SHIFT, ROD Price: $5.89 |
| 21 |
136-7106 |
TRACTION LEVER ASM Price: $46.99 |
| 22 |
108-0026-03 |
SHIFT PLATE ASM Price: $46.99 |
| 23 |
106-7345-03 |
COVER-LOWER Price: $9.99 |
| 24 |
25-5640 |
WASHER Price: $1.59 |
| 25 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
| 26 |
3272-4 |
PIN-COTTER Price: $0.29 |
| 27 |
3256-23 |
WASHER-PLAIN Price: $1.99 |
| 28 |
136-7110 |
BELLCRANK Price: $5.89 |
| 29 |
136-7101 |
LINK-SPEED, CONTROL Price: $13.99 |
| 30 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 31 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 32 |
256-257 |
BUSHING-NYLINER Price: $3.39 |
| 33 |
106-7330-03 |
PAN-BOTTOM Price: $22.99 |
| 34 |
116-7678 |
BRACE-FRAME Price: $52.99 |
| 35 |
107069 |
CLIP Price: $2.29 |
| 36 |
136-7319 |
PULLEY-TRACTION ASM Price: $98.99 |
| 37 |
136-7118 |
BRACKET-WHEEL, FRICTION Price: $74.99 |
| 38 |
3290-340 |
WASHER-BELLEVILLE Price: $7.19 |
| 39 |
3296-5 |
NUT-HEX Price: $3.09 |
| 40 |
120-9832-03 |
TRACTION FRAME ASM Price: $166.99 |
| 41 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 42 |
136-7115 |
SPRING-EXTENSION Price: $11.99 |
| 43 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 44 |
323-29 |
SCREW-HH Price: $0.49 |
| 46 |
116-7672-03 |
BRACE-HANDLE, LH Price: $39.99 |
| 47 |
116-7673-03 |
BRACE-HANDLE, RH Price: $39.99 |
