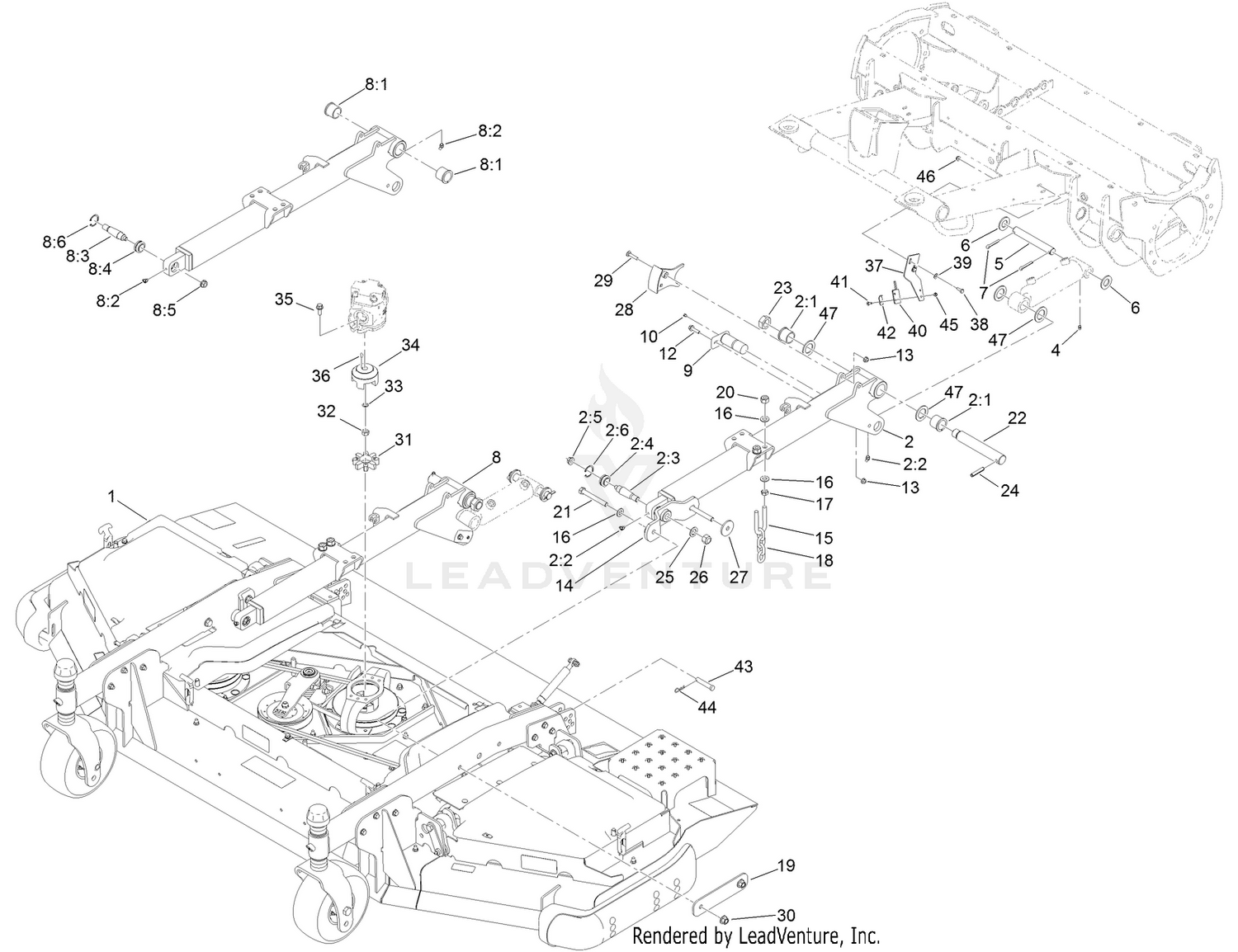

| Ref | Part Number | Description |
|---|
| 1 |
130-9200 |
FRONT CENTER DECK ASM Price: Call Us |
| 2 |
139-7837 |
LH LIFT ARM ASM This part replaces 110-5962. Price: $719.41 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 6 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 7 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 8 |
110-5966 |
RH FRONT LIFT ARM ASM Price: $666.42 |
| 9 |
125-1912 |
PIN-PIVOT Price: $38.97 |
| 10 |
1-811010 |
PLUG Price: $4.89 |
| 12 |
119-4036 |
SCREW-HHF Price: $0.53 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
115-5442-01 |
SUPPORT-HUB Price: $151.03 |
| 15 |
104-0108 |
U-BOLT Price: $7.10 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
3218-5 |
NUT-JAM Price: $0.27 |
| 18 |
95-6231 |
CHAIN-HOC Price: $14.75 |
| 19 |
130-9233-01 |
PLATE-REINFORCING Price: $9.54 |
| 20 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 21 |
325-17 |
SCREW-HH Price: $2.90 |
| 22 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 23 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 24 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 25 |
86-1440 |
WASHER-FLAT Price: $2.10 |
| 26 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 27 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 28 |
139-7770 |
TRIGGER-SENSOR This part replaces 114-0738-01. Price: $33.28 |
| 29 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 30 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 31 |
104-3542 |
SPIDER Price: $67.38 |
| 32 |
110-8815 |
NUT-HEX Price: $1.90 |
| 33 |
112-6957 |
WASHER-HARDENED Price: $1.37 |
| 34 |
104-3541 |
HUB-SPIDER Price: $130.30 |
| 35 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 36 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 37 |
114-5671 |
BRACKET-SENSOR Price: $23.53 |
| 38 |
321-4 |
SCREW-HH Price: $0.99 |
| 39 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 40 |
106-9288 |
SENSOR-PROXIMITY, FERROUS Price: $126.57 |
| 41 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 42 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 43 |
92-2743 |
PIN-CLEVIS Price: $6.00 |
| 44 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 45 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 46 |
104-7201 |
NUT-HF Price: $0.69 |
