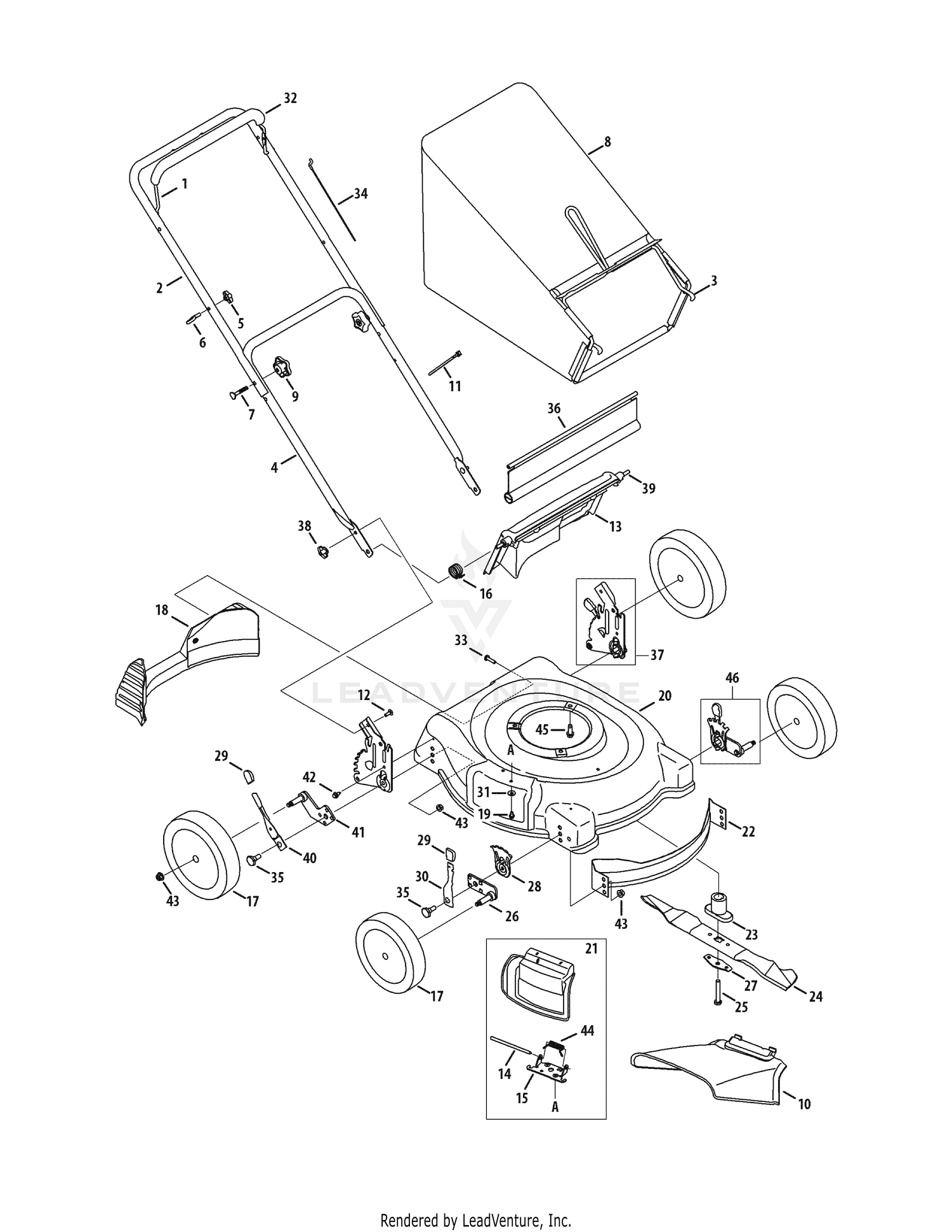

| Ref | Part Number | Description |
|---|
| 1 |
747-1161A-0637 |
Blade Control Handle Price: $11.81 |
| 2 |
749-1092A-0637 |
Upper Handle Price: $42.79 |
| 3 |
747-04080A |
Grass Catcher Frame Price: $52.39 |
| 4 |
749-0928A-0637 |
Lower Handle Price: $29.67 |
| 5 |
720-0279 |
Wing Nut Price: $3.93 |
| 6 |
710-1205 |
Rope Guide Price: $3.53 |
| 7 |
710-1174 |
Carriage Bolt ,5/16-18 x 2 Price: $6.28 |
| 8 |
964-04007A |
Grass Bag This part replaces 964-04011. Price: $114.46 |
| 9 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 10 |
731-04177 |
Side Chute Price: $16.88 |
| 12 |
710-0703 |
Carriage Bolt ,1/4-20 Price: $3.66 |
| 13 |
731-06847 |
Rear Discharge Door Price: $24.94 |
| 14 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 15 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 16 |
732-04090A |
Torsion Spring - RH Price: $6.66 |
| 17 |
731-06999 |
HUBCAP Not Available Price: |
| 17 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 18 |
731-04150C |
REAR BAFFLE 21" Not Available Price: |
| 19 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 21 |
987-02055 |
Hinged Mulch Plug Assembly Price: $24.18 |
| 22 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 23 |
748-04082 |
Blade Adapter, 25mm x 2.15 Price: $34.90 |
| 24 |
942-0741A |
Blade This part replaces 942-0741. Price: $27.55 |
| 25 |
710-1257 |
Hex Screw , 3/8-24 x 2.5 Price: $7.02 |
| 26 |
987-02337 |
Pivot Arm Assy RH (8" wheel) Price: $15.25 |
| 26 |
987-02338 |
Pivot Arm Assy LH (8" wheel) Price: $15.25 |
| 27 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 28 |
787-01290A |
Front Adjustment Plate Price: $10.58 |
| 29 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 30 |
94832 |
Spring Lever Assembly Price: $9.48 |
| 31 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 33 |
710-1241 |
Screw, 1/4-15 x 1.000 Price: $5.77 |
| 34 |
946-1130 |
Control Cable 40" This part replaces 746-1130. Price: $16.01 |
| 35 |
738-04266 |
Shoulder Screw Price: $5.48 |
| 36 |
731-05642A |
Trail shield Price: $25.03 |
| 37 |
987-02270A |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 37 |
987-02271A |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 38 |
712-0397A |
WING NUT This part replaces 912-0397. Price: $3.71 |
| 39 |
747-04587 |
Rear Door Pivot Rod Price: $13.38 |
| 40 |
732-04175 |
Spring Lever Price: $10.96 |
| 41 |
987-02332 |
Pivot Arm Assembly - LH Price: $15.85 |
| 41 |
987-02333 |
PIVOT ARM ASSEMBLY (RH) Not Available Price: |
| 42 |
710-1652 |
AB Screw Price: $3.86 |
| 43 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 44 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 45 |
710-0654A |
TT Sems Screw, 3/8-16 x 1.0 Price: $3.75 |
| 46 |
987-02075B |
Ht. Adj. Assy. Front LH (8" wheel) Not Available Price: |
